Remove the drill bit from the drill pipe

Description

Remove the drill bit from the drill pipe

First. Summary

The disassembly of the traditional tapered connecting drill is mainly to use the hammer to hit the drill body to loosen it and remove the drill bit.

This method is not only inefficient, but also easy to remove during the disassembly process. Cause unnecessary damage to the drill tool.

In order to solve this problem,Superdrill Equipment Co., Ltd. invented and produced a simple cone continuous unloading tool,

which has the following advantages compared with the traditional unloading method:

1. Easy to carry and simple to operate Reliable, greatly improving work efficiency.

2. Effectively protect the original shape and performance of the drill bit and the rod, extend the service life of the drill bit, and save the use cost of the drill bit.

3. This unloader makes the disassembly process of the drill bit more secure and improves the safety of the operator.

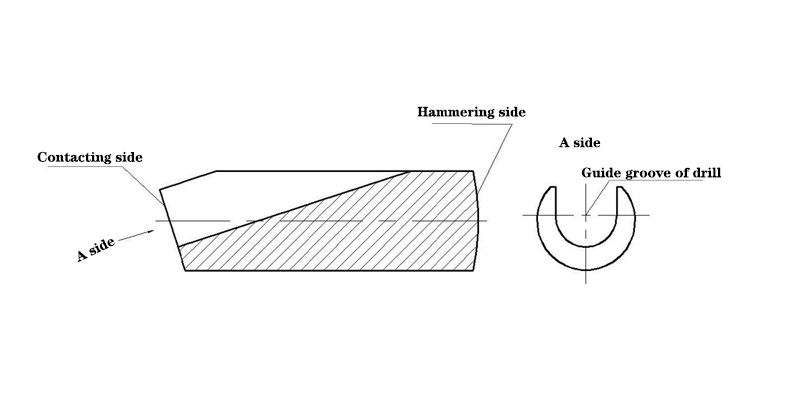

Second.The structural principle of the knock off tool .

Third. Operating Instructions

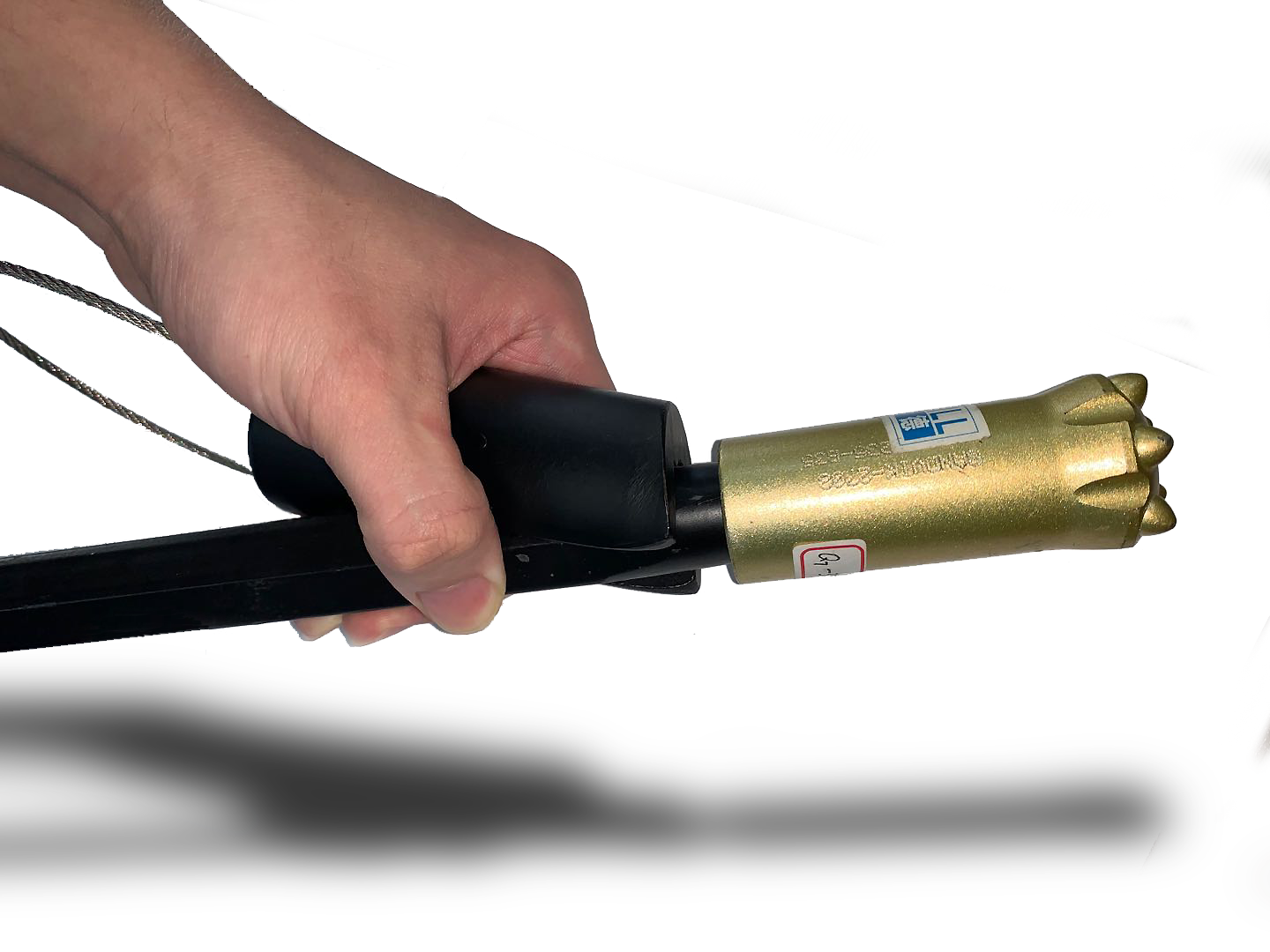

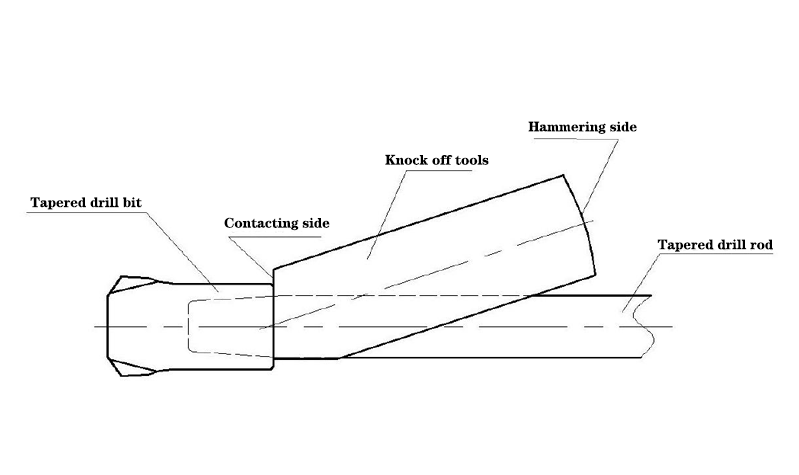

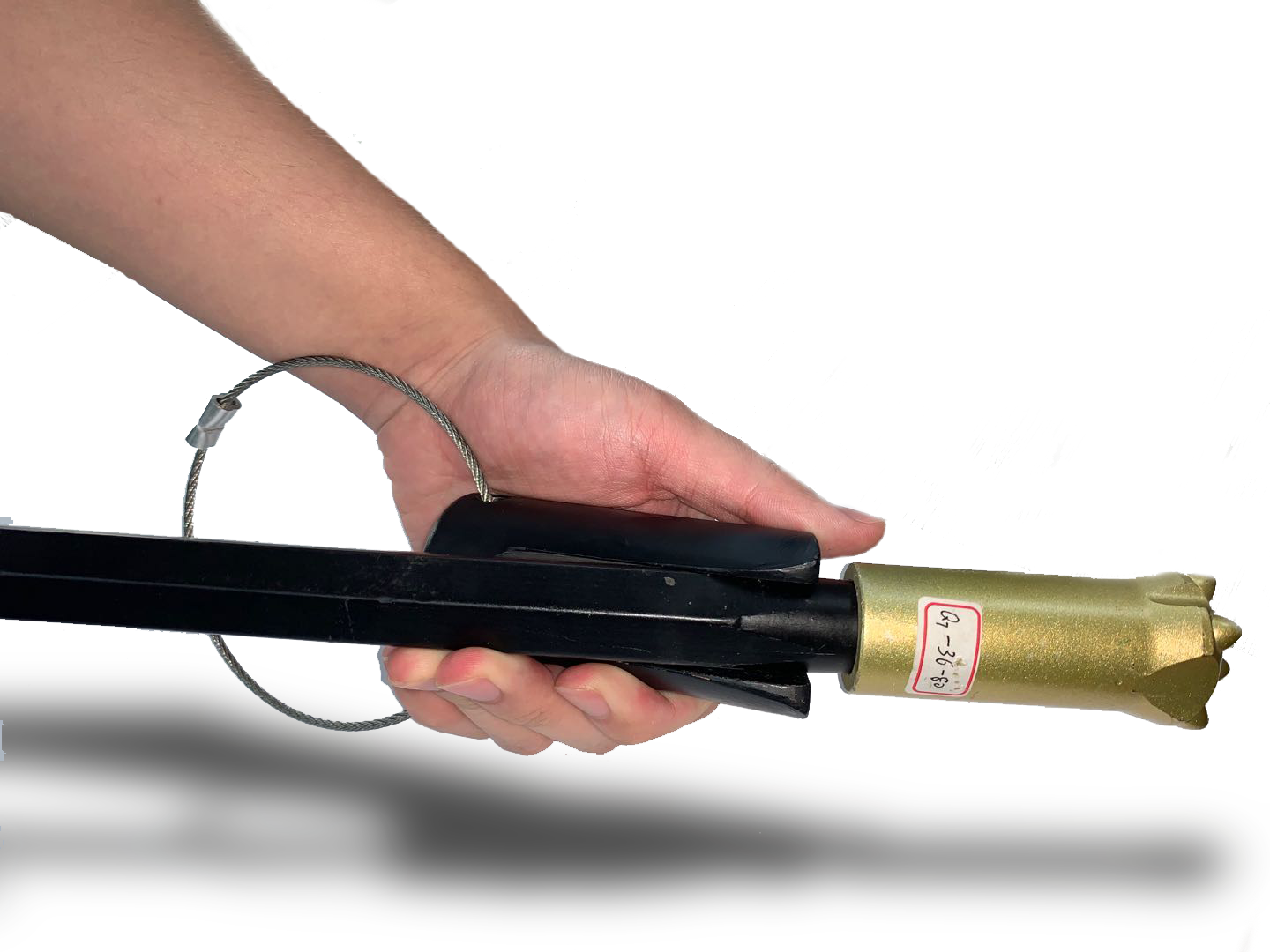

Fix the drill tool to be removed firmly, put the drill rod into the guide groove of the drill rod of the knock off tool, make the contacting side of the tool close to the end side of the removed drill bit trousers, and hit hard with a hammer Just hammer the end side of the unloader .
