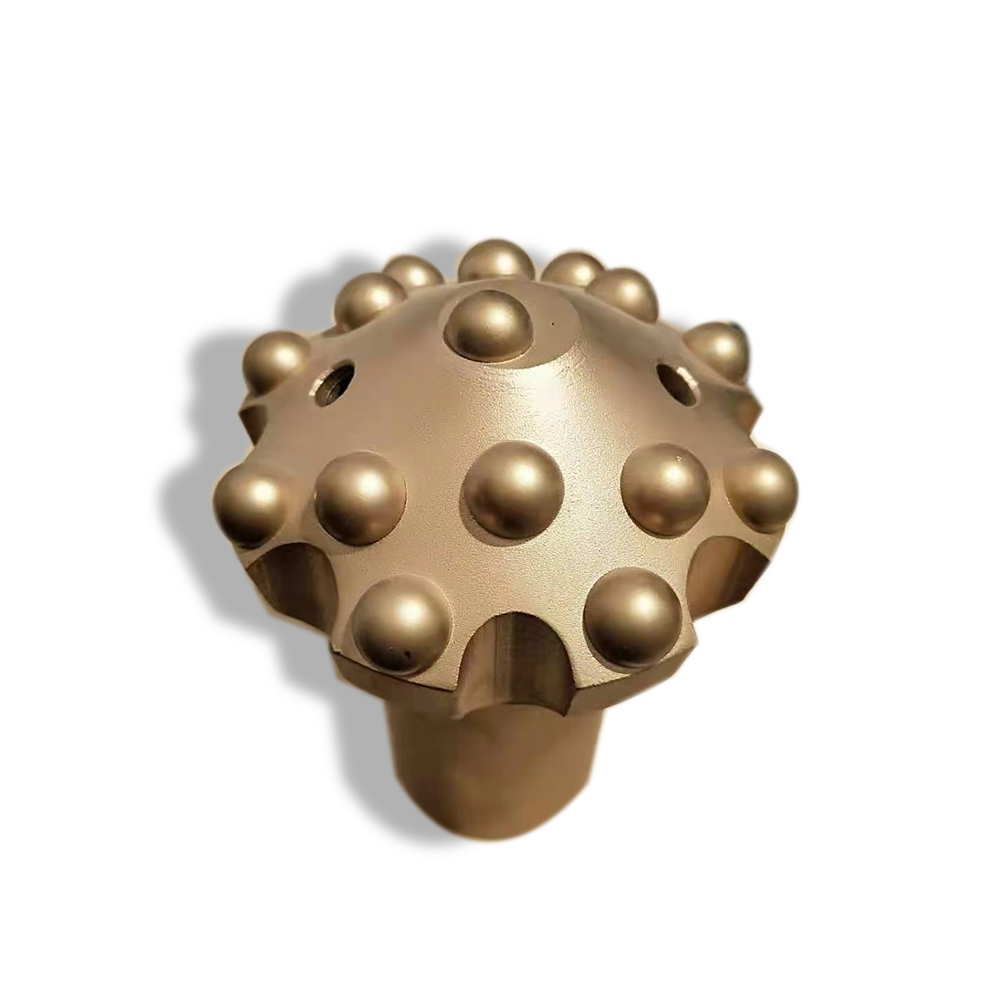

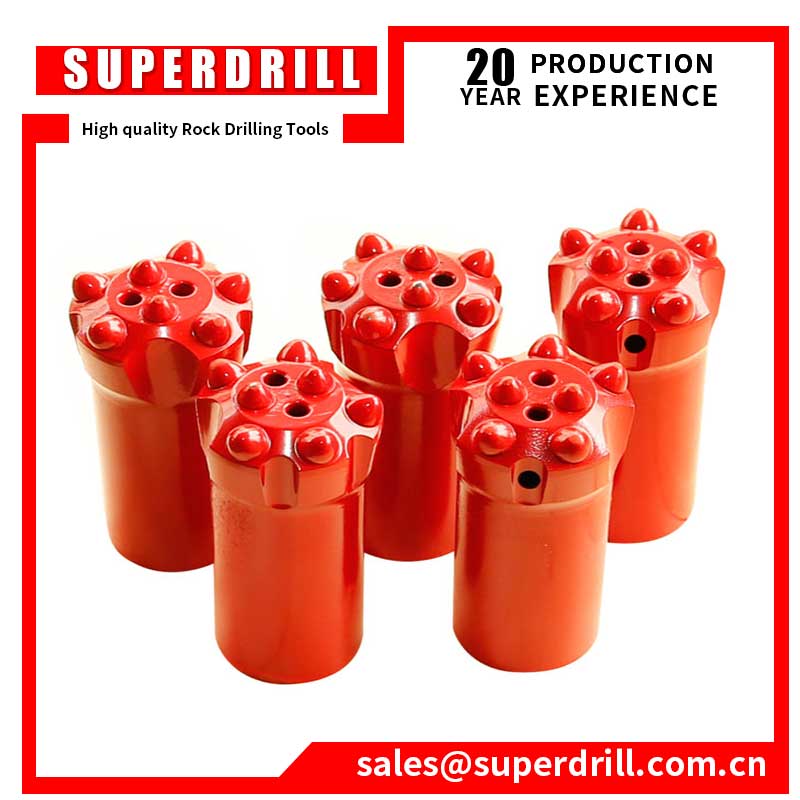

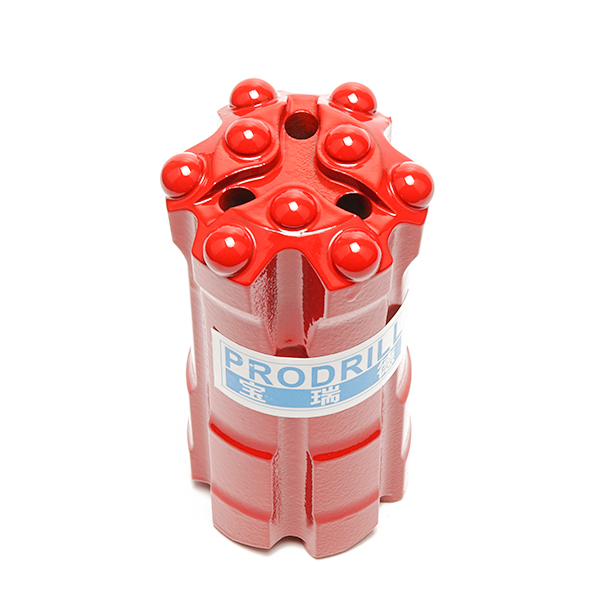

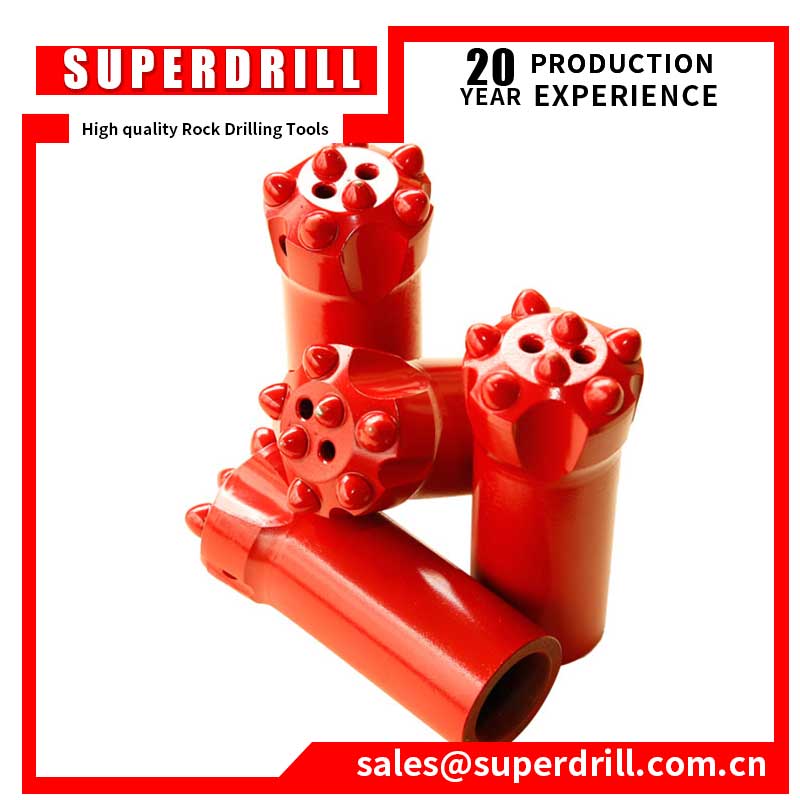

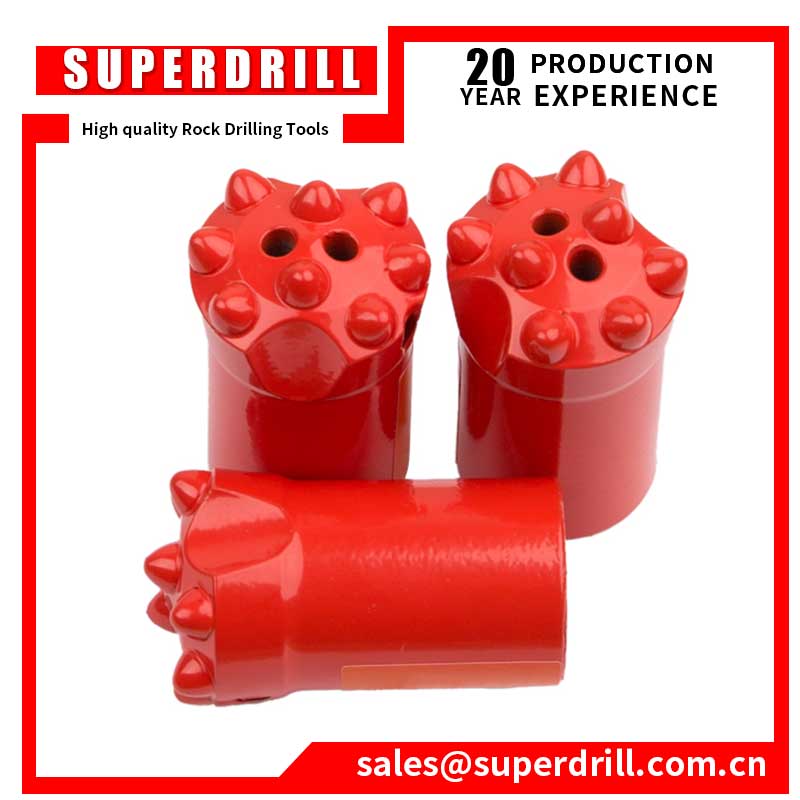

32mm and 34mm Tungsten Carbide Taper Drill Button Bit for Stone Quarrying

32mm and 34mm Tungsten Carbide Taper Drill Button Bit for Stone Quarrying

Product Item：60110681848

Model Number:32mm 34mm 36mm 38mm 40mm 42mm etc...

Type:Center Drill Bit

Material:Tungsten Carbide

Use:Masonry Drilling

Category：Tapered Drill Bit

Description

Product Characteristic:
1.Button bit taper angle: 4°,4°46″,6°,7°,11°,12°
2.Length: 50/55/71/80 mm
3.Diameter: 20-45 mm
4.Button bit shape: spherical/parabolic
5.Socket inside diameter: 15/19/22/25(mm)
6.Material and process: high quality alloy steel bar and tungsten carbides, through heat treatment

Application:
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Product Feature:
We can design and manufacture according to customers' samples or drawings of the Bit Dia., No. of air / water holes, carbide button shape and the face shape.
Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

Comparing with Tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency.
According to the tungsten carbide insert, tapered button bits can be divided into the types of hemispherical, conical andparabolic button, etc.

Description	Diameter	Length	No. of buttons	Weight
	mm	mm		kg
button bit	26	50	5	0.2
Taper:a=4°46" 6°,7°,11°,12°	27	50	5 6	0.2
Socket inside Dia. D=19, 22, 25	28	50	4 5	0.2
	29	50	4	0.2
	30	50 80	4 5 6 7	0.2 0.3
	32	50 55 71 80	5 6 7 8	0.2 0.22 0.3
	33	50 55 71 80	6 7 8 9	0.2 0.3 0.36
	34	50 55	6 7 9	0.22 0.3
	35	55 71 80	7 8	0.22 0.3 0.37
	36	50 55	4 5 6 7	0.3 0.35
	37	55	7	0.3
	38	50 55	4 6 7	0.25 0.35
	40	50 55	4 6 7	0.35
	41	50 55 71	7	0.35
	42	50	4 5	0.4
	45	50 55 71	6 7	0.5

Description	Diameter	Length	Weight
	mm	mm	kg
cross bit	24	71 80	0.18
Taper:a=6°,7°,11°,12°	26	71 80	0.19
Socket inside Dia. D=19, 22, 25	28	71 80	0.19
	29	71 80	0.2
	30	50 67 71 80	0.3
	32	50 67 71 80	0.3
	33	71 80	0.32
	34	67 71 80	0.34
	35	67 71 80	0.35
	36	71 80	0.36
	38	67 71 80	0.42
	40	71 80	0.43
	41	71	0.45
	42	69 80	0.46
	44	80	0.47
	45	80	0.5
	46	80	0.51
	48	80	0.53
	50	80	0.6
	55	85	0.7

Description	Diameter	Length	Weight
	mm	mm	kg
chisel	20	65	0.15
Taper:a=4°, 6°,7°,11°,12°	22	65	0.15
Socket inside Dia. D=15,19, 22, 25	25	69	0.15
	28	60	0.2
	30	55 80	0.2
	32	55 64 71 80	0.25
	34	71 80	0.29
	36	71 80	0.35
	38	71 80	0.4
	40	71 80	0.42
	42	71 80	0.42
	45	71 80	0.45
