Description

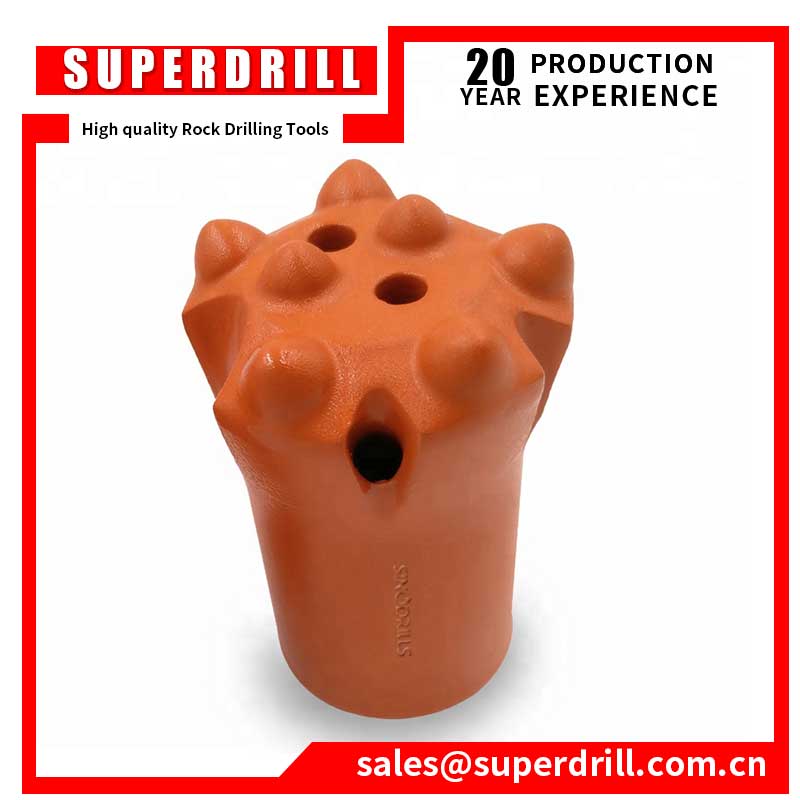

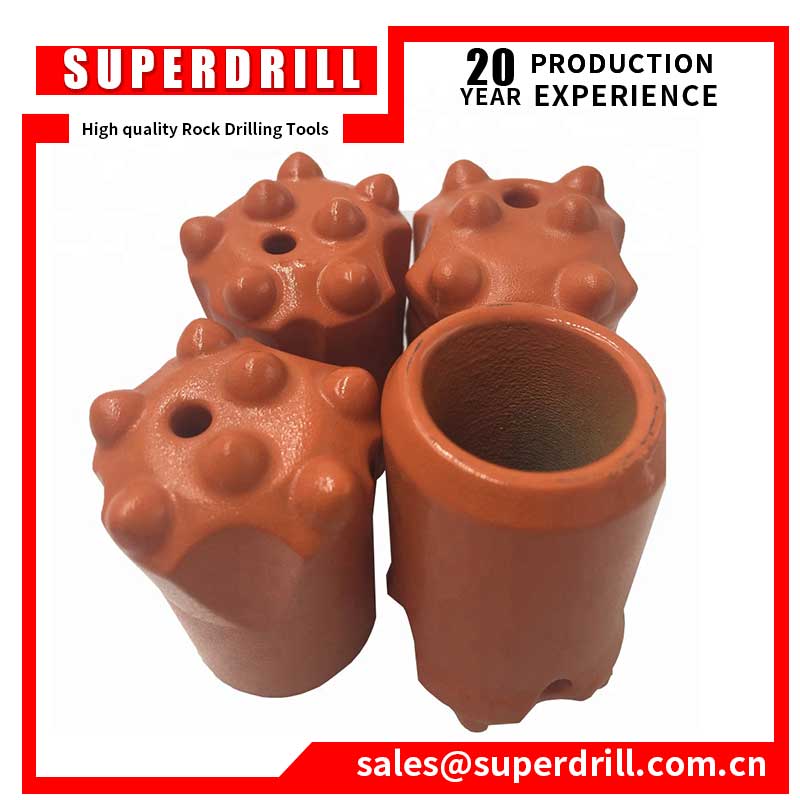

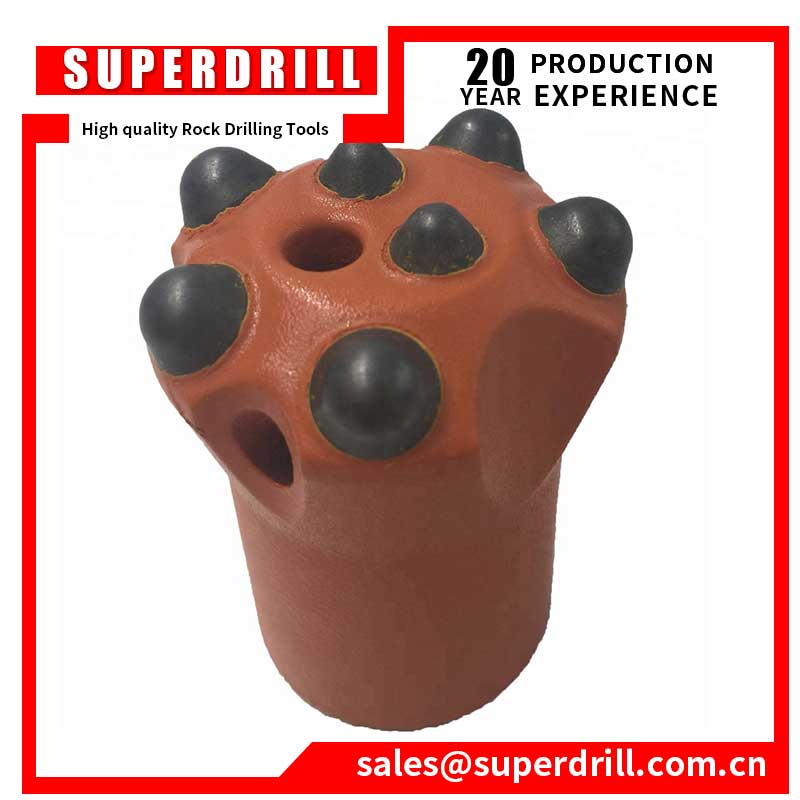

34mm tapered drill button bits for coal mining bit
Adavantage :
1. Tugestun Carbide , same as Boart Loner .
2. Hot-Press .
3. Long serve life .
Tapered bits, especially tapered button bits are the most popular tapered drill bits with a wide selection of head diameters from 26mm to 48mm. With carbide buttons hot pressed on the bit skirts, tapered button bits have a good drilling performance and are excellent in longevity.
We manufactuer various tapered button bits in different degrees as below:
Bit diameter: 26mm to 60mm;
Tapered degree: 4°46’, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Carbide type: Chisel type, Cross type, Button type.
For 22 mm (7/8") rod. 11° taper. Short Skirt. |
||||||||
Diameter |
Buttons |
Flushing hole |
Length |
Part Number |
Weight |
|||
mm |
inch |
Gauge |
Front |
Side |
Front |
mm |
|
Kg |
32 |
1 1/4 |
3x8 |
2x7 |
1 |
1 |
50 |
TB32H22S11C321 |
0.22 |
32 |
1 1/4 |
4x7 |
2x7 |
1 |
1 |
50 |
TB32H22S11C421 |
0.29 |
32 |
1 1/4 |
5x7 |
2x7 |
1 |
1 |
50 |
TB32H22S11C521 |
0.35 |
32 |
1 1/4 |
6x7 |
2x7 |
1 |
1 |
50 |
TB32H22S11C621 |
0.35 |
32 |
1 1/4 |
6x7 |
2x7 |
1 |
2 |
50 |
TB32H22S11C622 |
0.35 |
34 |
1 11/32 |
3x8 |
2x7 |
1 |
1 |
50 |
TB34H22S11C321 |
0.39 |
34 |
1 11/32 |
4x8 |
2x7 |
1 |
2 |
50 |
TB34H22S11C422 |
0.39 |
34 |
1 11/32 |
5x7 |
2x7 |
1 |
1 |
50 |
TB34H22S11C521 |
0.40 |
35 |
1 3/8 |
6x7 |
2x7 |
1 |
2 |
50 |
TB35H22S11C622 |
0.41 |
36 |
1 27/64 |
3x9 |
1x8 |
1 |
1 |
50 |
TB36H22S11C311 |
0.42 |
36 |
1 27/64 |
3x9 |
2x7 |
1 |
1 |
50 |
TB36H22S11C321 |
0.42 |
36 |
1 27/64 |
4x8 |
2x7 |
1 |
1 |
50 |
TB36H22S11C421 |
0.42 |
36 |
1 27/64 |
4x8 |
2x7 |
1 |
2 |
50 |
TB36H22S11C422 |
0.45 |
36 |
1 27/64 |
5x8 |
2x7 |
1 |
1 |
50 |
TB36H22S11C521 |
0.45 |
36 |
1 27/64 |
5x8 |
2x7 |
1 |
2 |
50 |
TB36H22S11C522 |
0.45 |
38 |
1 1/2 |
3x9 |
1x9 |
1 |
1 |
50 |
TB38H22S11C311 |
0.45 |
38 |
1 1/2 |
3x9 |
2x7 |
1 |
1 |
50 |
TB38H22S11C321 |
0.45 |
38 |
1 1/2 |
5x9 |
2x7 |
1 |
1 |
50 |
TB38H22S11C521 |
0.45 |
38 |
1 1/2 |
5x9 |
2x7 |
1 |
2 |
50 |
TB38H22S11C522 |
0.45 |
40 |
1 37/64 |
3x9 |
1x9 |
1 |
1 |
50 |
TB40H22S11C311 |
0.48 |
40 |
1 37/64 |
3x9 |
2x8 |
1 |
1 |
50 |
TB40H22S11C321 |
0.48 |
40 |
1 37/64 |
5x9 |
2x8 |
1 |
1 |
50 |
TB40H22S11C521 |
0.48 |
40 |
1 37/64 |
5x9 |
2x8 |
1 |
2 |
50 |
TB40H22S11C522 |
0.48 |
41 |
15/8 |
5x9 |
2x8 |
1 |
2 |
50 |
TB41H22S11C522 |
0.48 |
