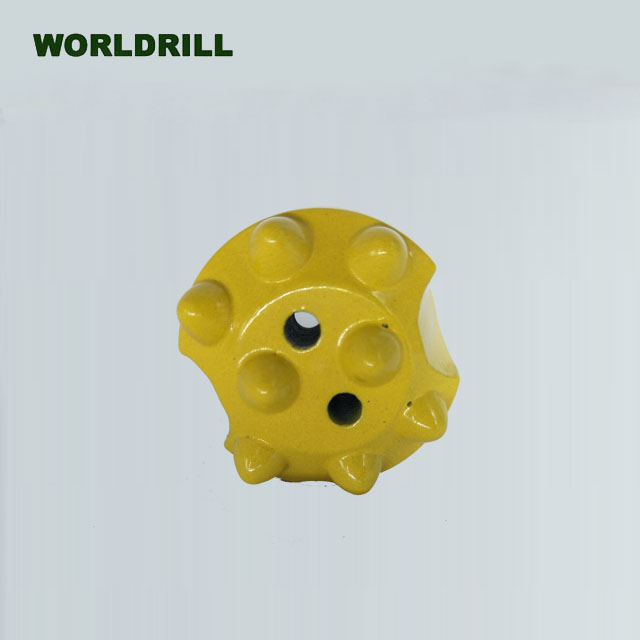

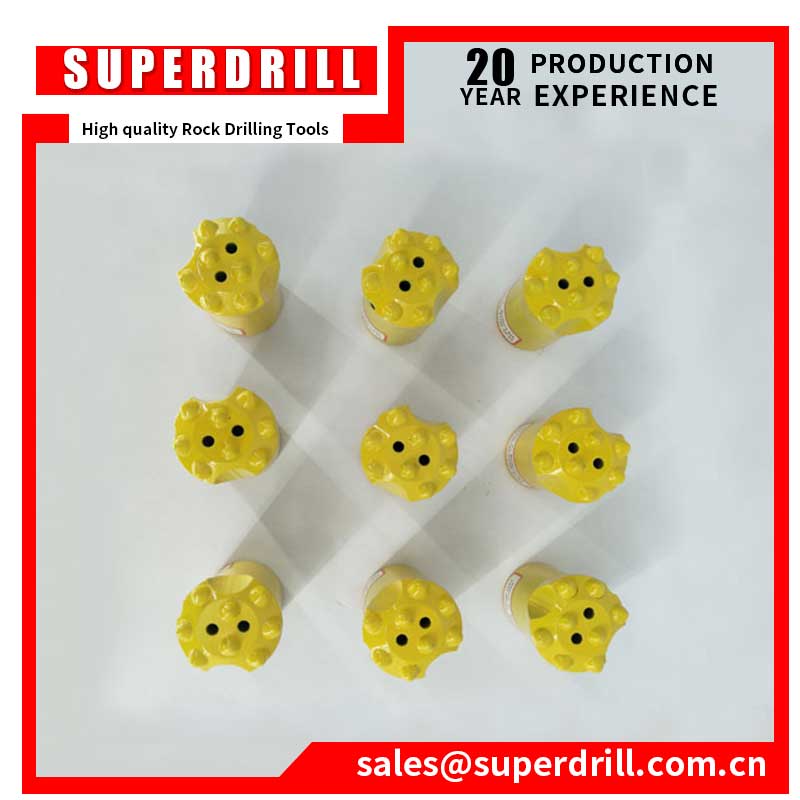

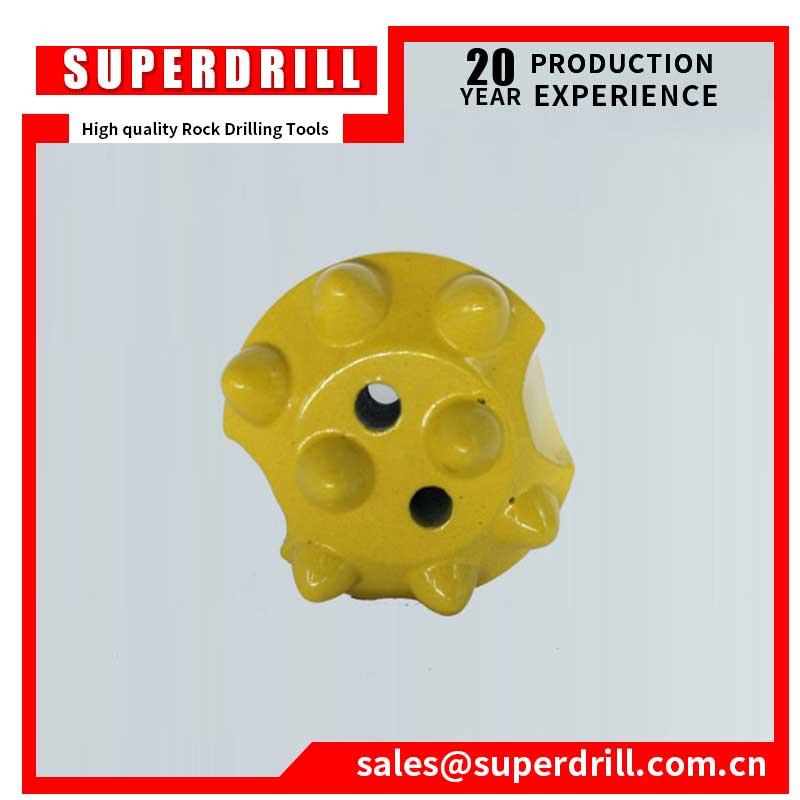

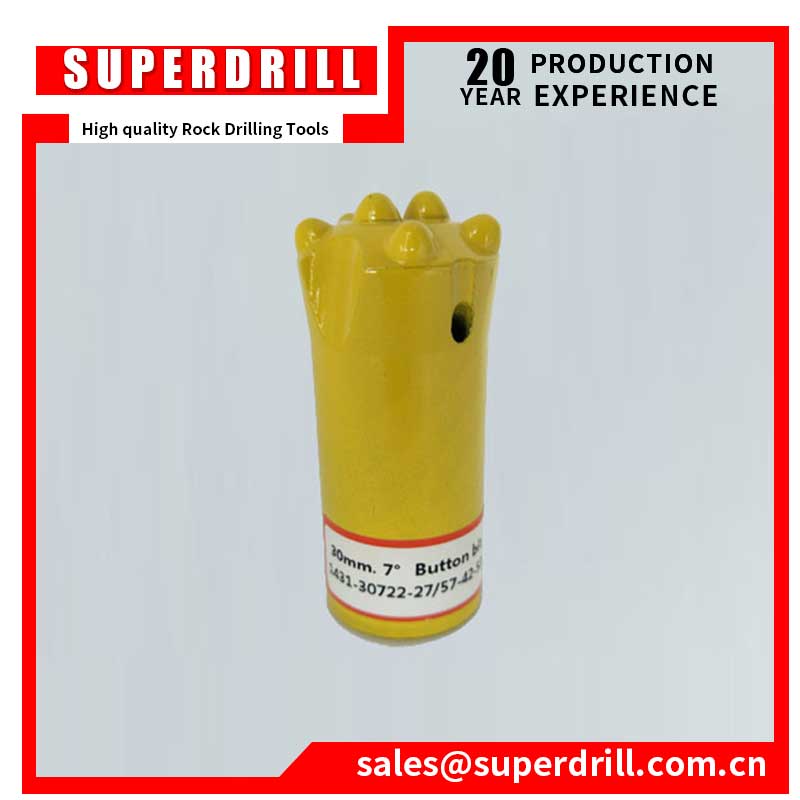

High Quality Taper rock drill 38mm 7 button bits

High Quality Taper rock drill 38mm 7 button bits

Product Item：60715393801

Model Number:button rock drill bits

Type:rock drill button bits

Material:Carbon Steel

Use:Ore Mining

Category：Tapered Drill Bit

Description

Product Description

second hand well drilling drill bit

Details introduction

Serial Number	Failure Content	Causes of failure	Prevention or Solution
1	It fractures in the taper thread area of the top sub.	Drill pipe thread and the top sub thread do not match with each other	1. Check if there is burr and flash on the drill pipe thread. File the burr and the flash down. 2. Check if the drill pipe and the top sub thread are well matched with each other before connecting them. 3. Check if the drill pipe and the top sub threead can be fit closely after they are connected.
2	The external cylinder cracks.	The external cylinder is worn out excessively when normally used, and after the normal use dimensiton is exceeded, it fractures normally.	Check the using worn condition of the external cylinder frequently, if the normal use dimension has been exceeded (Please see the specific statement in this manual), and replace the external cylinder decisively and accordingly.
		Beaten by larger external force or grinded by machines.	It is forbidden to beat the external cylinder with strong external force, such as a sledge hammer,or to be grinded by machines.
		Improper torque is forced to applied when it is disassembled or assembled.	When it is disassembled with a chain tongs,be sure to apply proper torque and use sharp chain tongs.
		Welding is carried out on the external cylinder.	Welding on the external cylinder is forbidden.
3	Drive chuck fractures.	Applied torque and axial compression are much too large.	Reduce propulsion and cornering force.
3	Drive chuck fractures.	The drive chuck is worn out excessively when normally used, and after the normal use dimensiton is exceeded, it fractures normally.	Check the using worn condition of the drive chuck frequently, if the normal use dimension has been exceeded (Please see the specific statement in this manual), and replace the drive chuck decisively and accordingly.
4	The hammer does not work.	Drill pipe thread and the top sub thread do not match with each other	Select correct drill bit models to match the hammer model.
		Internal parts are damaged.	Dissemble the hammer, examine if the spare parts are damaged including the piston,the air distributor, the internal cylinder and the guided sleeve. Purchase new spare parts to replace the old ones.
		The external cylinder is deformed to become a ellipse caused by wedling, burning, beating and grinded, which leads to the internal parts and the external bylinder are not contentric, as a result, the hammer sticks and fails to work.	Dissemble the hammer, examine if the spare parts are damaged including the piston,the air distributor, the internal cylinder and the guided sleeve. The external cylinder is forbidden to be welded, burned, grinded or beaten. Purchase new spare parts to replace the old ones.
		Foreign material enters the inside of the hammer, the hammer sticks and fails to work.	Dissemble the hammer, clear the blockage,and clean the internal spare parts. If the internal spare parts of the hammer are worn out or damaged by the foreign material,please replace the relevant spare parts decisively to avoid further damagement.
5	Pressure drop of the hammer appears.	The internal spare parts of the hammer are in lack of lubricant; under that condition, the parts rub against each other without lubricant and are damaged, thus pressure drop is caused.	Examine if there is lubricant inside the oiler. Add lubricant in time to make sure the internal spare parts of the hammer obtain full lubrication, and narrow the wear gap between parts.
5	Pressure drop of the hammer appears.	The fit gap of the internal spare parts of the hammer are increased gradually because of lasting use, which leads to air leakage and pressure drop.	When each spare part are worned out and the When using wear dimention of each spare part exceeds valid using dimention,changing a relevant part is recommended.
6	Drill bit falls into a well.	When assembling the drill bit into a hammer, the snap ring is missing.	Do remember to load the snap ring when assemble the drill bit.
		The snap ring model is not matched with the drill bit or the hammer model.	Do select the correct snap ring model matching with the drill bit model and the hammer model.
		The method or the direction of snap ring loading is incorrect.	Please install the snap ring correctly according to different models.
		The snap ring is used excessively, which leads to damage or fracture.	The snap ring is easy to damage. Please replace the old ones at proper time.
7	The drill bit, the drive chuck and the fall into a well together.	The drill tools rotate reversely inside the hole and the drive chuck is unscrewed , which leads to the drill bit and the drive chuck falling off as a whole.	The drill tools are forbidden to rotate reversely inside a hole.
7		The drive chuck thread is worn out.	The drive chuck thread is worn out.Examine the
8	The whole hammer falls into a well.	The top sub fractures.	Examine if the drill pipe thread and the top sub thread are matched and also fit closely when they are connected.
8	The whole hammer falls into a well.	It rotates reversely when drilling, and the top sub is unscrewed.	The drill tools are forbidden to rotate reversely inside a hole.

QL DTH hammers

Description	Thread connection	Outside diamete		Rec. hole size		Shank style	WorKing pressure		Length without bit, shoulder to shoulder		Weight without bit
Description	Thread connection	mm	inch	mm	inch	Shank style	bar	psi	mm	inch	kg	lbs
4"
QL 340 STD	API 2 3/8 Reg Pin	100	3 15/16	110-130	4 5/16 - 5 1/8	DHD 340	6 - 25	87-363	994	39 1/8	49	108
5"
QL 50 STD	API 3 1/2 Reg Pin	117	4 5/8	130 - 152	5 1/8 - 6	QL 50	6 - 24	87-350	1067	42	60	132
QL 50 HF	API 3 1/2 Reg Pin	117	4 5/8	130 - 152	5 1/8 - 6	QL 50	6 - 24	87-350	1067	42	60	132
QL 50 HC	API 3 1/2 Reg Pin	117	4 5/8	130 - 152	5 1/8 - 6	QL 50	6 - 24	87-350	1067	42	60	132
QL 55 QM	API 3 1/2 Reg Pin	124	4 7/8	134 - 152	5 1/4 - 6	QL 50	6 - 24	87-350	1067	42	74	163
6"
QL 60 STD	API 3 1/2 Reg Pin	138	5 7/16	152 - 191	6 - 7 1/2	QL 60	6 - 24	87-350	1132	44 9/16	91	20
QL 60 HF	API 3 1/2 Reg Pin	138	5 7/16	152 - 191	6 - 7 1/2	QL 60	6 - 24	87-350	1132	44 9/16	91	201
QL 60 HC	API 3 1/2 Reg Pin	138	5 7/16	152 - 191	6 - 7 1/2	QL 60	6 - 24	87-350	1132	44 9/16	91	201
QL 65 QM	API 3 1/2 Reg Pin	146	5 3/4	165 - 191	6 1/2 - 7 1/2	QL 60	6 - 24	87-350	1132	44 9/16	111	245
Aqua 60	API 3 1/2 Reg Pin	138	5 7/16	152 - 191	6 - 7 1/2	QL 60	6 - 24	87-350	1132	44 9/16	91	201
8"
QL 80 STD	API 4 1/2 Reg Pin	181	7 1/8	200 - 305	7 7/8 - 12	QL 80	6 - 24	87-350	1461	57 1/2	203	446
QL 80 STD	4 1/2 BECO Pin	181	7 1/8	200 - 305	7 7/8 - 12	QL 80	6 - 24	87-350	1461	57 1/2	203	446
QL 80 HF	API 4 1/2 Reg Pin	181	7 1/8	200 - 305	7 7/8 - 12	QL 80	6 - 24	87-350	1461	57 1/2	203	446
QL 80 HC	API 4 1/2 Reg Pin	181	7 1/8	200 - 305	7 7/8 - 12	QL 80	6 - 24	87-350	1478	58 3/16	203	446
QL 85 QM	API 4 1/2 Reg Pin	194	7 5/8	216 - 305	216 - 305	QL 80	6 - 24	87-350	1461	57 1/2	250	551
12"
QL 120 STD Slim	API 6 5/8 Reg Pin	273	10 3/4	311 - 560	12 1/4 - 22 1/16	QL 120	6 - 17	87-247	1837	72 5/16	571	1257
QL 120 STD	API 6 5/8 Reg Pin	285	11 1/4	311 - 560	12 1/4 - 22 1/16	QL 120	6 - 17	87-247	1837	72 5/16	650	1433
QL 120 STD BO	API 6 5/8 Reg Pin	285	11 1/4	311 - 560	12 1/4 - 22 1/16	QL 120	6 - 17	87-247	1837	72 5/16	650	1433
QL 120 HC	API 6 5/8 Reg Pin	285	11 1/4	311 - 560	12 1/4 - 22 1/16	QL 120	6 - 17	87-247	1913	75 5/16	636	1402
20"
QL 200	API 8 5/8 Reg Pin	396	15 9/16	440 - 660	17 15/16 - 26	QL 200	6 - 17	87-247	1670	65 3/4	1172	2584
QL 200 S	API 8 5/8 Reg Pin	396	15 9/16	710 - 914	28 - 36	QL 200 S	6 - 17	87-247	1831	72 1/16	1356	2990
