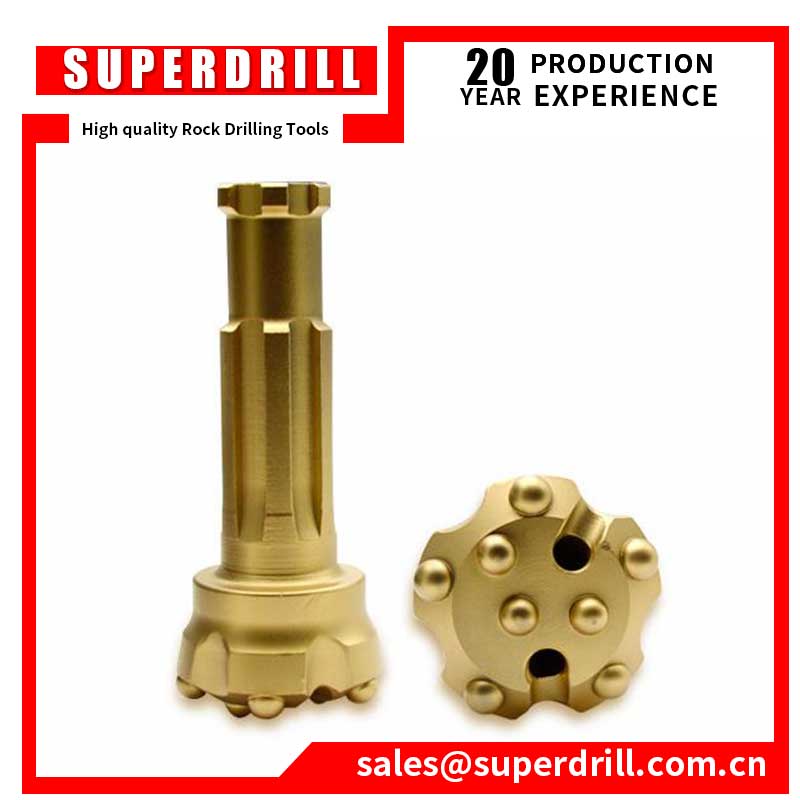

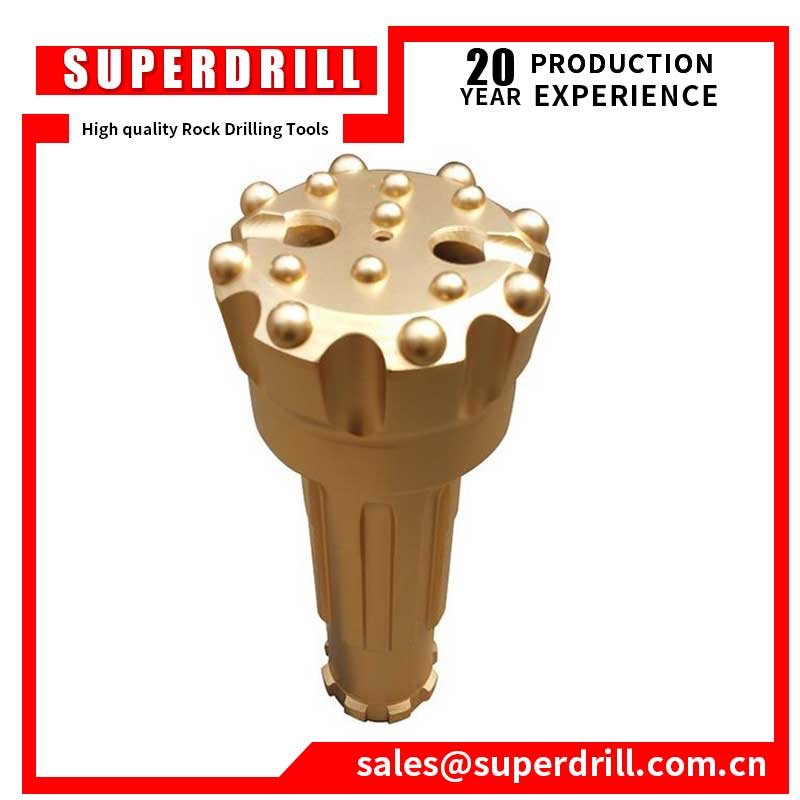

DTH Bit DHD3.5 -90 mm

HomeProductsDTH BitsDHD Shank DTH Bit DTH Bit DHD3.5 -90 mm
DTH Bit DHD3.5 -90 mm DTH Bit DHD3.5 -90 mm

DTH Bit DHD3.5 -90 mm

  • Product Item：DHD Shank DTH Drill Bit
  • Name: DHD Cemented Carbide DTH Drill Bit
  • Shank Type: DHD 3.5, DHD340A, DHD350R, DHD360, DHD380,
  • Bit Diameter: 85mm-305mm
  • Bit Face: Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.
  • Category：DHD Shank DTH Bit

    • Sent E-mail Inquiry

    Description

     DTH Bit DHD3.5 -90 mm

    Technical Parameters
    Model： Head diameter： Shank length： Spline： Port holes： Gauge buttons： Front buttons： Weight：
    DHD25A-76 76 174 6 2 φ14mm*6 φ11mm*4 3.2kg
    DHD35A-90 90 180 8 2 φ14mm*6 φ12mm*5 4.7kg
    DHD35A-100 100 180 8 2 φ14mm*6 φ12mm*5 4.8kg
    DHD340-108 108 209 8 2 φ16mm*7 φ14mm*6 7.85kg
    DHD340-130 130 209 8 2 φ16mm*8 φ14mm*4+φ13mm*3 8.88kg
    DHD350-140 140 260 8 2 φ18mm*7 φ15mm*4+φ14mm*3 15.8kg
    DHD350-152 152 260 8 2 φ18mm*8 φ14mm*8 17kg
    DHD350-178 178 260 8 2 φ18mm*8 φ16mm*6+φ14mm*5 20.4kg
    DHD360-154 154 308.5 8 2 φ18mm*8 φ16mm*4+φ15mm*4 22.5kg
    DHD360-178 178 308.5 8 2 φ18mm*8 φ16mm*6+φ15mm*5 26.1kg
    DHD360-203 203 308.5 8 2 φ18mm*10 φ16mm*8+φ15mm*6 30.4kg
    DHD380-203 203 350 10 2 φ18mm*10 φ18mm*4+φ16mm*10 48.5kg
    DHD380-254 254
