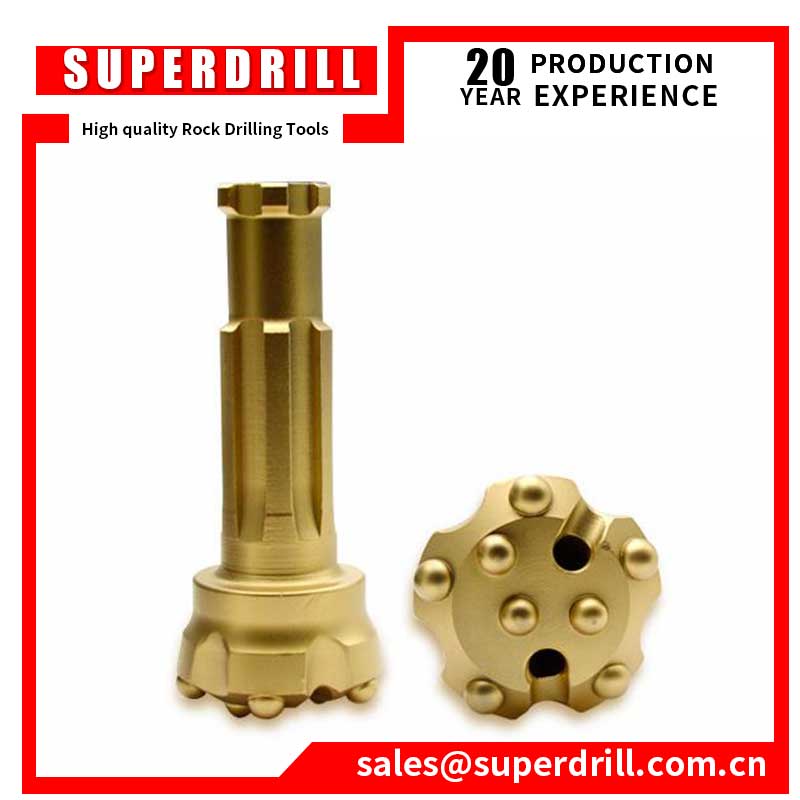

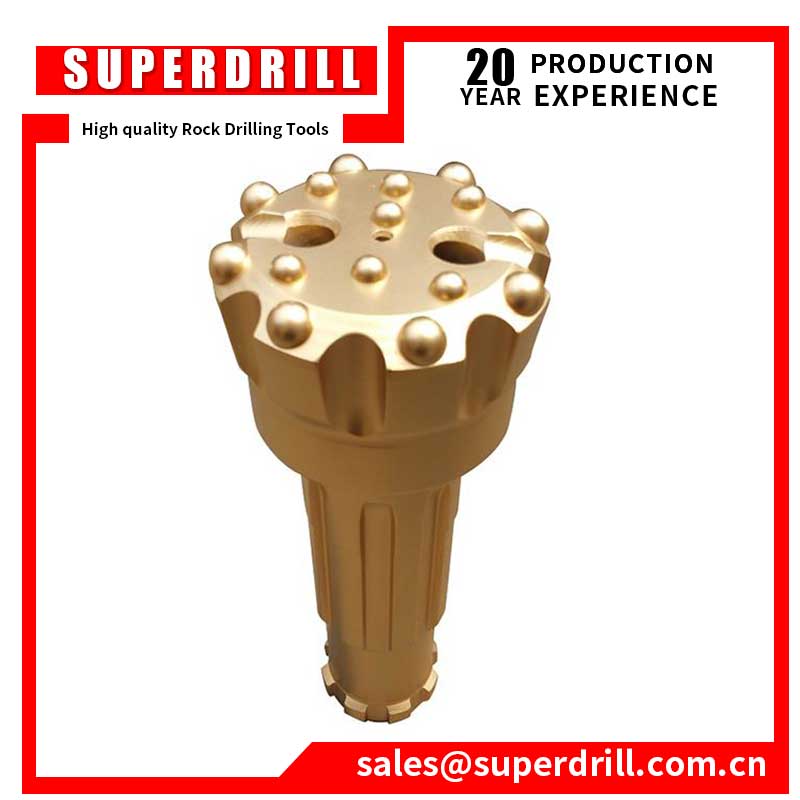

DHD Shank DTH Drill Bit

HomeProductsDTH BitsDHD Shank DTH BitDHD Shank DTH Drill Bit
DHD Shank DTH Drill BitDHD Shank DTH Drill Bit

DHD Shank DTH Drill Bit

  • Product Item:DHD Shank DTH Drill Bit
  • Name: DHD Cemented Carbide DTH Drill Bit
  • Shank Type: DHD 3.5, DHD340A, DHD350R, DHD360, DHD380,
  • Bit Diameter: 85mm-305mm
  • Bit Face: Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.
  • Category:DHD Shank DTH Bit

  • Sent E-mail Inquiry

    Description

    SUPERDRILL could supply the DHD Shank DTH Button Bit with cemented carbide buttons have very good wear-resistant. Buttons are strong in the mining process and could meet requirements of various rocks , and the service lifetime is very long.

    Button Shape:Domed, Spherical,Semi-ballistic,Ballistic.

    Bit Shank:DHD 3.5, DHD340A, DHD350R, DHD360, DHD380,

    Bit Diameter:85mm-305mm

    Bit Face Design:Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.

    Advantage:

    ● Our cemented carbide buttons have very good wear-resistant, can be ground time after time and have a longer service life. Using the specially processed formula, our carbide buttons can meet requirements of various rocks.

    ● Buttons are strong in the mining process, and the service lifetime is very long.

    ● A lot of grades can be chosen according to different applications.

    ● Exactly suggestion for the button used for soft, medium-hard, and hard rocks.

    ● Durable performance, wear resistant and withstanding large impacting force.

    ● Very good prices according to market situation.

    DHD Cemented Carbide DTH Drill Bit
    Shank Type Diameter in mm Air Holes No. Gauge Buttons Face Buttons Approx. Weight
    DHD3.5 85 2 6*13mm 4*12mm 4.2 KGS
    90 2 7*13mm 5*12mm 4.5 KGS
    95 2 7*13mm 6*12mm 4.8 KGS
    100 2 7*13mm 6*12mm 5 KGS
    105 2 8*12mm 7*12mm 5.5 KGS
    DHD340A 105 2 7*14mm 6*13mm 8.5 KGS
    110 2 7*14mm 6*13mm 8.8 KGS
    115 2 8*14mm 7*13mm 9.0 KGS
    120 2 8*16mm 7*13mm 9.9 KGS
    127 2 8*16mm 7*13mm 11.0 KGS
    DHD350R 135 2 8*16mm 8*13mm 15.0 KGS
    140 2 8*17mm 7*14mm 16.0 KGS
    146 2 8*18mm 7*14mm 17.0 KGS
    152 2 8*17mm 8*14mm 17.5 KGS
    165 2 8*18mm 9*16mm 18.5 KGS
    DHD360 152 2 8*17mm 8*14mm 22.0 KGS
    165 2 8*18mm 9*16mm 26.0 KGS
    171 2 8*18mm 10*16mm 27.0 KGS
    190 3 9*18mm 11*16mm 28.5 KGS
    203 3 9*18mm 12*16mm 29.5 KGS
    DHD380 203 2 9*18mm 12*16mm 40.0 KGS
    216 2 10*18mm 17*18mm 49.0 KGS
    241 2 10*18mm 17*18mm 64.0 KGS
    254 3 12*18mm 19*18mm 71.0 KGS
    292 3 12*18mm 30*18mm 85.0 KGS
    305 4 12*18mm 30*18mm 95.0 KGS
