Description

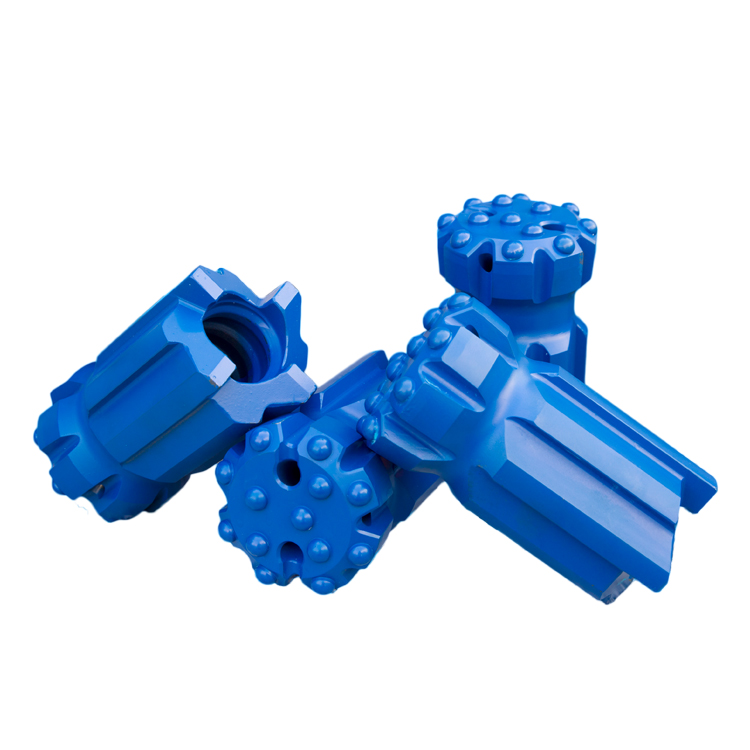

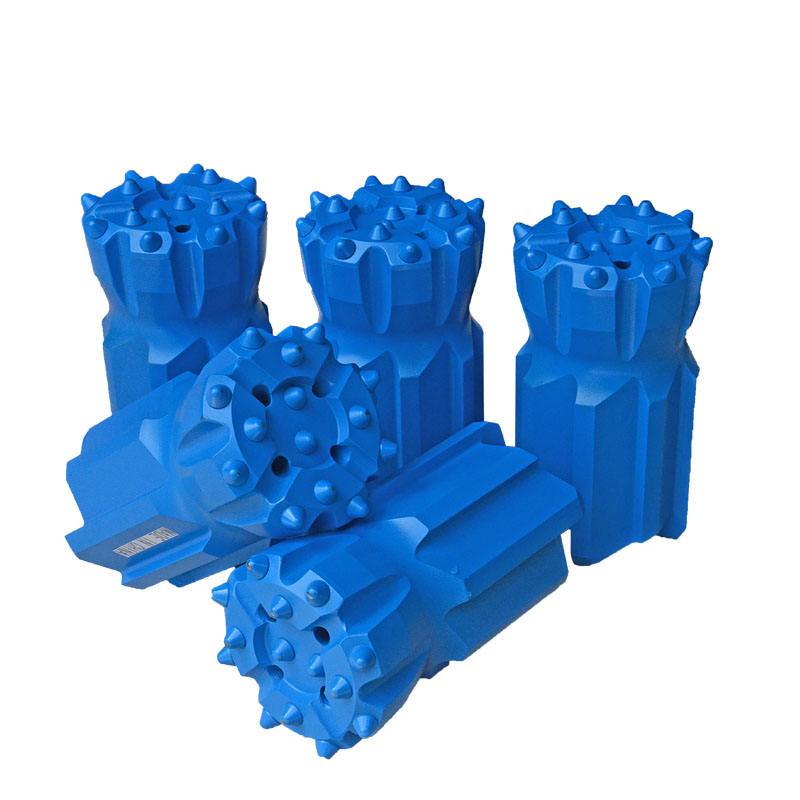

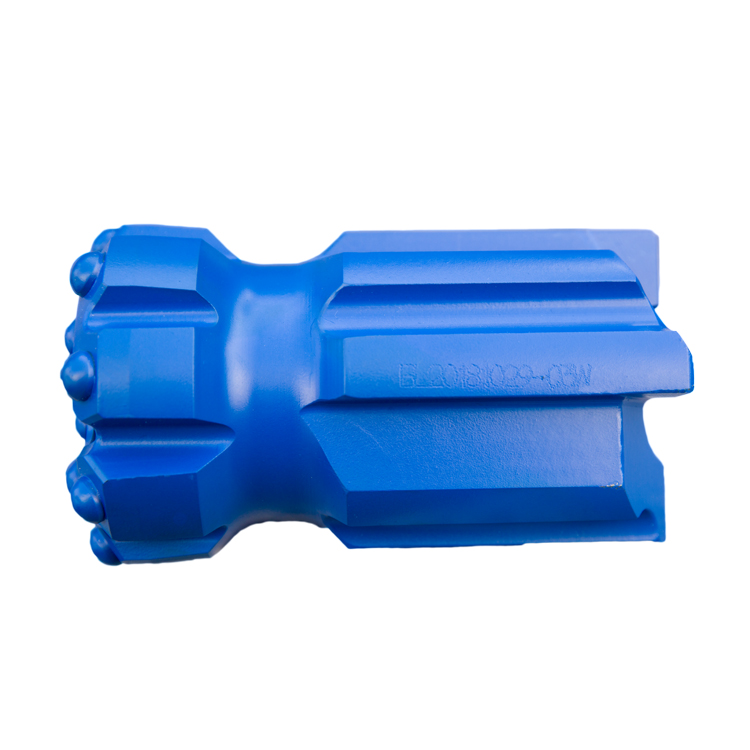

T45 button bits are widely used in Bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer Drilling.

SUPERDRILL offers a complete selection of Top Hammer Drilling Tools to meet all of your drilling needs, which are suitable for any type of drilling application in mining, tunneling, construction and quarry work, and thread adapters in a full range of standard diameters.

With the top quality of alloy steels and the best carbides, we produce all Top Hammer Drilling Tools by hot press technology and multiple heat-treated process to extend the product life for maximum wear and performance in the toughest of drilling conditions.

Our products are suitable for powerful percussive drills and top hammers with high speed drifter, such as Atlas Copco 282 rocket boomer, Atlas Copco 352 rocket boomer jumbo, AtlasCopcoD7roc, Furukawa HCR 1200, Tamrock, and Ingesoll Rand ECM660.

Specification of T45 Drill Bits , kindly check below:

Thread type: T45

Head diameters: 57mm ~ 127mm

Face designs; Flat Face, Drop Center, Uni-face;

Carbide shape: Dome, Ballistic , Semi-Ballistic,

Skirt designs: Standard, retrac, straight retrac

Notes:

Special sizes may   be available upon request.

How to order?
Button Bit:Diameter + Thread + Skirt Shape + Face Design + Insert Configuration

Choosing The Right Carbide

Our Carbide Button Shape Selection
Spherical/Domed/Round Button Spherical/Domed/Round Button are usually used as gauge buttons of DTH Bits, suitable for very abrasive and very hard formations.		Parabollic/Semi-Ballistic Button Parabollic/Semi-Ballistic Button are usually used as gauge buttons and front buttons of DTH Bits,suitable for medium abrasive and hard formations.
Ballistic Button Ballistic Button are usually used as front buttons of DTH Bits, suitable for medium abrasive and medium hard formations. They also can be used as gauge buttons if the rock is soft.		Conical/Cone/Sharp Button Conical/Cone/Sharp Button are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible and button breakage is minimal.
