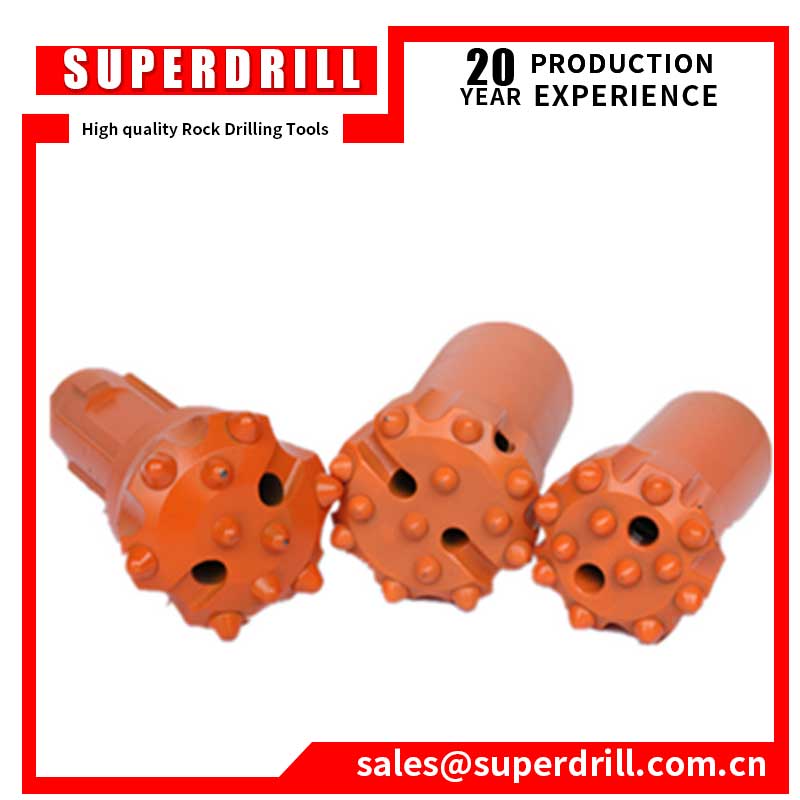

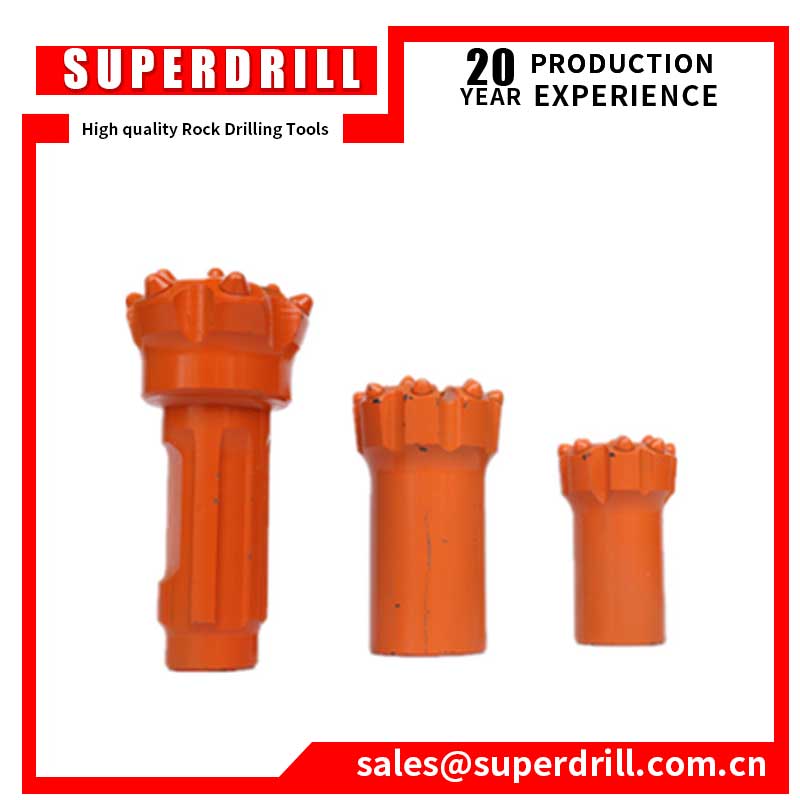

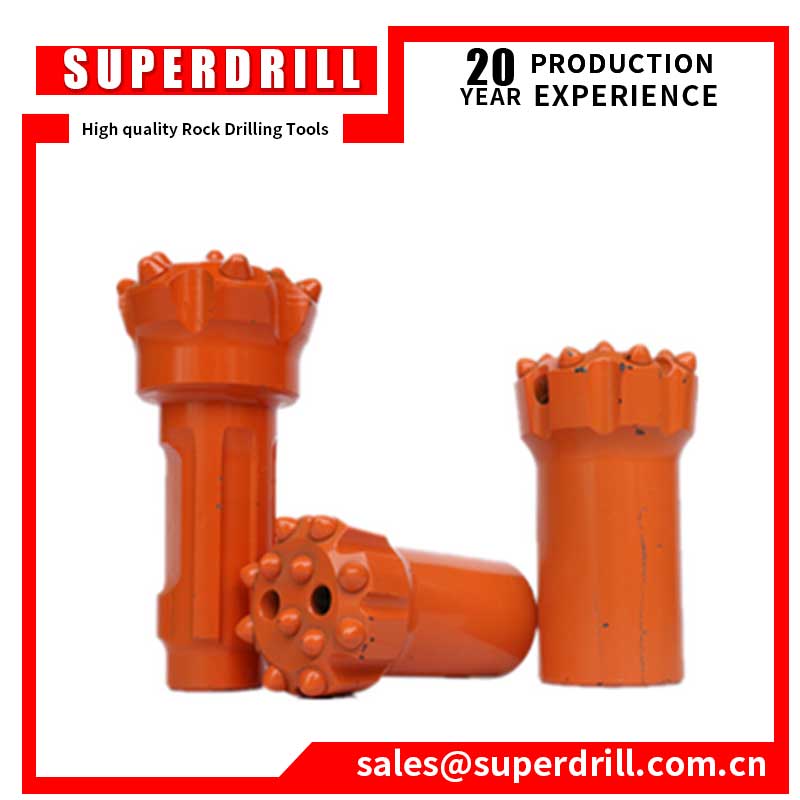

T45 Hard Rock Drilling Bits T38 T45 DTH Button Bit

  • Product Item：60700896223
  • Model Number:R28,R32,T38,T45,T51,GT60 Thread Bit
  • Type:Drill Bit
  • Material:Tungsten Carbide, Alloy Steel
  • Use:Mining&Rock Quarrying
  • Category：T45 Thread Button Bit

    • Sent E-mail Inquiry

    Description

    Hard rock drilling Bits



    Can customize to design bit diameter,air hole quantity as well as bit head shape.Alloy button shape can be changed according to requirement.
    Bit Dia.(mm) Thread Connection Qty*Button Dia(mm)Gauge Qty*Button Dia(mm)Front Air Holes Front Air Holes Side Weight(kg)
    43 R28 5×10 2×9 1 3 0.9
    51 R32 6×10 3×9 3 - 1.0
    76 R32/R38/T38 7×10 4×10 1 2 2.6
    89 T38/T45/T51 8×12 4×12+2×10 4 2 4.3
    102 R32/T38/T45 8×14 6×12 2 2 5.6
    110 T45/T51 7×14 5×13 3 - 5.8
    115 T45/T51 7×14 6×14 4 - 6.0
    127

    T45/T51/GT60

    		8×14 7×13 2 1 6.5
    140 T51/GT60 8×16 7×14 2 1 8.9
    152 T51/GT60 8×16 8×14 2 1 10.0
