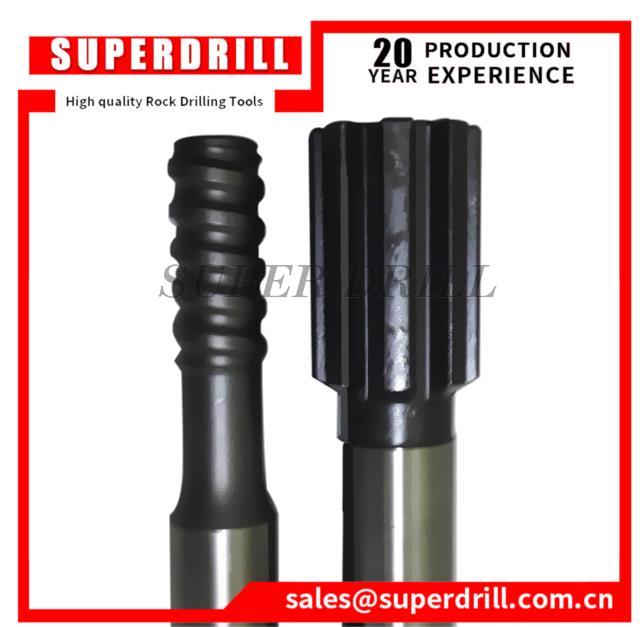

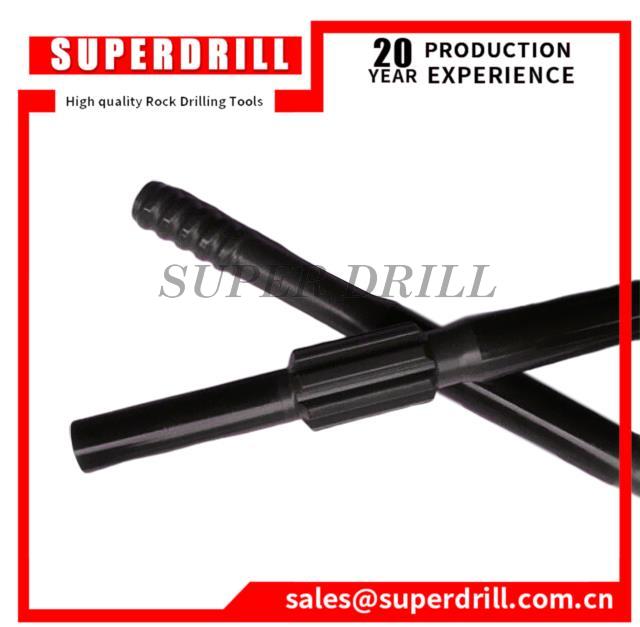

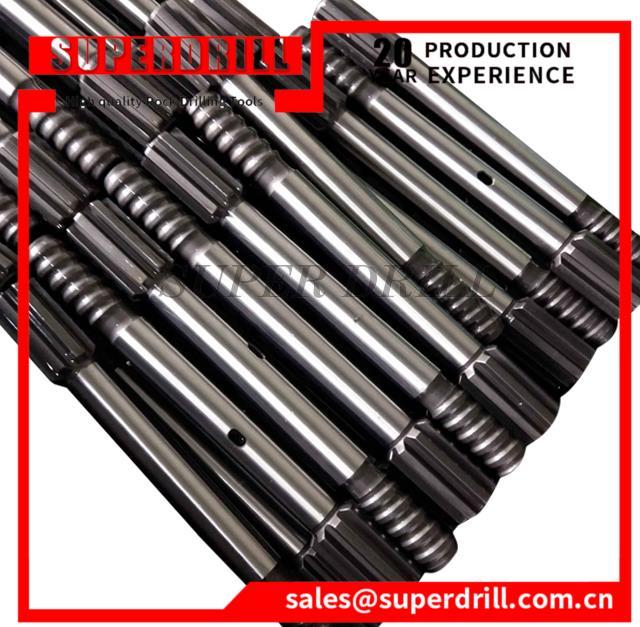

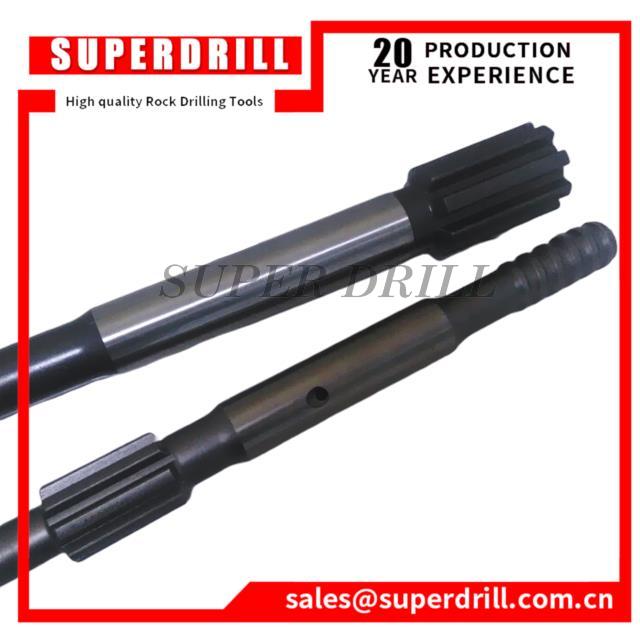

T38 T45 T51 R38 shank adapter For Furukawa
While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses.
It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, wemanufacture premium quality shank adapters for most brands of the drill machine.
Shank Adapter for FurukawaDrifter:
R38 T38 T45 Shank Adapter for Furukawa Drifter HD135/135A
R38 T38 T45 Shank Adapter for Furukawa Drifter HD150
R38 T38 T45 Shank Adapter for Furukawa Drifter HD175
R38 T38 T45 Shank Adapter for Furukawa Drifter HD180
R38 T38 T45 Shank Adapter for Furukawa Drifter HD190
R38 T38 T45 Shank Adapter for Furukawa Drifter HD200
R38 T38 T45 Shank Adapter for Furukawa Drifter HD210
R38 T38 T45 Shank Adapter for Furukawa Drifter HD260
R38 T38 T45 Shank Adapter for Furukawa Drifter HD300
R38 T38 T45 Shank Adapter for Furukawa Drifter HD500
R38 T38 T45 Shank Adapter for Furukawa Drifter HD606
R38 T38 T45 Shank Adapter for Furukawa Drifter HD609
R38 T38 T45 Shank Adapter for Furukawa Drifter HD609RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD612
R38 T38 T45 Shank Adapter for Furukawa Drifter HD612RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD615
R38 T38 T45 Shank Adapter for Furukawa Drifter HD615RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD709
R38 T38 T45 Shank Adapter for Furukawa Drifter HD709RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD712
R38 T38 T45 Shank Adapter for Furukawa Drifter HD712RP
Furukawa Shank Adapter Specification
| Furukawa SHANK ADAPTER | ||||||
| Furukawa HD 90 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 515 | - | 4.3 | 414832528 | |
| Furukawa HD 190 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 500 | - | 4.5 | 414832529 | |
| T38 | 40 | 500 | - | 4.5 | 414832530 | |
| Furukawa HD 300 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 654 | 16 | 6.0 | 414832531 | |
| T45 | 45 | 654 | 16 | 6.7 | 414832532 | |
| Furukawa HD 609 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 690 | - | 6.3 | 414832533 | |
| T45 | 45 | 690 | - | 6.4 | 414832534 | |
| Furukawa HD 612 RP | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T45 | 51 | 884 | - | 11.2 | 414832535 | |
| Furukawa PD200 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 485 | 14.3 | 5.0 | 414832536 | |
| T45 | 45 | 485 | 14.3 | 5.4 | 414832537 | |
Furukawa HD150:
Shank Adapter R38 Length 520mm for Furukawa HD150
Shank Adapter T38 Length 520mm for Furukawa HD150
Furukawa HD190:
Shank Adapter R38 Length 480mm for Furukawa HD190
Shank Adapter T38 Length 480mm for Furukawa HD190
Furukawa HD210:Shank Adapter R38 Length 605mm for Furukawa HD210
Shank Adapter T38 Length 605mm for Furukawa HD210
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
- High strength chromium-molybdenum steel with high fatigue strength and excellent wearresistance.
- The accurate dimension of thread perfectly matches the rock drill
- Work reliably and very cost-effective
Applications
• Bolting, drifting
•Bench drilling• Production drilling
We can design and manufacture personalized products to meet your special application,such as changing the length, diameter, etc.
