Speed Rod MF drill rod

Product Item：013

Thread: R28, R32, T38, T45, T51

Effective lengths:600mm ~ 6400mm;

Type：Thread extention Rod and MF rod

Steel Grade: Similar To Sandvik's Sanbar64

Category：Extension Drill Rod

Description

R38 T38 T45 T51 Extension Rod Speed Rod MF drill rod

Extension Drill Rod

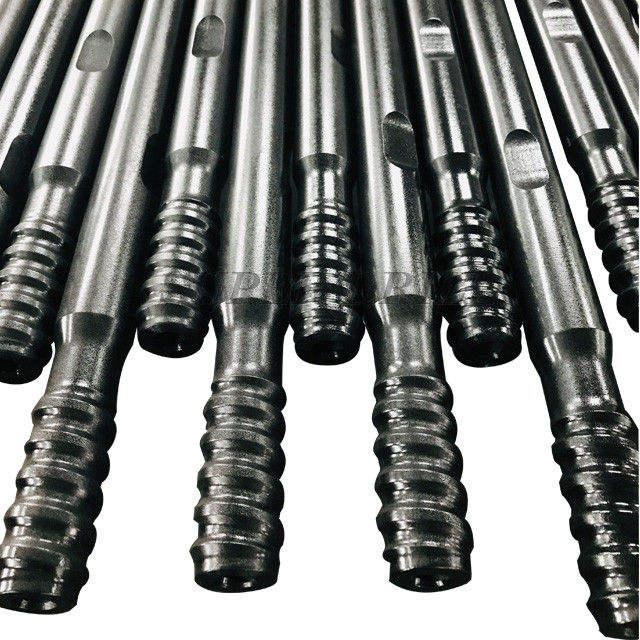

Extension rods are one major spare part in terms of drill application area, there are two shapes of extension rods, one is round type, another one is hexagonal type.

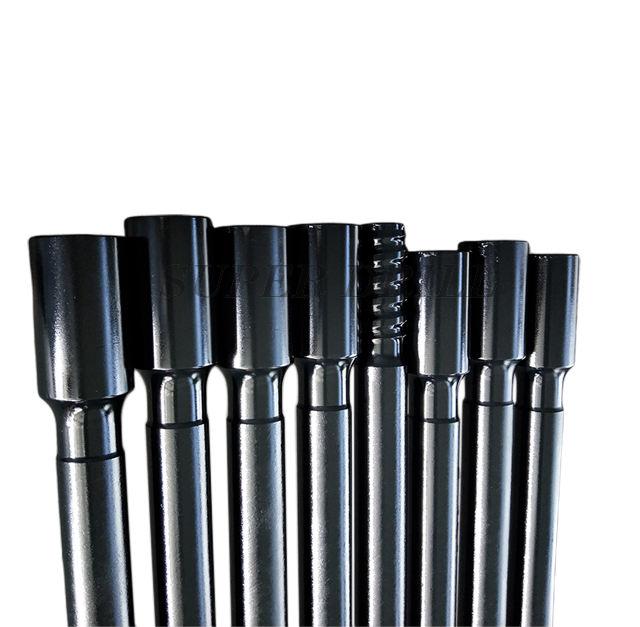

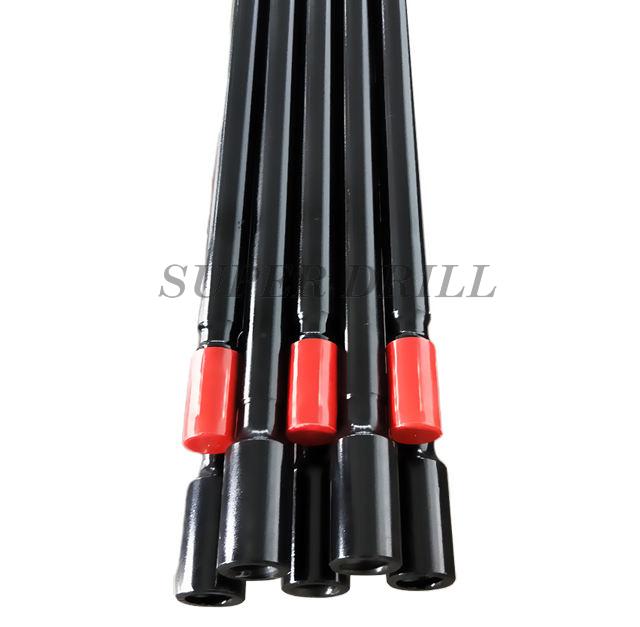

But all extension rods are threaded and made by hollow drill steels, this means usually extension rods are hollow.This hollow hole are usually named flushing hole, used for transmitting water or air during drilling. Two ends threads can be used for connecting couplings, shanks, couplings or bits. Typically two ends of extension rods are male, while sometime one end is male and another one is female, then we call it M/F rod. We need couplings to connect extension rods, while for M/F rods, because one end is female, so couplings are not necessary.

Thread Type:

For Extension Drill Rod, there are R22, R25, R28, R32, R38, T38, T45, T51, ST58, GT60 threads, and different lengths of rods are available from 600mm to 6400mm.

Extension-Drill-Rod

Feature Of The ExtensionDrillRod MF Rod:

Drill rod using thread system. Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.

Widely used in drifting, tunneling, benching, and long hole drilling

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

Extension-Drill-Rod

Extension Drill Rod for Bench drilling, Long Hole Drilling Underground
Code No.	Type	Thread	Length(mm)	Shape	Diameter(mm)	Weight(kg)
MM-T38-Rd39-T38-1000	MM	T38-T38	1000	Rd39	39	8
MM-T38-Rd39-T38-1220	MM	T38-T38	1220	Rd39	39	9.7
MM-T38-Rd39-T38-1500	MM	T38-T38	1500	Rd39	39	11.9
MM-T38-Rd39-T38-1830	MM	T38-T38	1830	Rd39	39	14.4
MM-T38-Rd39-T38-2000	MM	T38-T38	2000	Rd39	39	16
MM-T38-Rd39-T38-2435	MM	T38-T38	2435	Rd39	39	19.4
MM-T38-Rd39-T38-3050	MM	T38-T38	3050	Rd39	39	24.1
MM-T38-Rd39-T38-3660	MM	T38-T38	3660	Rd39	39	29.4
MM-T38-Rd39-T38-4265	MM	T38-T38	4265	Rd39	39	34
MF-T38-Rd39-T38-1220	MF	T38-T38	1220	Rd39	39	10.6
MF-T38-Rd39-T38-1525	MF	T38-T38	1525	Rd39	39	13.05
MF-T38-Rd39-T38-1830	MF	T38-T38	1830	Rd39	39	15.6
MF-T38-Rd39-T38-2435	MF	T38-T38	2435	Rd39	39	20.8
MF-T38-Rd39-T38-3050	MF	T38-T38	3050	Rd39	39	25.6
MF-T38-Rd39-T38-3660	MF	T38-T38	3660	Rd39	39	30.4
MF-T38-Rd39-T38-4265	MF	T38-T38	4265	Rd39	39	35.2
MM-T45-Rd46-T45-1000	MM	T45-T45	1000	Rd46	46	10.80
MM-T45-Rd46-T45-1500	MM	T45-T45	1500	Rd46	46	16.30
MM-T45-Rd46-T45-2000	MM	T45-T45	2000	Rd46	46	21.80
MM-T45-Rd46-T45-3050	MM	T45-T45	3050	Rd46	46	33.60
MM-T45-Rd46-T45-3660	MM	T45-T45	3660	Rd46	46	40.40
MM-T45-Rd46-T45-4265	MM	T45-T45	4265	Rd46	46	47.00
MM-T45-Rd46-T45-6095	MM	T45-T45	6095	Rd46	46	67.80
MF-T45-Rd46-T45-1000	MF	T45-T45	1000	Rd46	64	13.30
MF-T45-Rd46-T45-1220	MF	T45-T45	1220	Rd46	64	15.50
MF-T45-Rd46-T45-1500	MF	T45-T45	1500	Rd46	64	19.00
MF-T45-Rd46-T45-1525	MF	T45-T45	1525	Rd46	64	19.10
MF-T45-Rd46-T45-1830	MF	T45-T45	1830	Rd46	64	21.80
MF-T45-Rd46-T45-2000	MF	T45-T45	2000	Rd46	64	24.20
MF-T45-Rd46-T45-3050	MF	T45-T45	3050	Rd46	64	35.70
MF-T45-Rd46-T45-3660	MF	T45-T45	3660	Rd46	64	42.50
MF-T45-Rd46-T45-4265	MF	T45-T45	4265	Rd46	64	49.50
MF-T45-Rd46-T45-4880	MF	T45-T45	4880	Rd46	64	53.70
MF-T45-Rd46-T45-5490	MF	T45-T45	5490	Rd46	64	62.60
MF-T45-Rd46-T45-6095	MF	T45-T45	6095	Rd46	64	69.60
MF-ST58-Rd81-3660	MF	ST58	3660	Rd81	81	76.2
MF-ST58-Rd81-4265	MF	ST58	4265	Rd81	81	86.7
MF-ST58-Rd81-5490	MF	ST58	5490	Rd81	81	109.6
MF-ST58-Rd81-6095	MF	ST58	6095	Rd81	81	121.7
MF-ST58-Rd82-3660	MF	ST58	3660	Rd82	82	80
MF-ST58-Rd82-4270	MF	ST58	4270	Rd82	82	90
MF-ST58-Rd82-6095	MF	ST58	6095	Rd82	82	124

Advantages:
Compared with the oversea brands, our advantages are bellowing:
• Our products can match over 95% against the original products
• Price are competitive against the famous brands and best quality against the small factory

Applications:

• Underground mining

• Tunneling,quarrying

• Widely used in benching, and long hole drilling
