Description

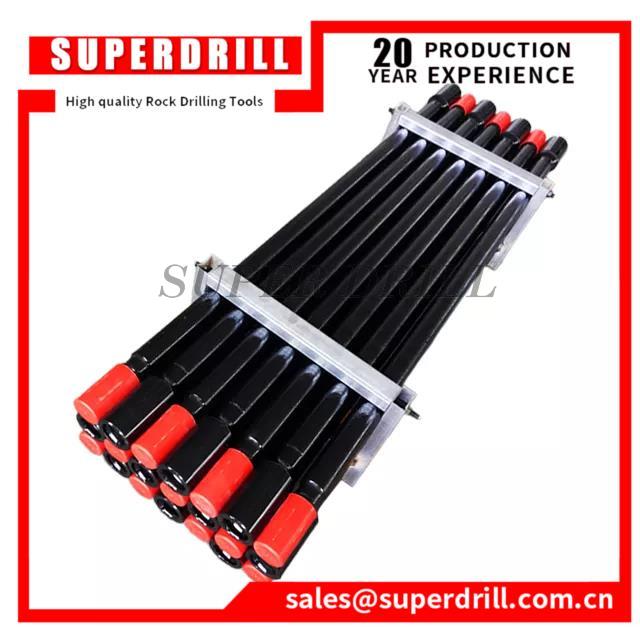

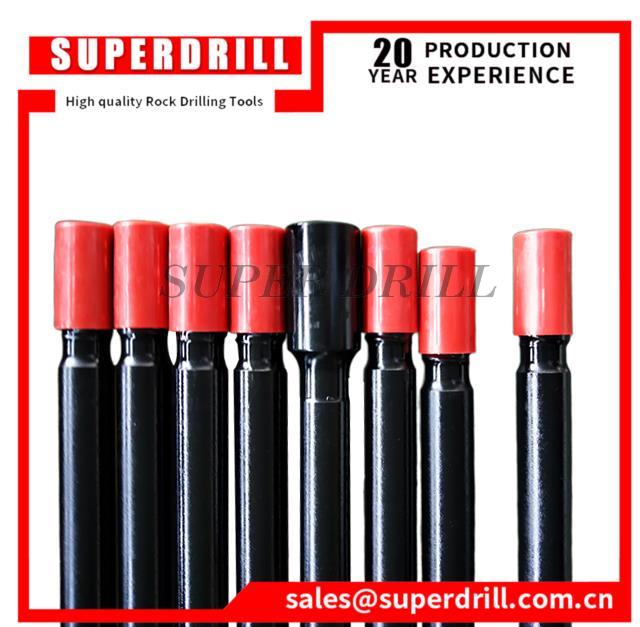

Mining Quarring Tunneling Blasting T45 Extension Rod
Mainly produces rock-drilling tools for mining, constriction, tunneling, quarrying and related industrials. We can specially design and manufacture according to client inquiry is available.

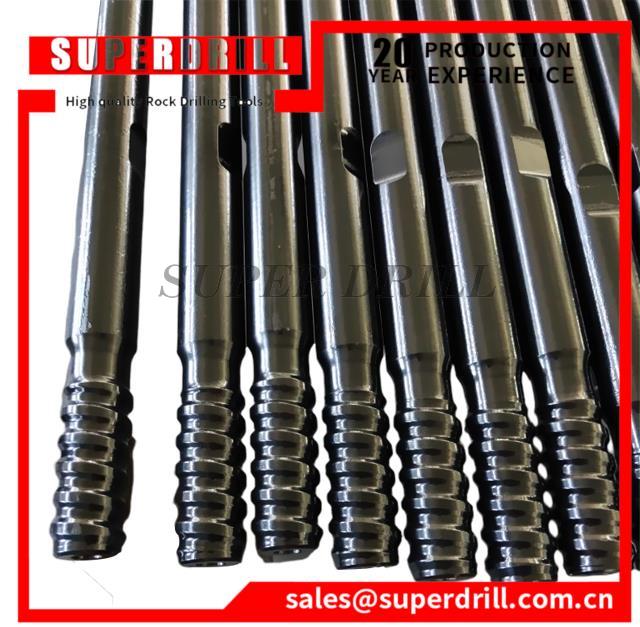

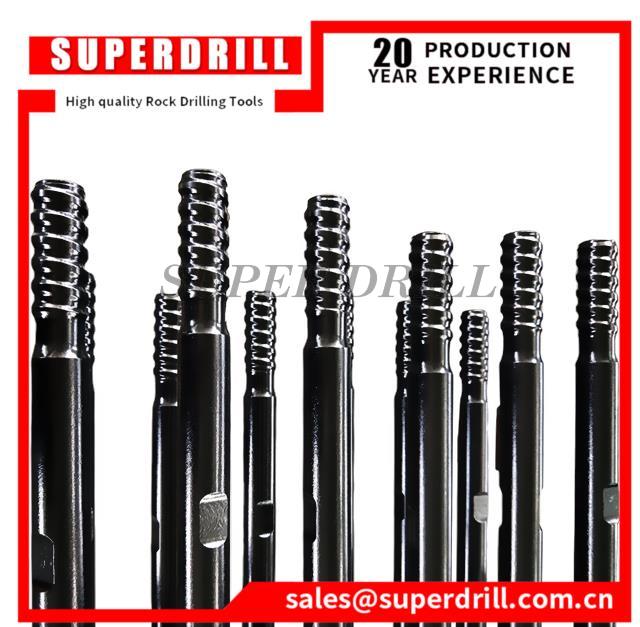

MF drill rods are made from the same steels as Sandvik 64 bar, produced by CNC machine and advanced heat treatment. Besides, in order to make sure that the MF drill rod has a long lifespan, we use friction welding technology to connect the rod boy and female thread, which can make sure the female thread not be damaged easily.
We are able to supply the full range of drill rods in different lengths with various threads as below.
Thread size: R25, R32, R38, T38, T45, T51 GT60 and so on.
T45 Extension rod :
| Length(mm) | Length(Inch) | Diameter(mm) | Diameter(inch) | Weight(kg) | Product Code |
| 1525 | 5 | 46 | 1 4/ 5 | 21.2 | MF46-T45-1525 |
| 1830 | 6 | 46 | 1 4/ 5 | 24.6 | MF46-T45-1830 |
| 3050 | 10 | 46 | 1 4/ 5 | 38.2 | MF46-T45-3050 |
| 3660 | 12 | 46 | 1 4/ 5 | 45 | MF46-T45-3660 |
| 4270 | 14 | 46 | 1 4/ 5 | 51.9 | MF46-T45-4270 |
| 5530 | 18 1/7 | 46 | 1 4/ 5 | 66 | MF46-T45-5530 |
| 6095 | 20 | 46 | 1 4/ 5 | 72.3 | MF46-T45-6095 |
