Description

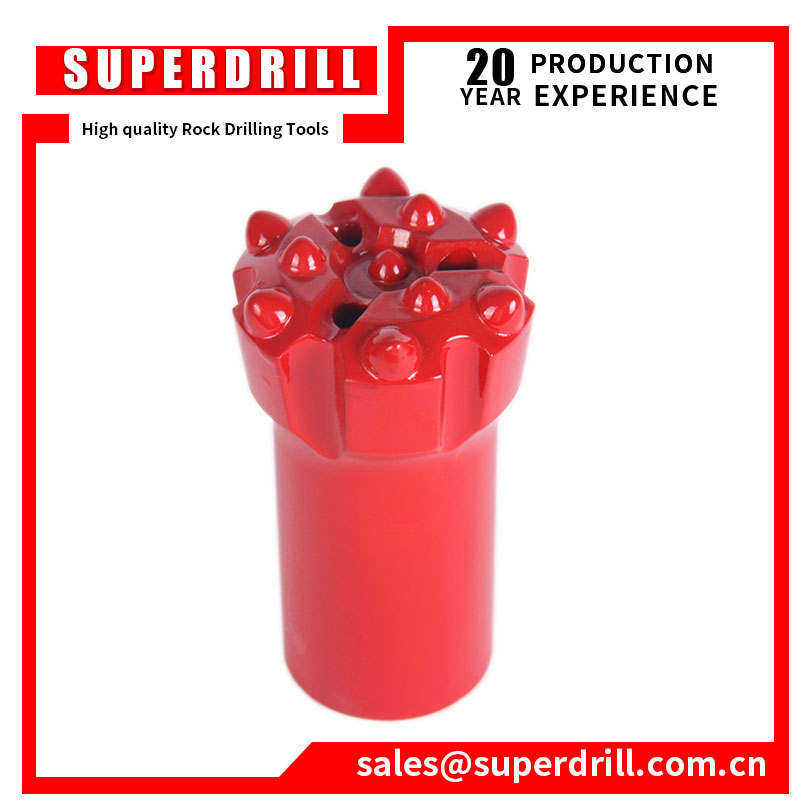

R32-48mm Thread button bits

SUPERDRILL R32 Drill Bits are ideal for medium to hard ground, they are recognized by their characteristic raised buttons and grooved chipways and flushing holes on the face.

SUPERDRILL rock tools for top hammer drilling are designed to transmit intensive impact energy into the rock with the least possible loss of energy. The result is good rock breakage, high penetration rates and high productivity. This, together with optimal hole quality, great reliability and long service life, gives the best possible blasting results, outstanding drill-steel economy and low total cost.

A comprehensive range of various button bits shown as below:

Product Name: R32 Drill Bits

Thread type: R32

Head diameters: 41mm ~ 76mm

Face designs; flat face,

Carbide shape: Dome, Ballistic , Semi-Ballistic,

Skirt designs: Standard, Retrac

Notes:

Special sizes may   be available upon request.

How to order?
Button Bit:Diameter + Thread + Skirt Shape + Face Design + Insert Configuration

Choosing The Right Carbide

The larger the volume of the Carbide, the more aggressive the Bit. The more aggressive Carbides assist movement of the chips away from the face as there is more room for airflow on the face of the Bit. These more aggressive Bits help to break out larger chips, which increases the penetration rate. The greater volume of Carbide can lead to longer Bit life.

For more details please watch PDF online:R32 Thread Button bits Catalogue
