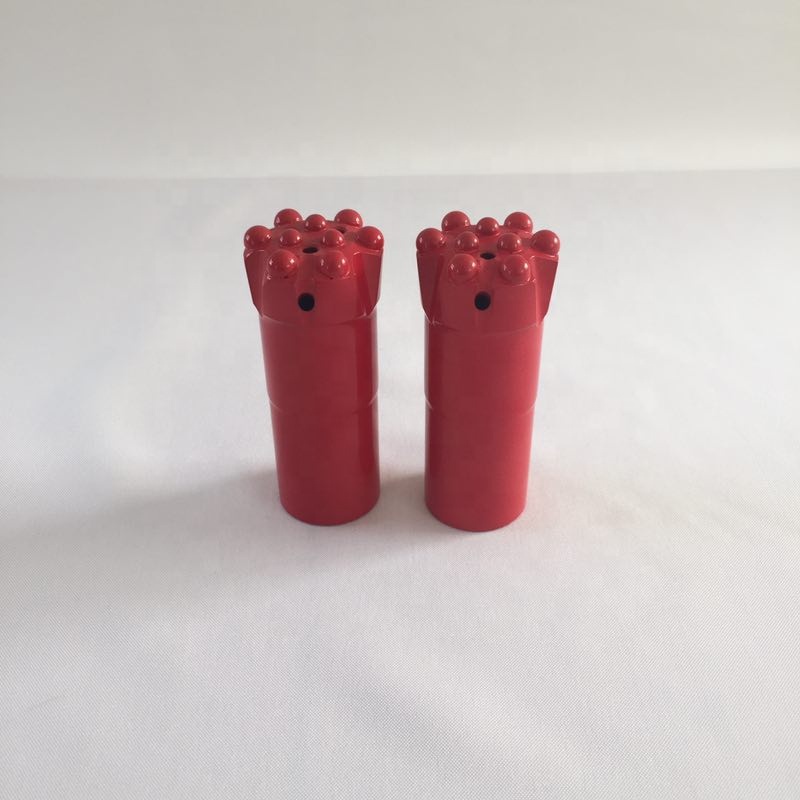

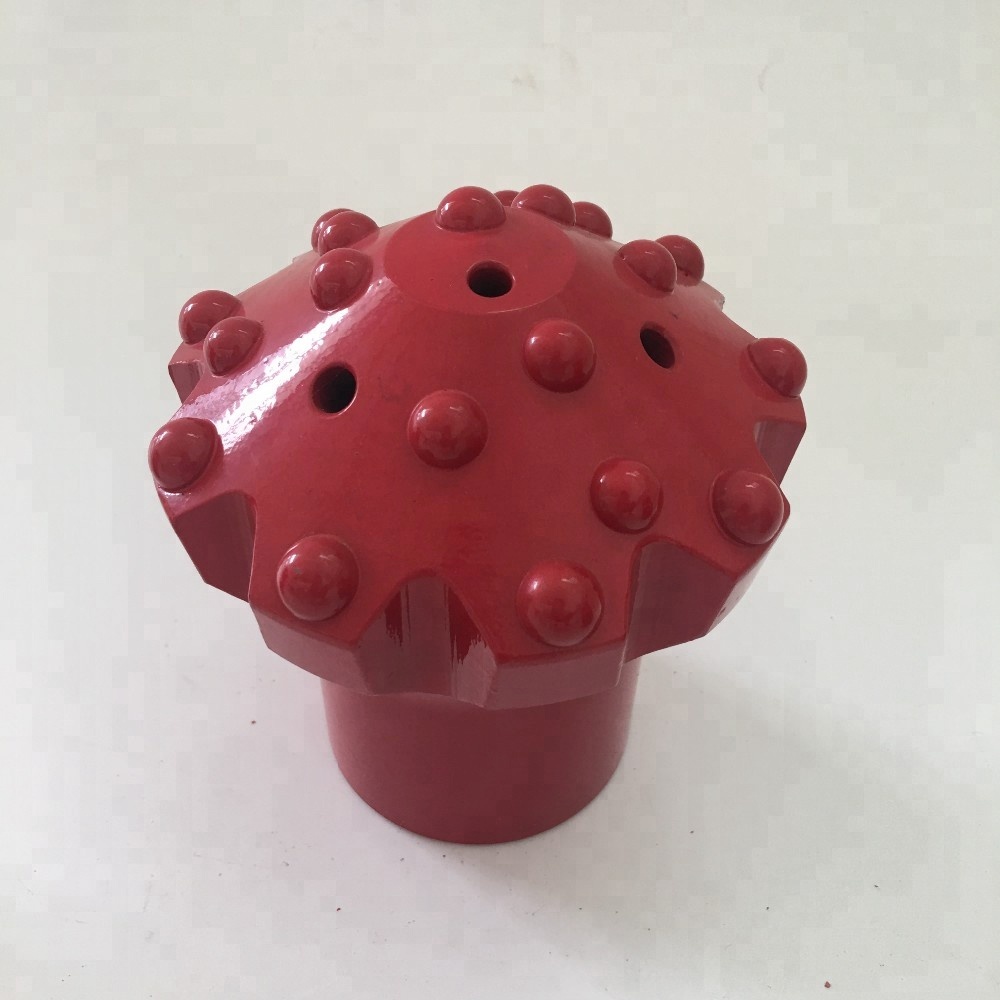

rock drill bit 76mm 89mm R32 T38 ballistic drill bits tungsten carbide thread button bit

rock drill bit 76mm 89mm R32 T38 ballistic drill bits tungsten carbide thread button bit

Product Item：60666762849

Model Number:Drill bit, ZZWW310036

Type:Drill Bit, Drill Bit

Material:Carbon Steel, Tungsten carbide + carbon steel

Use:Ore Mining, Ore Mining

Category：R32 Thread Button Bit

Description

What is the advantage of our T38 Button Bit ?

1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.

What is the Bit Shape Selection of our T38 Button Bit?

Bit Face Shape	Application
Drop Center Bit	For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face	The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face	For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Double Gauge Face	This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Flat Face Bit	This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
