Description

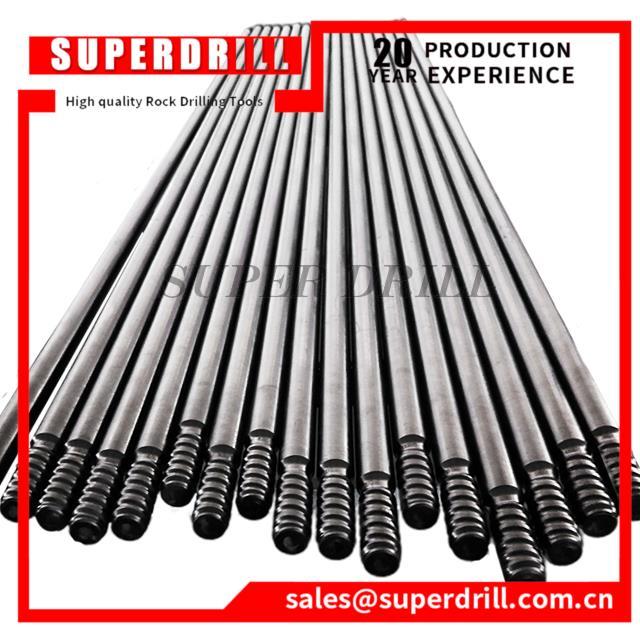

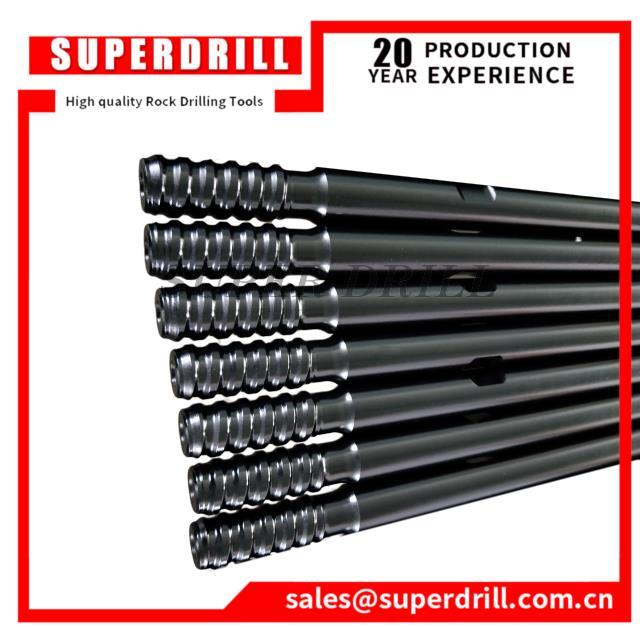

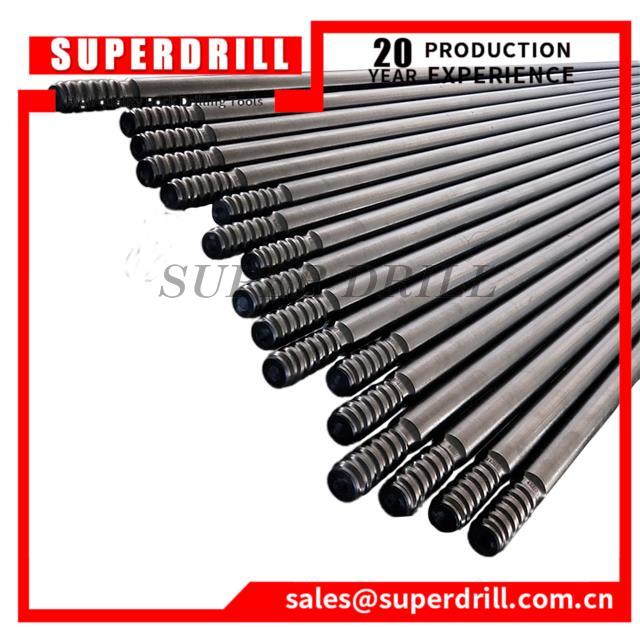

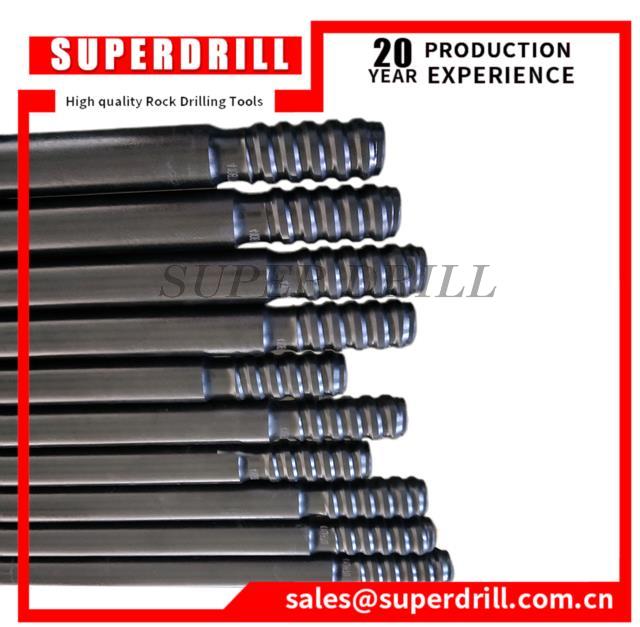

Drill rod using R25 thread system. Suited for short hole drilling operations. For drills capable of receiving Hex 22x108mm and Hex 25x159mm shank. Used in drifting and tunneling.rr
Widely used in drifting, tunneling, benching, and long hole drilling
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Our factory can offer many kinds of drill bits, including chisel type bits, cross type bits, Tapered drill rods and Integral Drill Rods, mainly used for mining, coal cutting, tunneling, rock cutting in quarrying.
Specification
| Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
r
Weight (kg) |
|
DRH22-R25-610, R25 Shank End Rod, Shank 22 mm x 108 mm |
610 | 2 | 22 | 6/7 | 2.6 |
|
DRH22-R25-760, R25 Shank End Rod, Shank 22 mm x 108 mm |
760 | 2 1/2 | 22 | 6/7 | 2.9 |
|
DRH22-R25-1000, R25 Shank End Rod, Shank 22 mm x 108 mm |
1000 | 3 2/7 | 22 | 6/7 | 3.7 |
|
DRH22-R25-1200, R25 Shank End Rod, Shank 22 mm x 108 mm |
1220 | 4 | 22 | 6/7 | 4.4 |
|
DRH22-R25-1830, R25 Shank End Rod, Shank 22 mm x 108 mm |
1830 | 6 | 22 | 6/7 | 6.3 |
|
DRH22-R25-2435, R25 Shank End Rod, Shank 22 mm x 108 mm |
2435 | 8 | 22 | 6/7 | 8.1 |
|
DRH22-R25-3200, R25 Shank End Rod, Shank 22 mm x 108 mm |
3200 | 10 1/2 | 22 | 6/7 | 10.6 |
|
DRH22-R25-3600, R25 Shank End Rod, Shank 22 mm x 108 mm |
3600 | 11 4/5 | 22 | 6/7 | 12.0 |
