Description

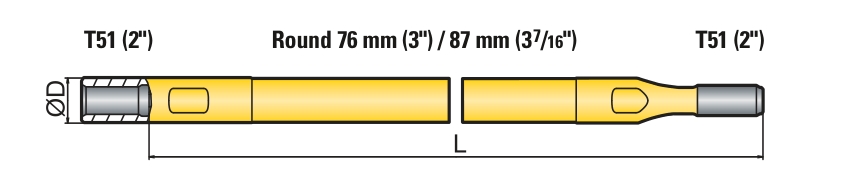

We are a professional manufacturer of Atlas Copco Guide Tubes T51, offering high-quality drilling accessories for rock drilling applications. We can produce guide tubes in lengths ranging from 1220 mm to 3660 mm. Additionally, we support customized production of various guide tubes to meet specific drilling requirements.

1. Product No: 90514257

• Hole Diameter: 89 mm (3½ inch)
• Tube Diameter: 76 mm (3 inch)
• Length (L): 1220 mm (4 feet)
• Flushing Hole Ø: 50.0 mm (1³¹/₃₂ inch)
• Weight: 28.8 kg

2. Product No: 94502624

• Hole Diameter: 89 mm (3½ inch)
• Tube Diameter: 76 mm (3 inch)
• Length (L): 1830 mm (6 feet)
• Flushing Hole Ø: 50.0 mm (1³¹/₃₂ inch)
• Weight: 40.0 kg

3. Product No: 94502641

• Hole Diameter: 89 mm (3½ inch)
• Tube Diameter: 76 mm (3 inch)
• Length (L): 3660 mm (12 feet)
• Flushing Hole Ø: 66.0 mm (2⁵/₈ inch)
• Weight: 79.1 kg

4. Product No: 94502707

• Hole Diameter: 102 mm (4 inch)
• Tube Diameter: 87 mm (3⁷/₁₆ inch)
• Length (L): 3660 mm (12 feet)
• Flushing Hole Ø: 50.0 mm (1³¹/₃₂ inch)
• Weight: 80.0 kg

Our Atlas Copco Guide Tubes T51 are fully carburized for enhanced durability and superior performance. We also support customization to meet various drilling needs. Contact us for more details!
