Description

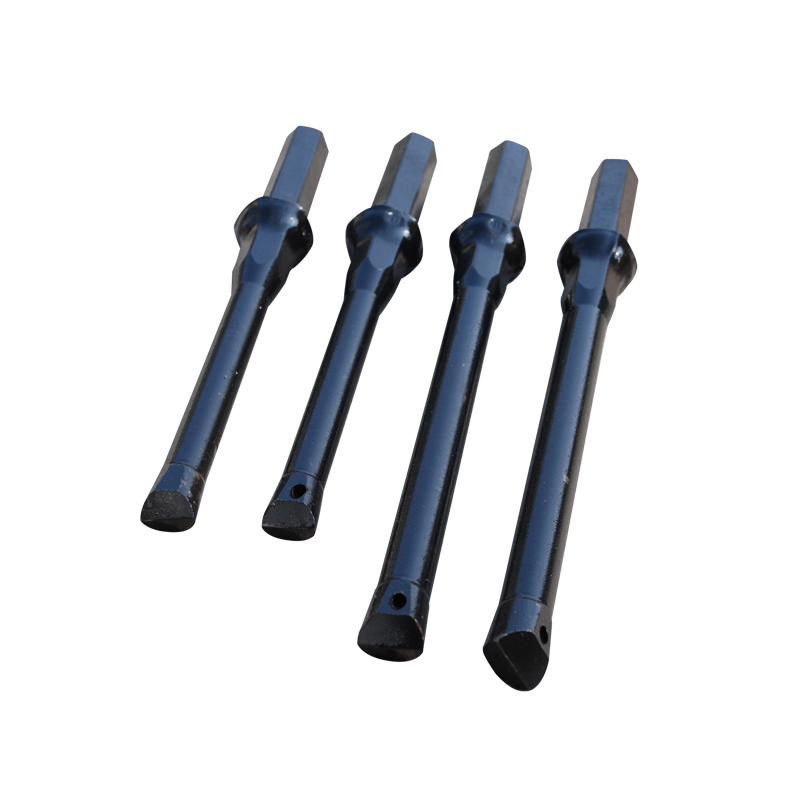

Quarry rock drilling Integral Steel Plug Hole Rod

Our factory can offer many kinds of drilling tools, including chisel type bits, cross type bits, Tapered drill rods, plug hole rod and Integral Drill Rods and so on.

Products Features:

Plug hole rod are normally produces Hexagon 22*108 Drill Steel, where the dimension given are measured across the flat of the hexagon.

Plug hole Drill Steel rod are a fixed length with a shank at one end and a bit at the other, and are able to drill to a depth equivalent to their effective length.

The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.

To drill deep holes, the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.

To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.

Products technical data:

The plug hole rod in this brochure are the most commonly used.

For other bit diameters and lengths please contact us.
