Description

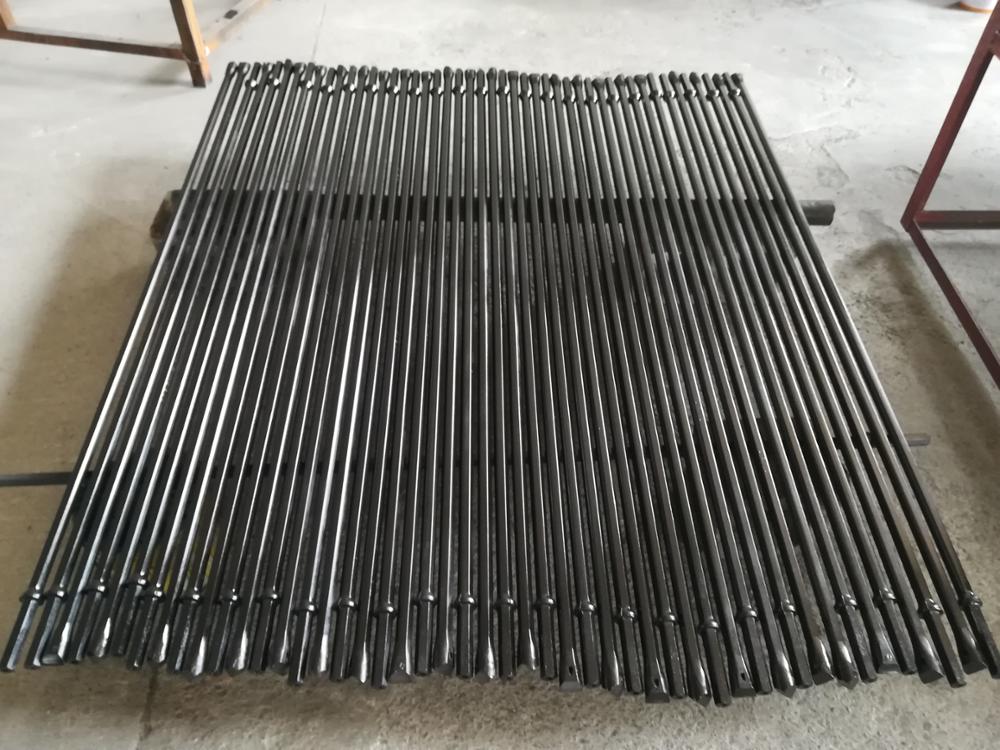

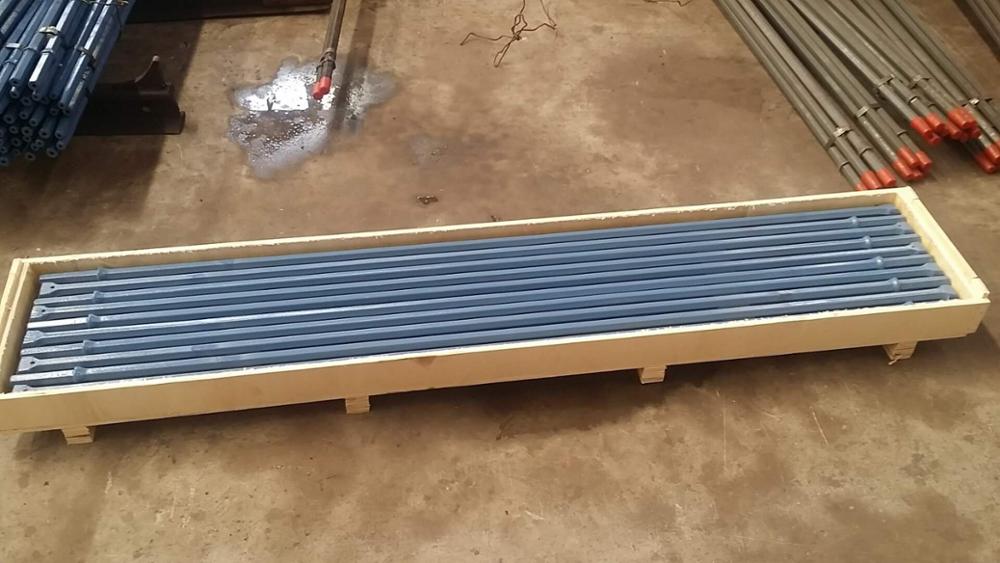

17mm rock drilling Tools Mining Blast Hole Jack Hammer Drilling Shank Integral Drill Rod Steel Rods
Plug-hole Integral Drill Steel is widely used in stone pit field to drill small holes. Because of the integration of the drilling rods and drilling bits, it can be matched directly with Rock drills without shank adapter or coupling sleeve, these advantages avoid the wastage of energy, and improve the drilling efficiency remarkably.
|
|
Shank Style |
|
Hex19 × 108mm |
|
|
Hex22 × 108mm |
|
|
Turned Length |
|
|
210~370mm |
|
|
260~600mm |
|
|
|
Head Diameter |
|
17~22mm |
|
|
23~26mm |
PRODUCT SPECIFICATION
Acedrills’ Plug-hole Integral Drill Steels are available in:
|
Specifications |
Turned Length |
Head Diameter |
||
|
Shank Style |
mm |
foot/inch |
mm |
inch |
|
Hex19 × 108mm |
210 ~ 370 |
8 1/8” ~ 1’ 2 9/16” |
17 ~ 22 |
21/32 ~ 7/8 |
|
Hex22 × 108mm |
260 ~ 600 |
10 15/64” ~ 1’ 11 5/8” |
23 ~ 26 |
27/32 ~ 1 1/32 |
Specification Notice
|
Notes:
1. The other specifications are also available if upon customers’ request;
2. How to order? Shank Style + Turned Length + Head Diameter
