Description

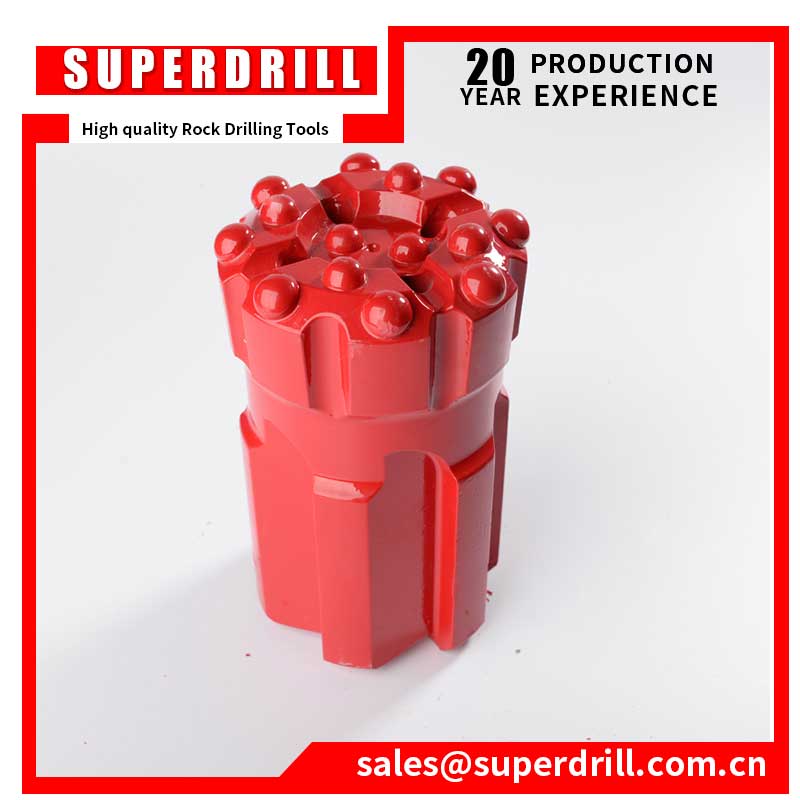

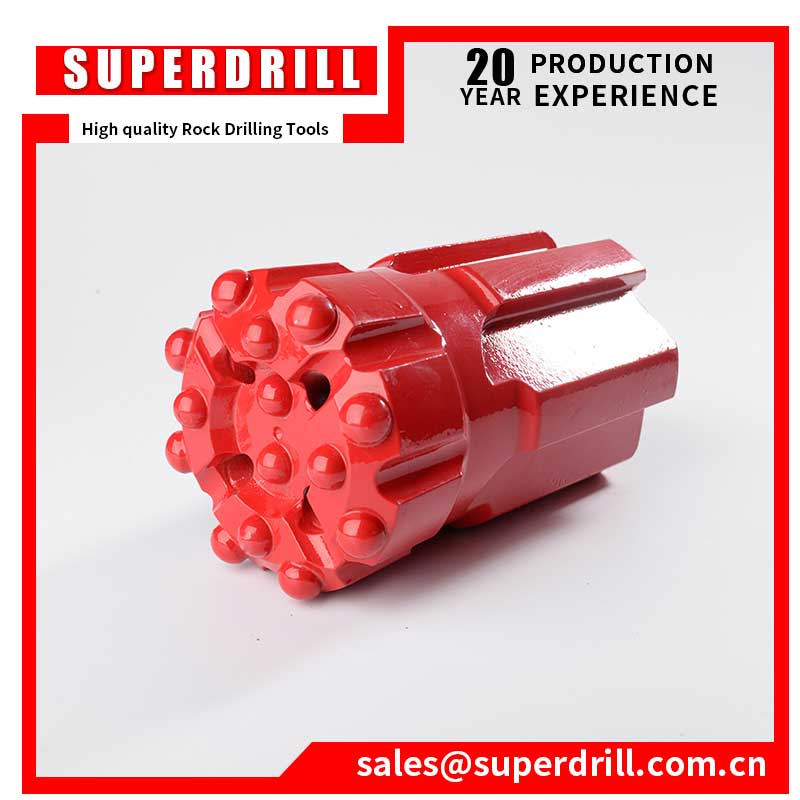

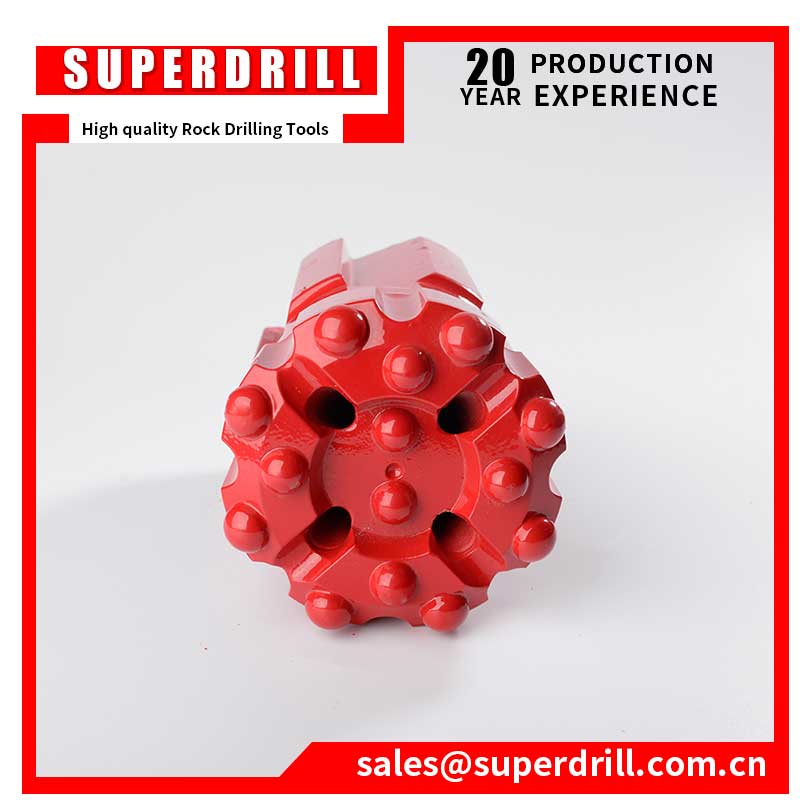

can make all sizes and shapes according to your request!
Extension Rod (MF)
Normal Specifications:
| Size |
Button Quantity |
Normal Skirt |
Retrac Skirt |
| (Gauge + Front) | Skirt Length(mm) | ||
| Q41-R | φ8*5+φ8*2 | 100mm | 120mm |
| Q45-R | φ8*6+φ8*3 | 100mm | 120mm |
| Q48-R | φ10*6+φ8*3 | 100mm | 120mm |
| Q51-R | φ10*6+φ8*3 | 100mm | 120mm |
| Q57-T-R | φ10*6+φ9*3 | 110mm | 130mm |
| Q64- T-R | φ11*6+φ9*4 | 120mm | 140mm |
| Q76- T-R | φ12*8+φ11*4 | 130mm | 155mm |
| Q89- T-R | φ12*8+φ12*5 | 140mm | 170mm |
| Q102-T-R | φ14*8+φ12*6 | 150mm | 175mm |
| Q115-T-R | φ14*8+φ12*7 | 155mm | 180mm |
| Q127-T-R | φ16*8+φ12*9 | 160mm | 190mm |
Different Body Types:
Normal Body
Retrac Body
Rocked Body
How to Connect Bits & Rod:
Thread Types: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
Production Application:
Effective Production Team
Perfect After-Sales Service Team
Extension Rod (MF)
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before pacKing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
