Pneumatic Breaker

HomeProductsRock drillsPneumatic Pick HammePneumatic Breaker

Pneumatic Breaker

  • Product Item:007
  • Pneumatic Breaker
  • Type:Air Hammer
  • Aplication:Quarrry,construction or mining
  • Advantage:Factory price
  • Category:Pneumatic Pick Hamme

  • Sent E-mail Inquiry

    Description

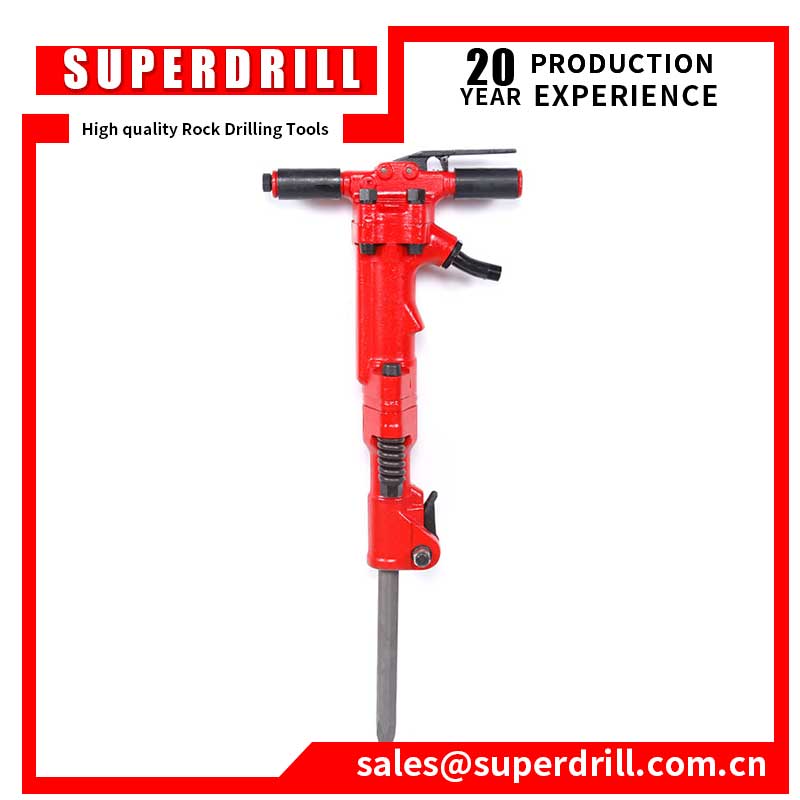

    Air breaker hammer /pneumatic Jack Hammer

    Product Application

    B47,B50,B67,B87,B90 Multipurpose Pneumatic Rock Breaker/Hand Concrete Crushing machine
    The Pneumatic Hammer B87 is tools with compressed air as its power, and mainly for road construction , concrete and other hard objects demolition .
    B87 pneumatic breaker is a pneumatic instrument manufactured with the mature technology of America Gardener Denver Corporation. It is more powerful in breaKing ferroconcrete , rocks and durability ,The rock breaker suits the requirements of breaking outsized . super-thick and hard objects .The breaker is ideal machinery for the substructural construction of mines , bridges ,roads and civil infastructure.
    The B87 Air Leg rock drill is a kind of high efficiency air leg rock drill machinery. it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility

    Applications:
    1.dig column foot pit operations;
    2.excavation pipeline construction;
    3.rock, mining of coal, open ditches;
    4.concrete crushing operations until the objects;
    5.building demolition, break the road on the road ;
    6.breaking solid ground and wall in the urban infrastructure construction project .

    SPECIFICATIONS
    Model
    B47
    B50
    B67
    B87
    B90
    length
    550mm
    660mm
    615 mm
    686 mm
    745mm
    weight
    21.5kg
    18kg
    30 kg
    39 kg
    34Kg
    Air pressure
    0.63mpa
    0.63mpa
    0.63mpa
    0.63mpa
    0.63mpa
    impacting frequency
    21.6hz
    22 hz
    24 hz
    18 hz
    16 hz
    gas consumption
    23l/s
    33 l/s
    42 l/s
    55 l/s
    27L/s
    Bit Head Size





    25×108 mm
    25×108 mm
    25×108 mm
    32×152mm
    32×152mm
