Description

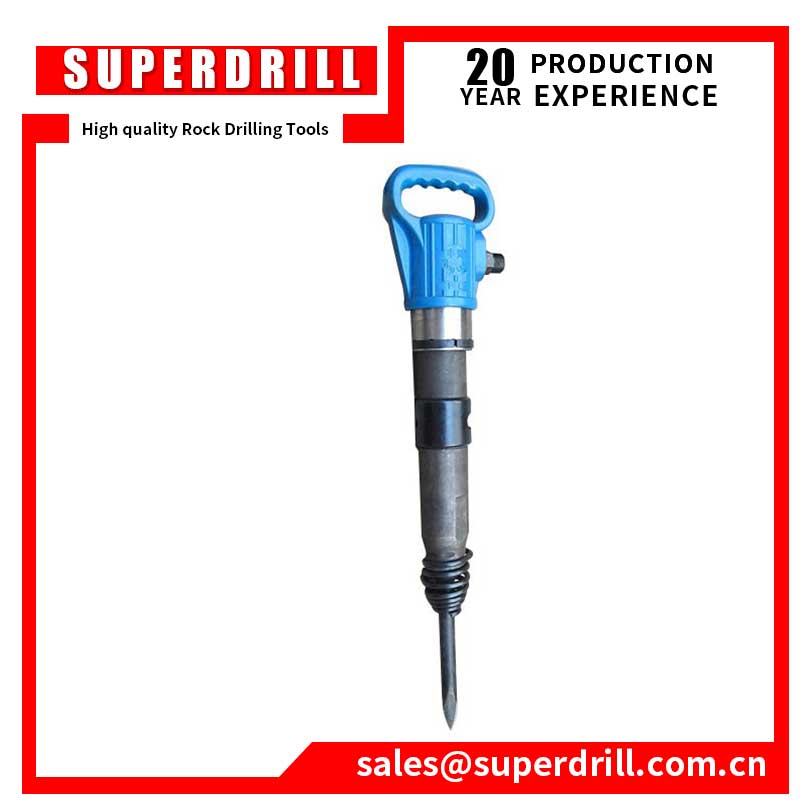

G10 G11 G15 Air rock picks pneumatic hammer/ breaker tool
General description
1. Road & bridge repair work ,Cement dressing,Metal tank demolition,Railroad car repair,Concrete truck mixing tank cleaning,BreaKing thick concrete, boulders, frozen gound, clay.
2.Demolition of floors, pavement, bridge maintenance, asphalt, frozen ground and masonry walls
Advantage and feature
1. D-style die cast aluminum handle
2. Adjustable exhaust deflector
3. Barrel has built-in bridge for safety
4. Heat treated polished steel barrel
| Model | G10 | G11 | G15 |
| BPM | 960 | 1104 | 900 |
| Weight | 22 lb (10kg) | 23.4 lb (10.6kg) | 24.3 lb (11kg) |
| Air consumption | ≤55CFM (26L/S) | ≤53CFM (25L/S) | ≤53CFM (25L/S) |
| Rated Pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
| Cylinder diameter | 1-1/2" (38mm) | 1-1/2" (38mm) | 1-3/4" (42mm) |
| Air hose size | 5/8" (16mm) | 5/8" (16mm) | 5/8" (16mm) |
| Length | 22-1/2" (570mm) | 22-1/2" (570mm) | 23-5/8" (600mm) |
