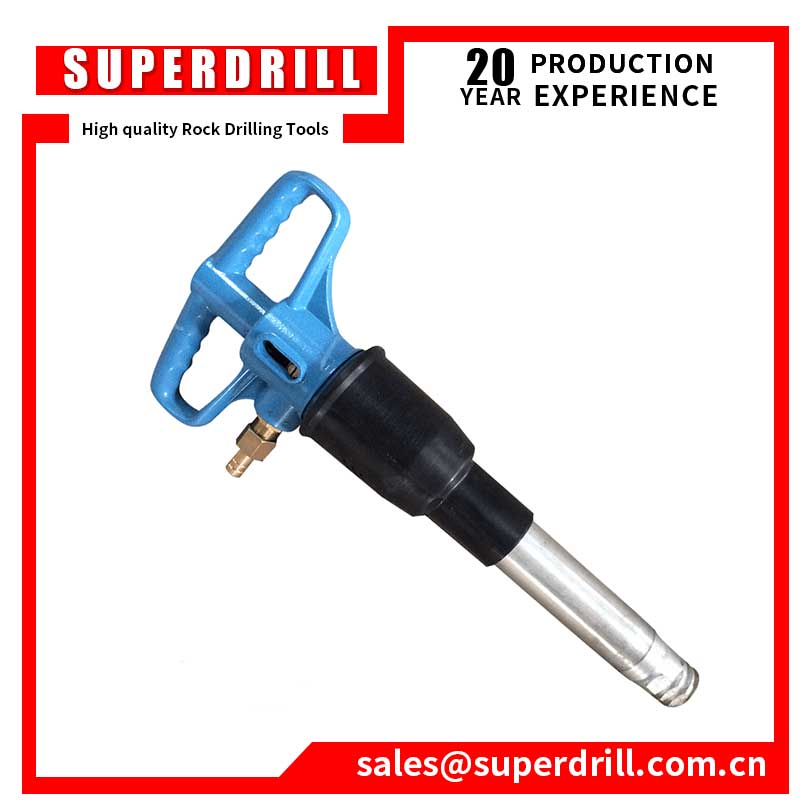

MO-1B/2B/3B/4B Pneumatic Jack Hammer Pneumatic

Product Item：007

Model Type: pneumatic air hammer drill

Air Legs

Description

MO-1B/2B/3B/4B pneumatic Jack Hammer Pneumatic Tools For Construction rock drilling Tools

Used in coal mining, soft rock, digging pits for post brackets, digging slots, breaKing concrete ,frozen earth in construction and in installation engineering or construction works in casting industries

Advantage and feature

1. D-style die cast aluminum handle

2. Steel throttle valve

3. Barrel has built-in bridge for safety

4. Adjustable exhaust deflector

MO-1B-2B-3B-4B-Pneumatic-Jack-Hammer-Pneumatic

Model	MO-1B	MO-2B	MO-3B	MO-4B
BPM	1650	1470	1140	1020
Percussion Power	≥31J	≥39J	≥44J	≥55J
Weight	17.2 lb (7.8kg)	18.7 lb (8.5kg)	18.7 lb (8.5kg)	21.2 lb (9.6kg)
Air consumption	≤38CFM (18L/S)	≤42.4CFM (20L/S)	≤46.6CFM (22L/S)	≤53CFM (25L/S)
Rated Pressure	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa
Minimum Pressure	0.3Mpa	0.3Mpa	0.3Mpa	0.3Mpa
