Description

superdrill large rock splitter

Feature of large rock splitter:
1) Rock splitter powerful( Max:5000T ), it can split the stone or concrete easily.
2) Rock splitter high Efficiency, it can split the stone in 5-10 seconds.
3) Rock splitter long-life, the wedges stand wear and tear;
4) Rock splitter easy to operate and maintain;
5) Rock splitter now it is widely used in mineral mining(cave mining), civil engineering construction, and demolition. It is also an indispensable tool in construction, river dredging, salvation, etc.
6) Rock splitter our main Models of hydraulic pump and cylinder are as follows. If you are interested, please let us know which type of pump and cylinder you need. Our factory will offer a very competitive price for you!

For hard rock excavation, explosives or excavator hydraulic breakers are often used. However, due to vibration and noise limitations or because the rock is too hard, the restrictions on explosive blasting are becoming more and more strict, and the use of excavator hydraulic breakers is not always feasible. Therefore, using a large rock splitter is the best alternative to efficiently excavating large volumes of hard rock without blasting. Large rock splitters can be mounted on conventional excavators for hard rock-breaKing projects in a variety of environments. The most efficient, safe, and quiet mechanical method for excavating large volumes of rock is a large rock splitter.

As we all know, the core competitivenessof alargerock splitter is its wedge group. Thewedgeneedsto have ultra-high strength, special toughnessandpressure resistance, and a very lowfrictioncoefficient to meet the requirements of use. Afteryears of technical research and practice, ourcompany has successfully developedanultra-high-strength wedge-shaped group, whichhasaverylow friction coefficient, efficiently transmitsstrongsplitting force, and is durable. It canbefullycompetent for rock-breaking operationsof varioushard rocks.

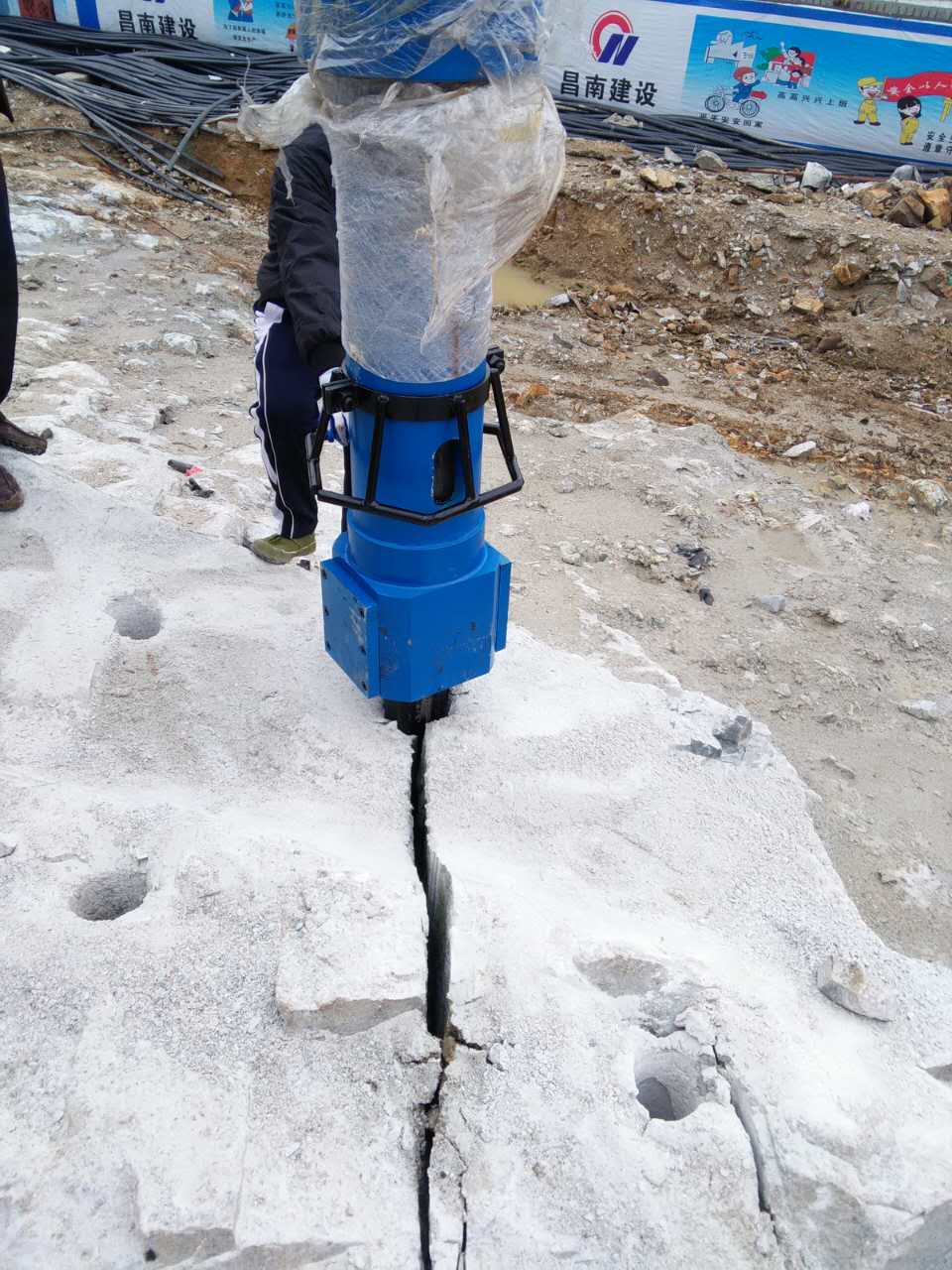

How does it work ?

Drill the hole of which diameter is bigger thanØ 80mm and 1~3 meter deep by crawler drill or leg drill.

Put the power cylinders into the holes and then push the rock toward the free face side.

Totally 1,000~ 1,400 ton power pushes the rock for 2-4 minute and then the rock will be split.

Application

On sites where there is a restriction or ban on the use of hydraulic impact hammers or conventional blasting methods.
In downtown core areas where there are by laws regarding noise and dust pollution.
Job sites near to electrical supplies, gas mains, water mains, or other services that can be adversely affected by vibration and fly rock.
Under, in, or beside historic buildings, that can be damaged by less controlled methods.
Excavating narrow trenches in rock, or concrete, dedicated to service lines such as gas, electricity, water and sewage.
Characteristics
Vibration free, noise free
Convenient Operation
High Efficiency
Low cost of rock breaking and maintenance
Versatile usage

1.Safety:

Hydraulic splitter work under the statically hydraulic environment can be controlled, it will not bring any dangerous compare to explosion, impact demolition.

2.Environmental protection:

When hydraulic splitter is working, it will not give vibration, impact, noise and dust, no any affect to surrounding environment. It works interference-free even indoor, in densely populated area or beside other equipments.

3.Economical:

Hydraulic splitter can be continuous working to complete splitting process in several seconds, the cost of function and maintenance is very low, extremely effective and economical.

4.Operation:

Easy to learn and use, only one people can operation; hydraulic splitter has long working life, convenient maintenance, the splitters and power station are easy carrying.

5.Accuracy;

It is difference to traditional demolition methods, hydraulic splitter can ensure division direction, shape and size of remove part in advance, thus the division and dismantling are in high precision.

6.Flexibility

Hydraulic splitter is compact, light, high split force, can work convenience indoor or narrow ground, also can work under the water.
