Efficient Rock Drilling and Splitting with Hydraulic Machine

HomeProductsSplitting & Demolition Big Hydraulic Rock Splitter for ExcavatorEfficient Rock Drilling and Splitting wi
Efficient Rock Drilling and Splitting with Hydraulic Machine Efficient Rock Drilling and Splitting with Hydraulic Machine

Efficient Rock Drilling and Splitting with Hydraulic Machine

  • Product Item:007
  • Name: Rock Drilling and Splitting with Hydraulic Machine
  • Model:SPD-100,SPD-200,SPD-300
  • Applicable excavator(tons) :25-55ton
  • Usage: Mining, quarrying, breaking, splitting
  • Category:Big Hydraulic Rock Splitter for Excavator

  • Sent E-mail Inquiry

    Description

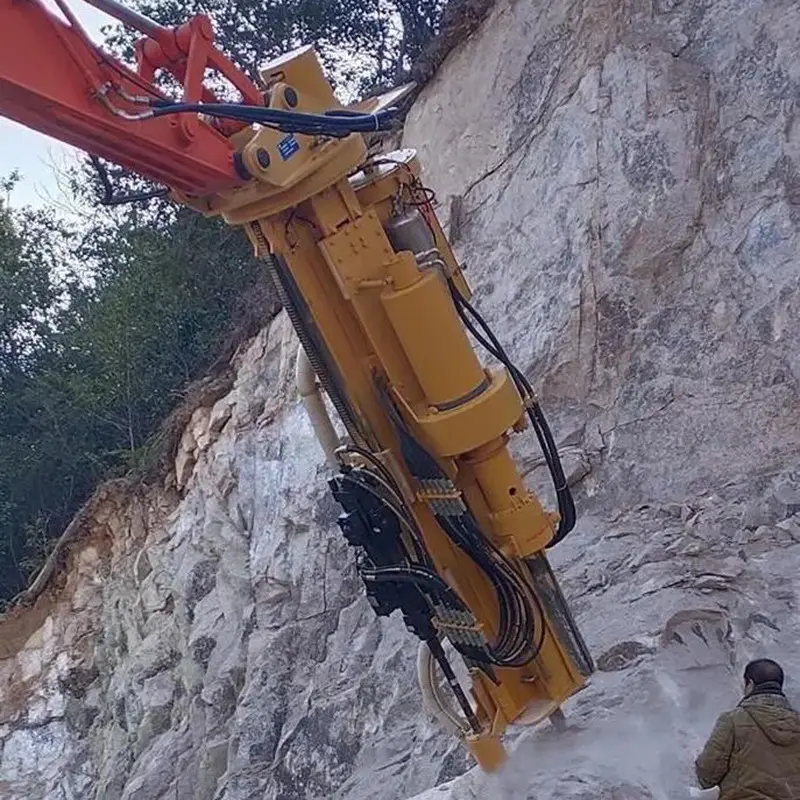

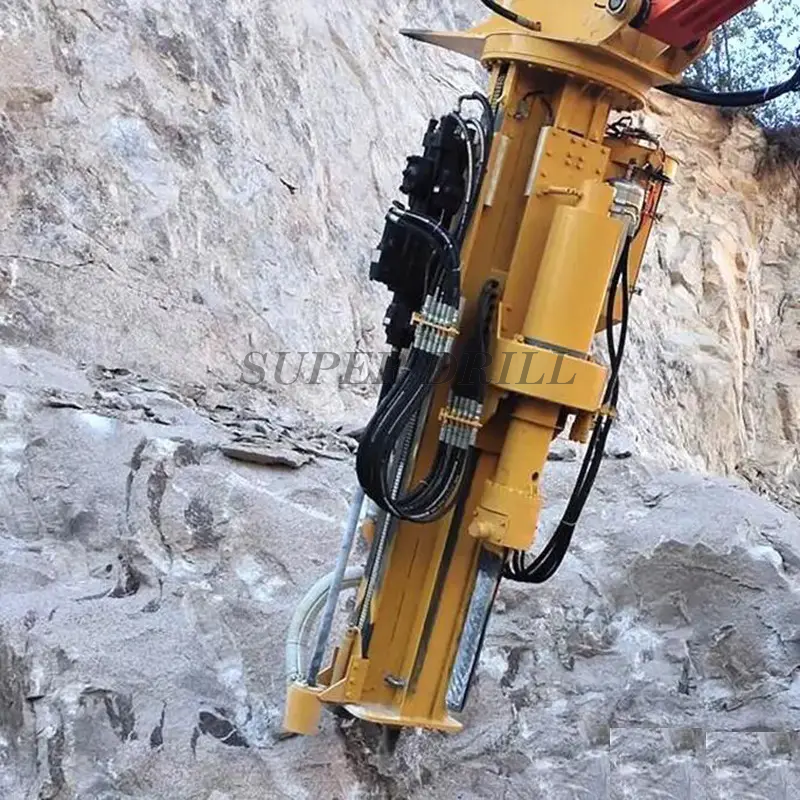

    Efficient rock drilling and Splitting with Hydraulic Machine

    Hydraulic Rock Splitting Machine is mainly used for construction stone mining operations: secondary disintegration of large ore (metallic ores, non-metallic minerals); partial and complete demolition of concrete components (cement pavement, machine tool foundation, bridge and house components), and the above-mentioned fields Compared with the traditional operation method, the splitting machine has a series of advantages such as simple structure, convenient operation, high operation efficiency, low cost,safety, energy saving, and energy saving management.
    Compared with other similar products, the Hydraulic Rock Splitting Machine has low price, high efficiency, good performance, andis more suitable for the secondary disintegration of large rock ores.

    Efficient Rock Drilling and Splitting with Hydraulic Machine
    One, the main performance of the splitter:
    No vibration, no impact, no noise, no dust ;
    Splitting can be completed within a few seconds, high work efficiency
    Controllable splitting, dismantling, and splitting size
    Moderate weight, simple operation, convenient maintenance

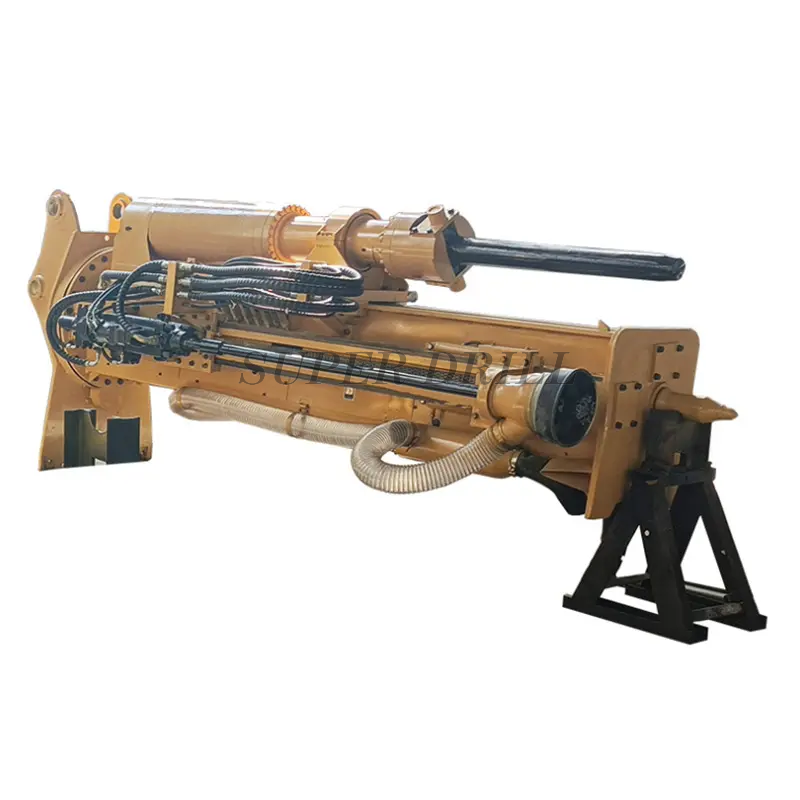

    SPD-100  Rock Drilling and Splitting with Hydraulic Machine:
    ( include the Dedusting system and Screw air compressor)
    Size 4250*1300*1500mm
    Total weight 4.2t
    Hydraulic drill YH210
    Hole diameter 115mm
    Hole depth 1500mm
    Drill speed 500-1200mm/min
    Impact power 18kw
    Impact pressure 175bar
    Impact oil flow 80-100L/min
    Impact energy 300J
    Rotation flow 30-44L/min
    Rotation pressure 150bar
    Rotatiom torque 830N.m
    Rotary drill speed 250Rpm
    Max worKing flow 250L/min
    Rated pressure 180bar
    Hydraulic splitter ANZP320
    Cylinder diameter 320mm
    splitting pressure ≤315bar
    Inflationary force 5000t
    Control system Electrohydraulic proportional valve    +wireless remote control
    Dedusting system Include
    Screw type air compressor LGCY-5.0/8
    Air displacement 5m3/min
    Air pressure 8 bar
     SPD-100 Rock Drilling and Splitting with Hydraulic Machine
