Description

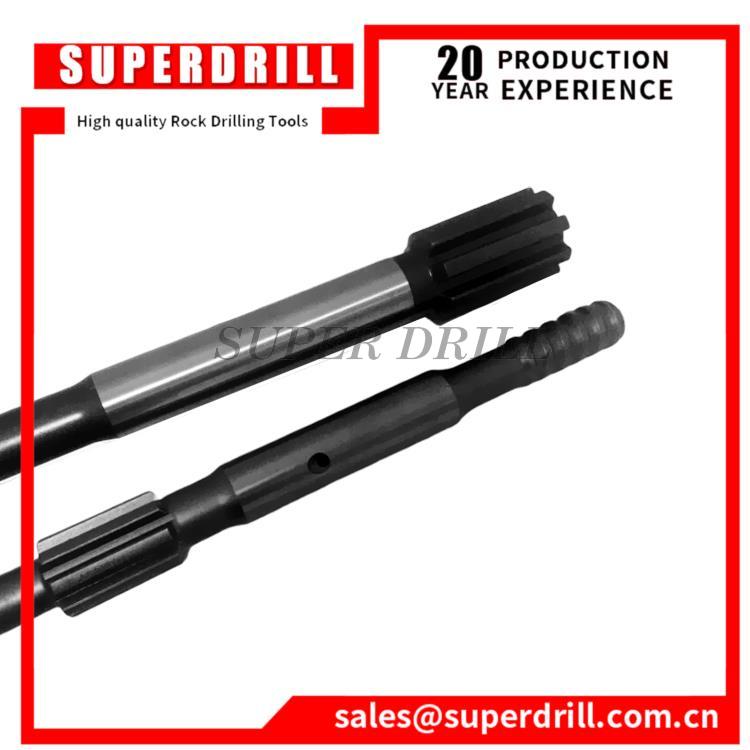

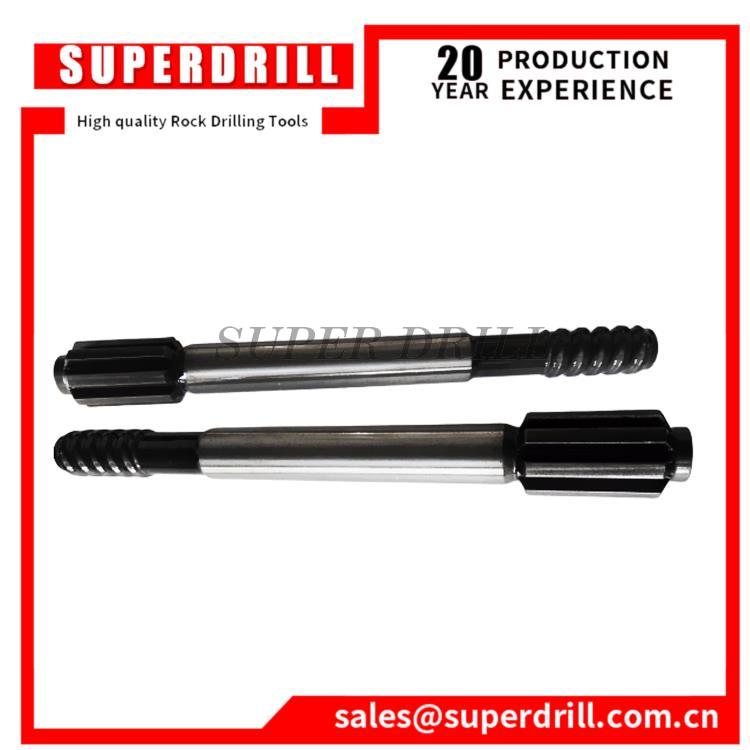

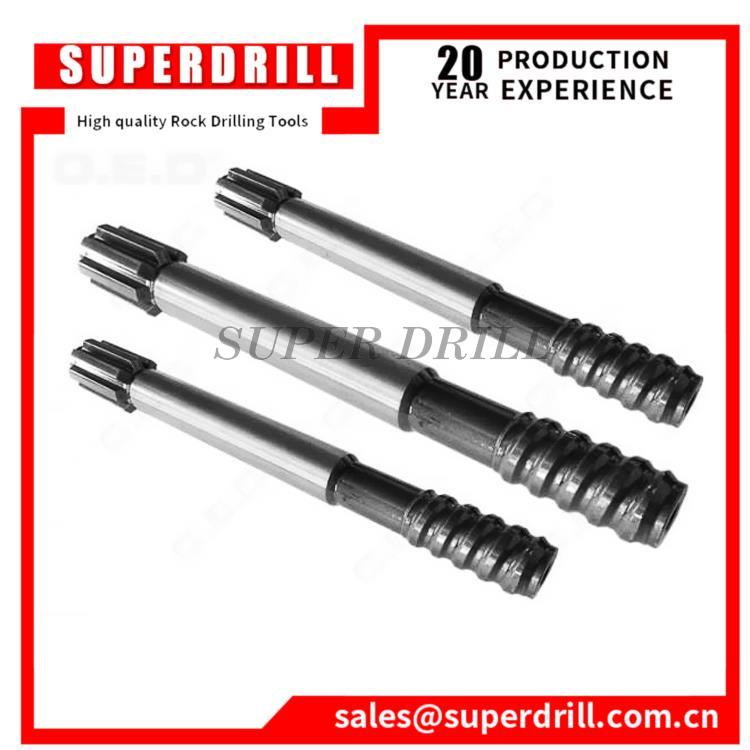

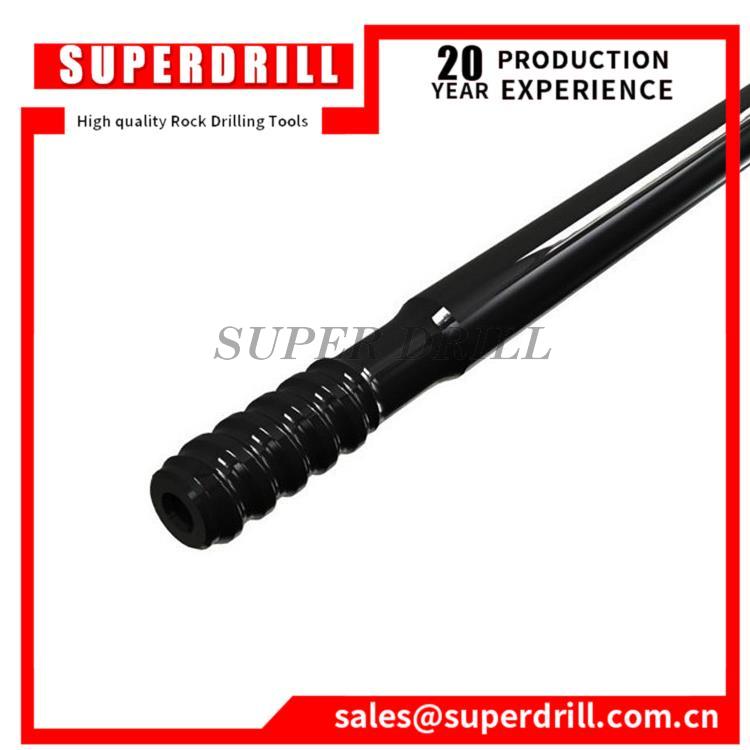

Ingersoll Rand YH 60A rock drilling Machines shank adapter
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Applications
• Underground mining
• Tunneling,quarrying
Specification of shank adapter
| BBC 54, BBC 120 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 380 | 38 | 9-11 |
| R38 | 390 | 38 | 9-11 |
| T38 | 390 | 38 | 9-11 |
| BBE 57 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R38 | 447 | 45 | 14.30 |
| T38 | 540 | 45 | 14.30 |
| T45 | 540 | 45 | 14.30 |
| Boart HD 155 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| R32 | 580 | 55 | - |
| T38 | 580 | 55 | - |
| Furukawa HD 609 | |||
| Thread | Length(mm) | Dia.(mm) | Flushing Tube(mm) |
| T38 | 690 | 450 | - |
| T45 | 690 | 450 | - |
