Description

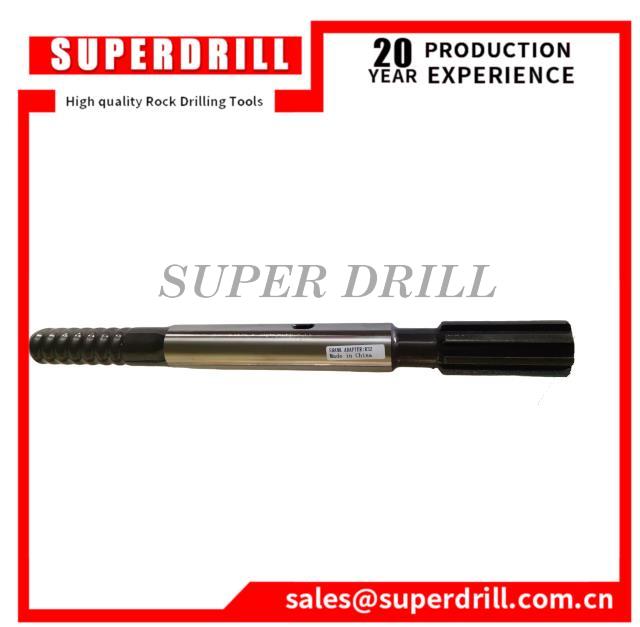

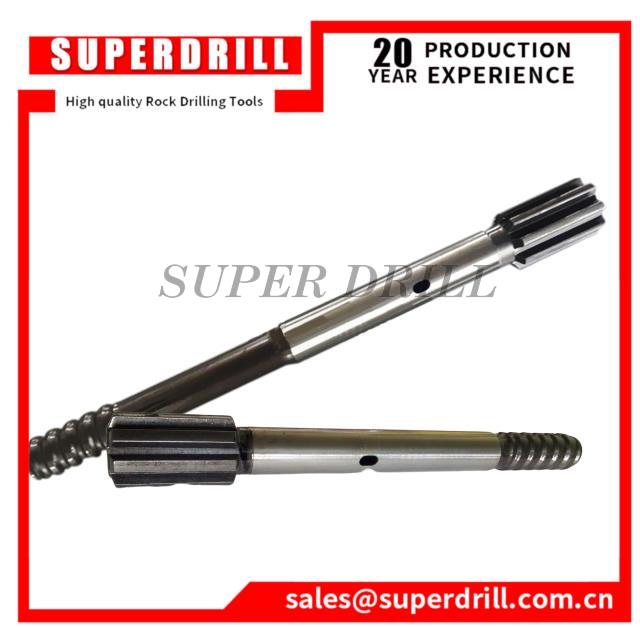

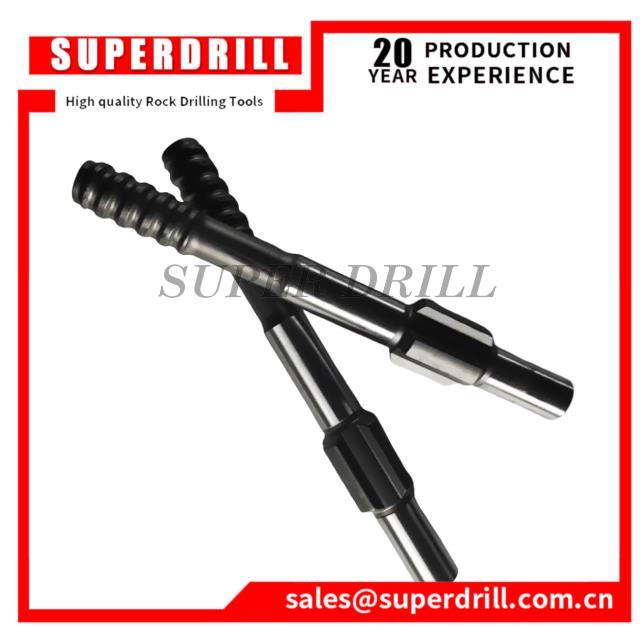

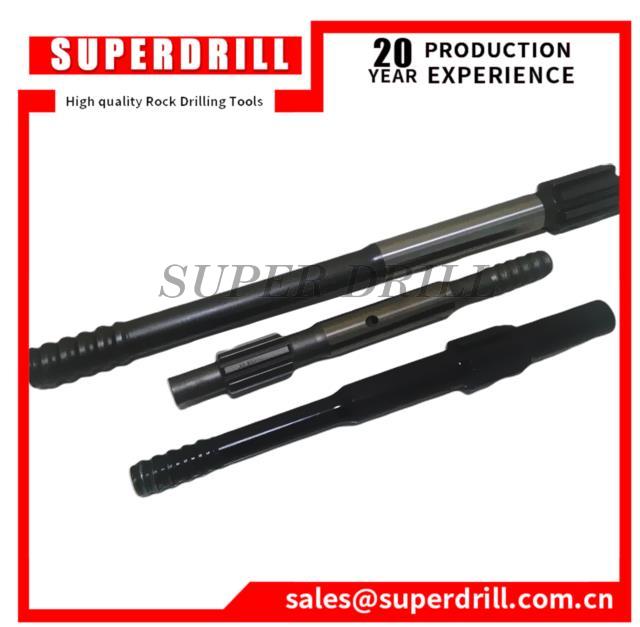

Montabert shank adapters For Drill Machine Model Hc 40
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Application
• Underground mining• Tunneling• Quarry
| Part Number | Product Code and Brief Description | Thread | Length (mm) | Weight (kg) |
| 4148301123 | HC 40 [G1] | R32 | 447 | 3.9 |
| 4148301124 | HC 40 [G2] | R38 | 447 | 4.1 |
| 4148301125 | HC 40 [G3] | T38 | 447 | 4.1 |
| 4148301126 | HC 40 [G1] | R32 | 270 | 4.1 |
| 4148301127 | HC 40 [G2] | R38 | 320 | 4.4 |
| 4148301128 | HC 80, HC 90, HC 105, HC 120 [G1] | R32 | 440 | 5.1 |
| 4148301129 | HC 80, HC 90, HC 105, HC 120 [G2] | R38 | 440 | 5.3 |
| 4148301130 | HC 80, HC 90, HC 105, HC 120 [G3] | T38 | 440 | 5.3 |
| 4148301131 | HC 80, HC 90, HC 105, HC 120 [G4] | T38 | 500 | 5.8 |
