Hydraulic piston-powered rock splitter

HomeProductsSplitting & Demolition Hydraulic rock splitterHydraulic piston-powered rock splitter

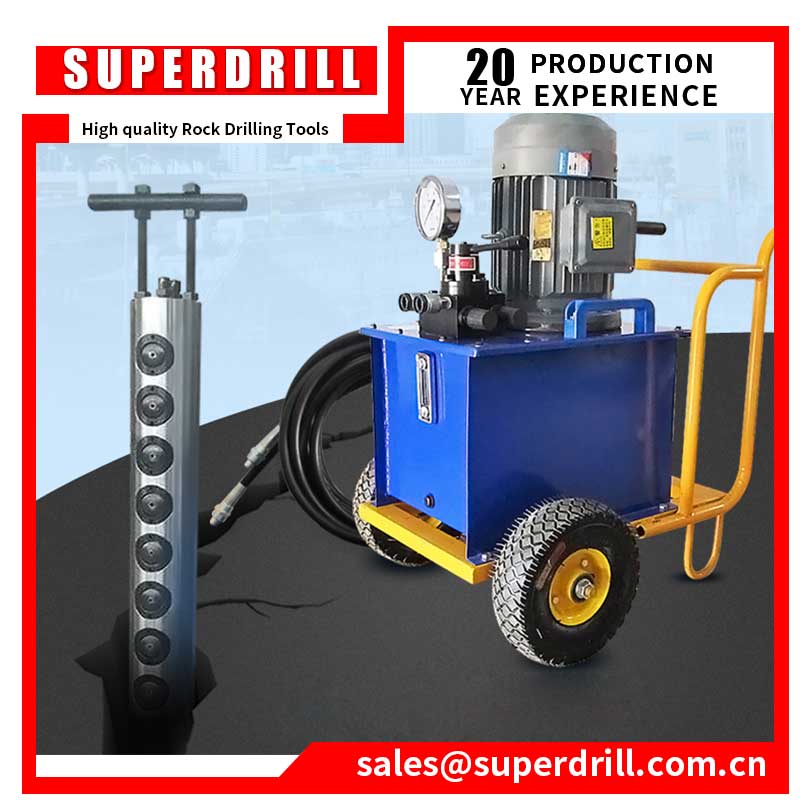

Hydraulic piston-powered rock splitter

  • Product Item:007
  • Name: Hydraulic piston-powered rock splitter
  • Model:SP90~SP250
  • Hole Diameter:90mm-250mm
  • Actual Splitting Force:400T-1250T
  • Category:Hydraulic rock splitter

  • Sent E-mail Inquiry

    Description

    The hydraulic rock & concrete splitter is the most suitable tool for Large area demolition. It has many advantages:

    1) Powerful( Max:1000T ), it can split the stone or concrete easily.
    2) High Efficiency, it can split the stone in 5-10 seconds.;
    3) Long-life, the wedges stands wear and tear;
    4) Easy to operate and maintain;
    5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
    6) Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.

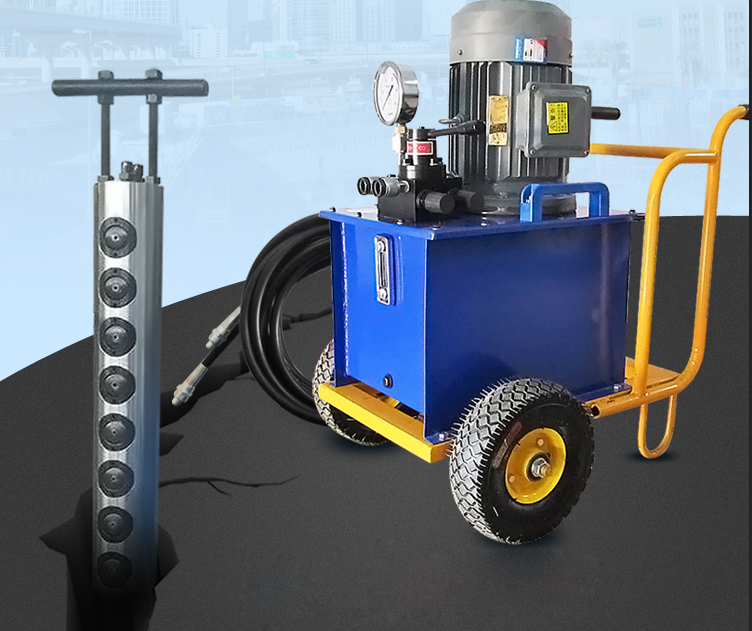

    Hydraulic piston-powered rock splitter

    型号 Model 钻孔孔径 Drilling Hole Diameter 钻孔深度 Drilling Hole Depth 实际分裂力 Actual Splitting Force/Pc 钻孔间距 Drilling distance 裂缝宽度 Crack width 机重 Weight 额定工作压力 Rated WorKing Pressure
    SP-90 90MM >1000MM 400T 500 ~ 700MM 25 ~ 30MM 32kg/pc 120Mpa
    SP-110 110MM >1000MM 411T 1000 ~ 1500MM 25 ~ 30MM 47kg/pc 120 ~ 150 Mpa
    SP-115 115MM >1000MM 420T 1000 ~ 1500MM 25 ~ 30MM 57kg/pc 120 ~ 150 Mpa
    SP-130 130MM >1000MM 520T 1000 ~ 2000MM 25 ~ 30MM 80kg/pc 120 ~ 150 Mpa
    SP-150 150MM >1000MM 600T 1000 ~ 2500MM 25 ~ 30MM 100kg/pc 120 ~ 150 Mpa
    SP-175 175MM >1000MM 707T 1200 ~ 3000MM 25 ~ 30MM 139kg/pc 120 ~ 150 Mpa
    SP-250 250MM >1200MM 1250T 1500 ~ 5000MM 25 ~ 30MM 330kg/pc 120 ~ 150 Mpa
