Description

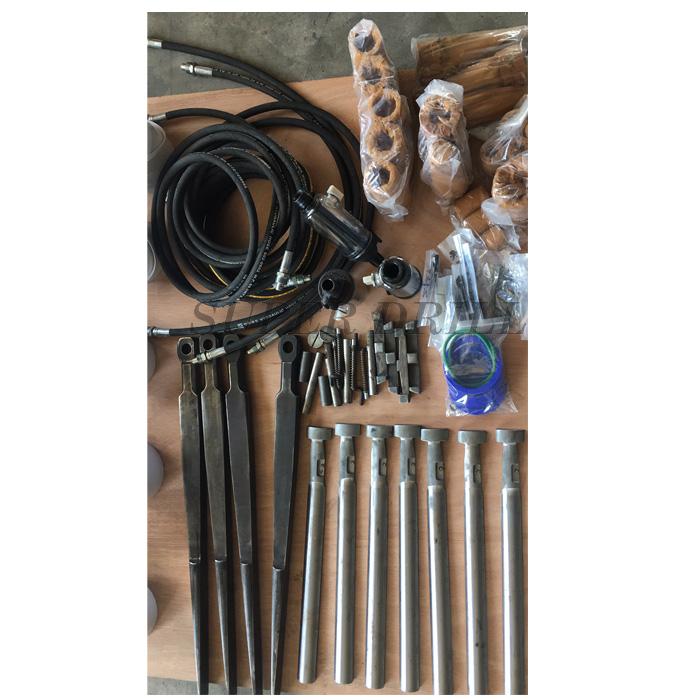

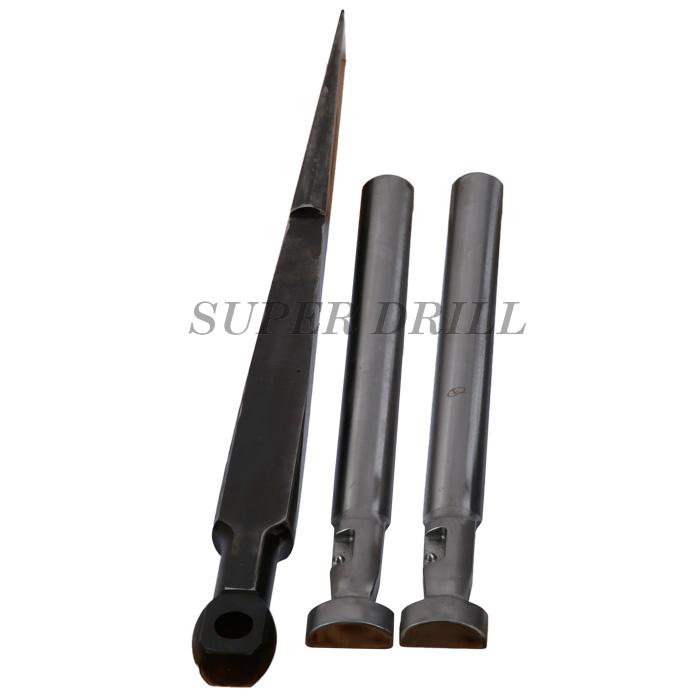

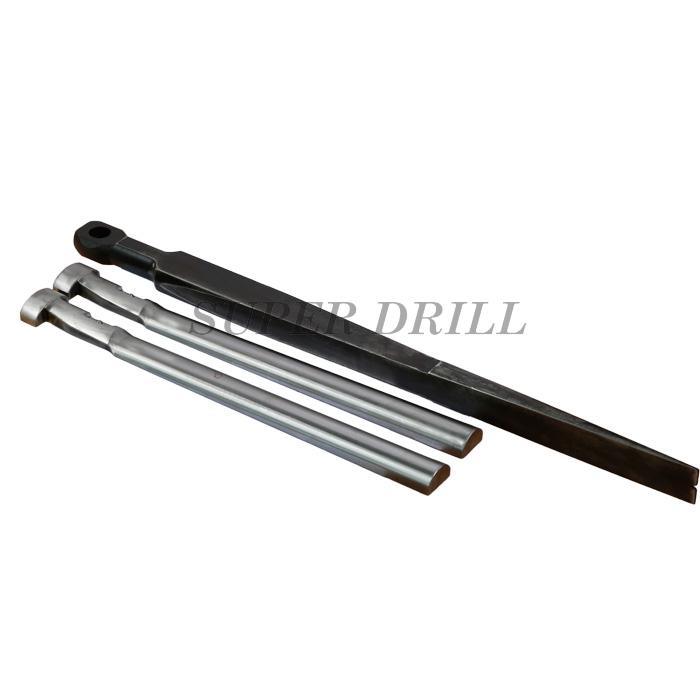

Darda Hydraulic Rock Splitter cylinder C12(N) with diesel engine
Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.
we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it have the exact same shape,same parts and same performance as the original one.
Whatsapp/Phone:+86 18186993613
E-mail: sales@superdrill.com.cn
|
Model Number |
Hole Diameter (mm) |
Counter Wedge Dia(mm) |
Counter Wedge Length (mm) |
Min hole depth (mm) |
Actually splitting force(ton) |
Weight(kg) |
Length Cylinder Body(mm) |
Splitting Distance |
|
SPD250 |
42-44 |
40 |
250 |
550 |
450 |
34 |
700 |
10-18 |
|
SPD350 |
44-46 |
42 |
350 |
650 |
450 |
35 |
700 |
10-18 |
|
SPD450 |
46-48 |
44 |
450 |
750 |
450 |
36 |
700 |
10-18 |
Inner diameter of the cylinders:
Darda cylinder: 105mm
Technical data of Diesel engine
|
Power model |
overall size(mm) |
Weight(kg) |
Oil pumping station reserves(L) |
Engine Power |
WorKing pressure(MPa) |
flux(L/m) |
Towable of splitter quantity(pc) |
|
Diesel engine |
1150*1180*940 |
260 |
40 |
5.15KW |
55-60 |
2-13 |
1-10 |
Technical data of Gasoline engine
|
Power model |
overall size(mm) |
Weight(kg) |
Oil pumping station reserves(L) |
Engine power |
Working pressure(MPa) |
Flux(L/m) |
Towable of splitter quantity(pc) |
|
Gasoline model |
1200*1170*800 |
100 |
40 |
7.5HP |
55-60 |
2-13 |
1-10 |
Technical data of electric engine
|
Power model |
overall size(mm) |
Weight |
Oil pumping station reserves (L) |
Engine power |
Working pressure(MPa) |
Flux |
Towable of splitter quantity(pc) |
|
|
(kg) |
(L/M) |
|||||
|
Electric motor |
|
23 |
5 |
0.75KW(220V/380V) |
55-60 |
0.7 |
1 |
|
384*280*620 |
75 |
30 |
3KW(380V) |
55-60 |
2 |
1-3 |
|
|
|
|
|
7.5KW(380V) |
55-60 |
13 |
1-10 |
Technical data of pneumatic model
|
Power model |
overall size(mm) |
Weight |
Oil pumping station reserves (L) |
rotating speed(r.p.m) |
Rated power(kw) |
Oil flux(L/m) |
Working pressure(MPa) |
Towable of splitter quantity(pc) |
|
Air motor |
384*280*620 |
70kg |
30 |
2000 |
4.10 |
2-13 |
55-60 |
1-10 |
Note:Please use the 46# or 68# antiwear hydraulic oil.
