Description

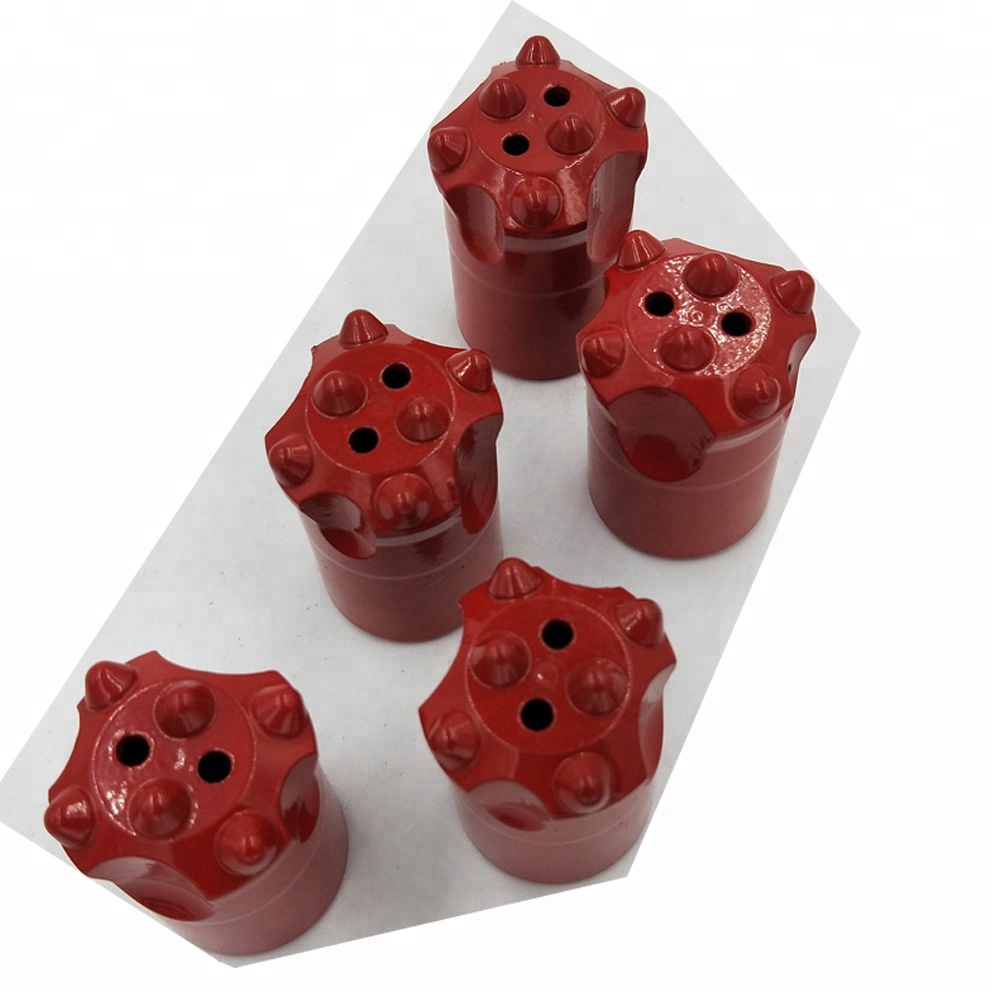

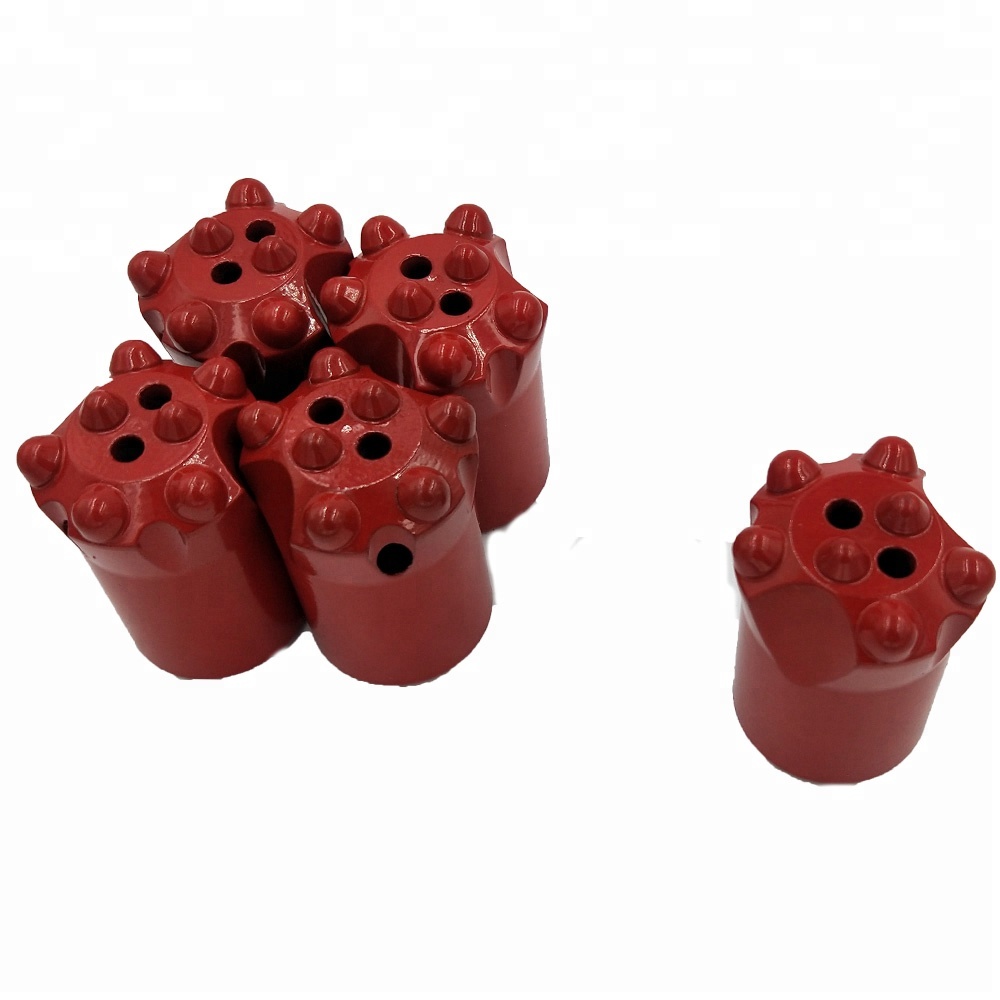

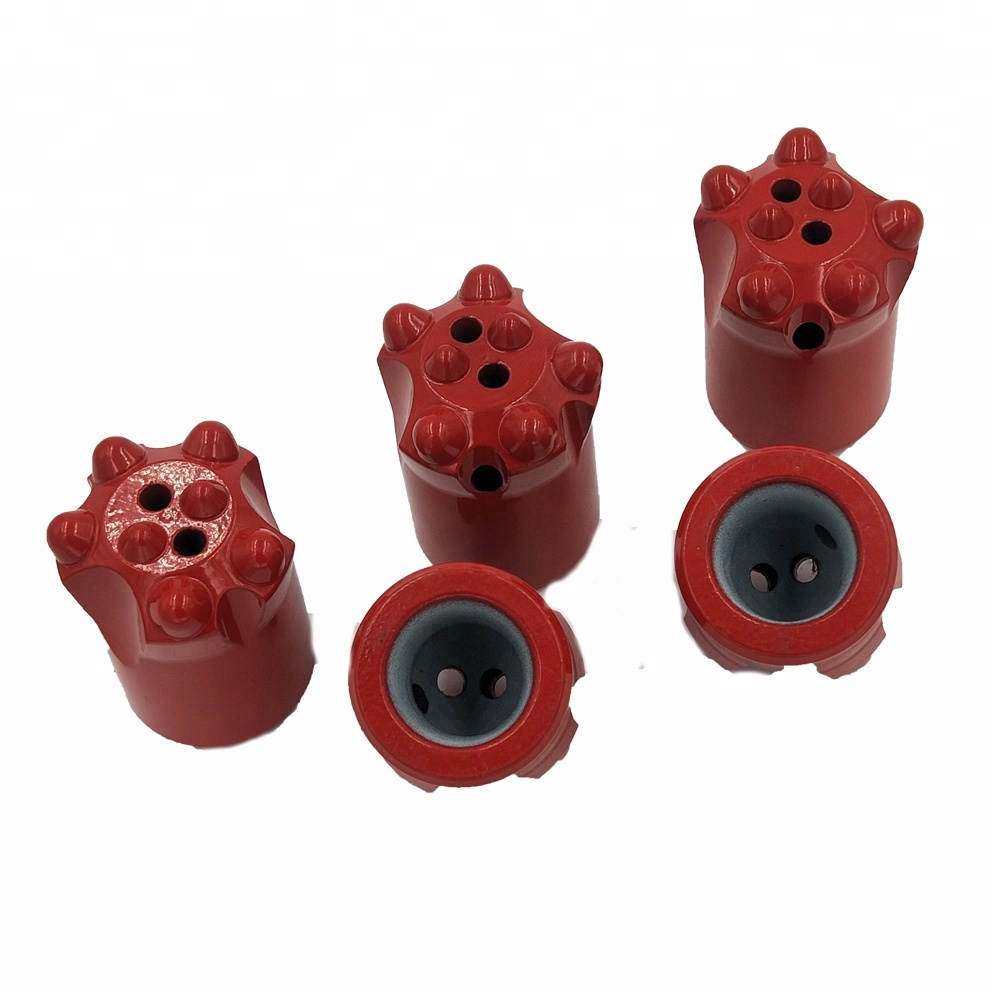

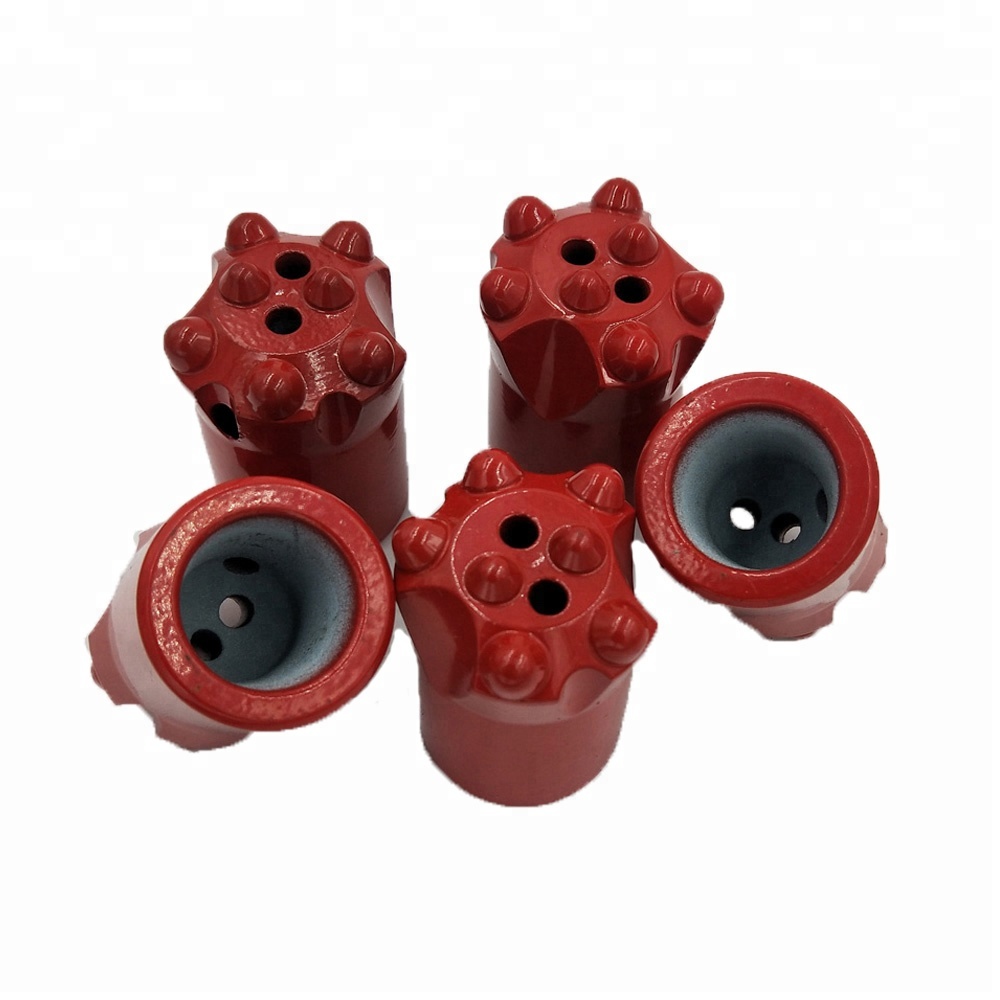

Tapered button bit is the most popular tapered drill bit with a wide selection of head diameters from 26mm to 48mm. With carbide buttons hot pressed on the bit skirts, taper button bit has a good drilling performance and excellent in longevity.
We manufactuer various taper button bit in different degrees as below:
Bit diameter: 32mm ~ 48mm;
Tapered degree: 4°46’, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Buttons configuration: 4 buttons, 5 buttons, 6 buttons, 7 buttons, 8 buttons, 9 buttons;
The main information of tapered button bit
|
For 22 mm (7/8") rod. 11° taper. Short Skirt.Taper Button Bit |
||||||||
|
Diameter |
Buttons |
Flushing hole |
Length |
Part Number |
Weight |
|||
|
mm |
inch |
Gauge |
Front |
Side |
Front |
mm |
Kg |
|
|
32 |
1 1/4 |
3x8 |
2x7 |
1 |
1 |
50 |
TB32H22S11C321 |
0.22 |
|
32 |
1 1/4 |
6x7 |
2x7 |
1 |
1 |
50 |
TB32H22S11C621 |
0.35 |
|
32 |
1 1/4 |
6x7 |
2x7 |
1 |
2 |
50 |
TB32H22S11C622 |
0.35 |
|
34 |
1 11/32 |
3x8 |
2x7 |
1 |
1 |
50 |
TB34H22S11C321 |
0.39 |
|
34 |
1 11/32 |
4x8 |
2x7 |
1 |
2 |
50 |
TB34H22S11C422 |
0.39 |
|
34 |
1 11/32 |
5x7 |
2x7 |
1 |
1 |
50 |
TB34H22S11C521 |
0.40 |
|
35 |
1 3/8 |
6x7 |
2x7 |
1 |
2 |
50 |
TB35H22S11C622 |
0.41 |
