Description

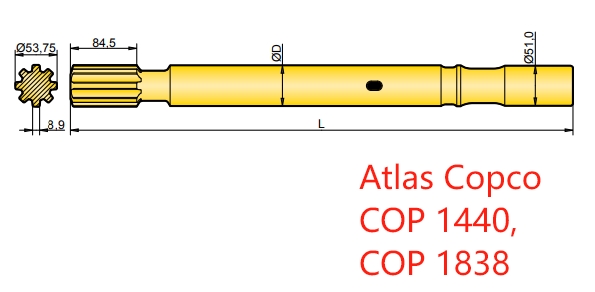

Atlas Copco COP 1440 and COP 1838 shank adapters for Bolting
Product Numbers: 90515896, 90515967
| Product Number | Product Code | Thread Type | Length (L) mm | Diameter (D) mm | Weight (approx. kg) | Flushing Tube Diameter (mm) |
|---|---|---|---|---|---|---|
| 90515896 | 403-09106-F10 | R32 (1¼”) | 640 | 52 | 9.1 | - |
| 90515967 | 404-09106-F10 | R38 (1½”) | 650 | 52 | 8.9 | - |
The Atlas Copco COP 1440 and COP 1838 Shank Adapters are designed for bolting applications, specifically utilizing the SDA (Self-Drilling Anchor) and IRIA (Integrated Rotary Injection Adapter) systems. The R32 variant has a length of 640 mm and weighs approximately 9.1 kg, while the R38 variant is 650 mm long and weighs about 8.9 kg. Both adapters have a diameter of 52 mm.
These adapters are engineered to provide reliable performance and effective energy transfer during drilling and bolting tasks, maKing them suitable for various applications in the field. If you have any questions about these products or need further assistance, please feel free to reach out. We're here to help you find the best solutions for your bolting needs!
