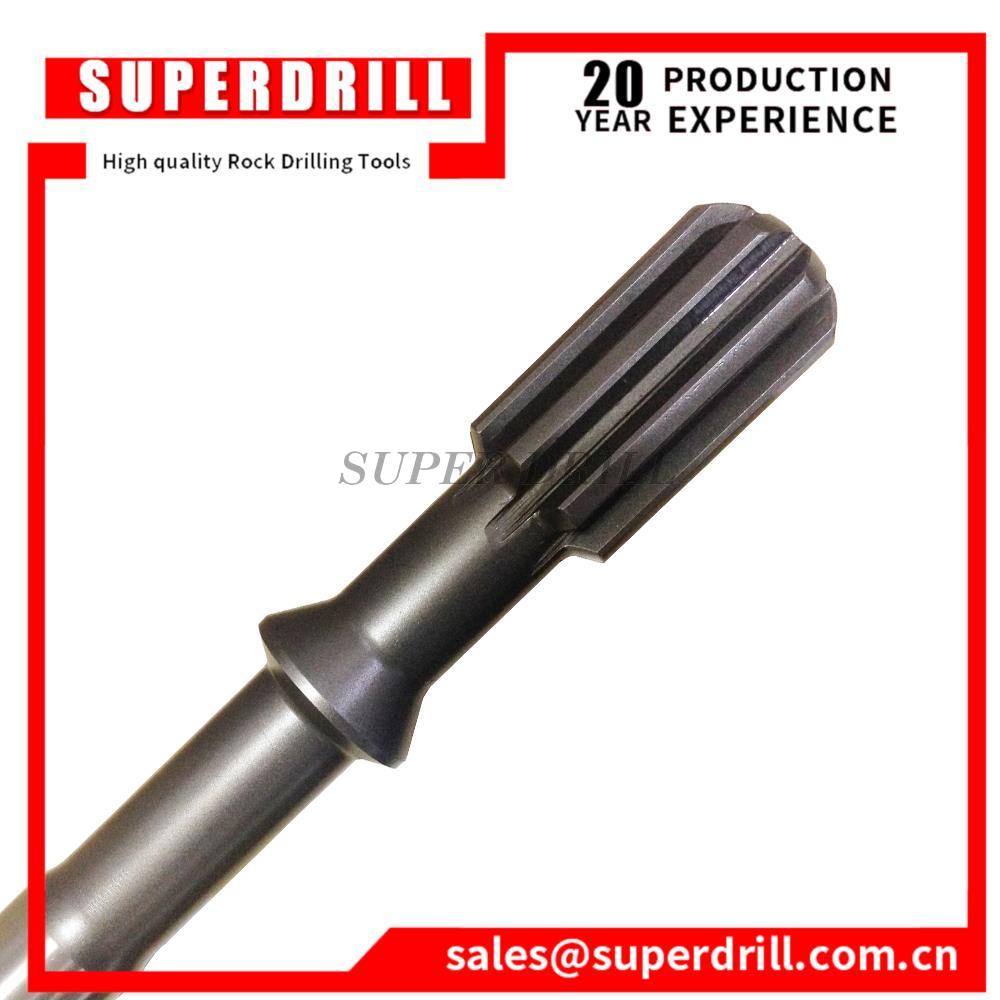

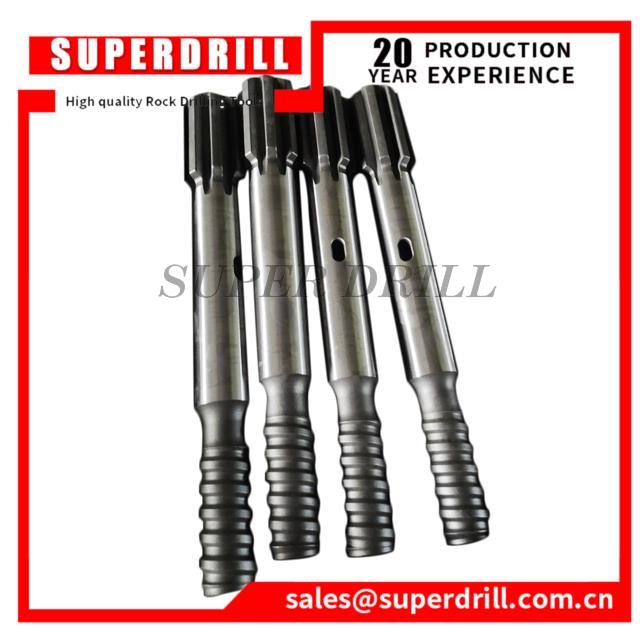

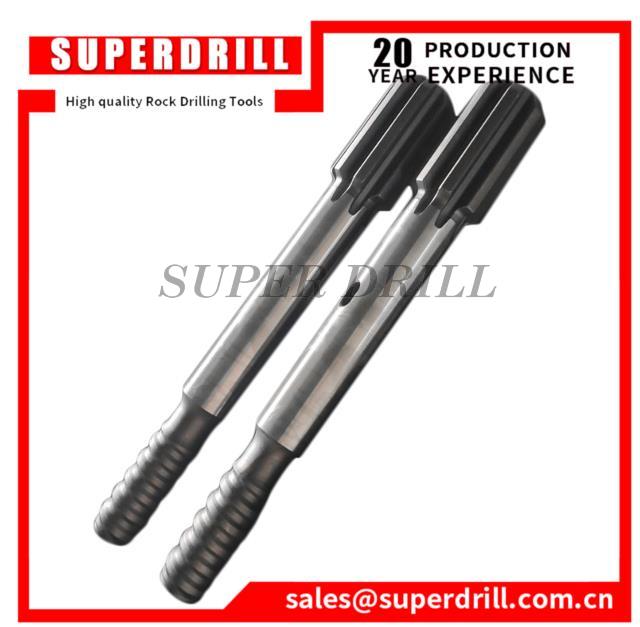

T38 T45 T51 Hc120 Hc120rp Shank Adapters For Montabert Hydraulic Drifter

HomeProductsTop Hammer Drilling Tools Shank Adapter T38 T45 T51 Hc120 Hc120rp Shank Adapters

Description


shank adapter is used for transmitting power between drill machine and drill stems.The power from drill machine is transmitted to drill bits. We are able to offer a comprehensive range of shank adapters for different rock drills.

Shank adapter equivalent to:


  • AtlasCopco shank adapter

  • Boart shank adapter

  • Furukawa shank adapter

  • Gardner-Denver shank adapter

  • Ingersoll-Rand shank adapter

  • Montabert shank adapter

  • SIG shank adapters

  • Sandvik shank adapter

shank adapter | adaptador de la espiga | adaptador de cabo | Adaptateur à tige | Schaft -Adapter | sap adaptörü | per gambo | sovituskantaan | nackadapter | nakkeadapteren | adapter cholewka | adapter shank

Features:

1.High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

2. Accurate dimension of thread perfectly matches the rock drill

3. Work reliable and very cost-effective

Item Thread Length Diameter Weight Flushing Tube Part Number
mm mm kg mm
Montabert H 50, H 60, H 70Drifting R32 (1 1/4") 380 38 2.6 9-11 414832584
R38 (1 1/2") 390 38 3.1 9-11 414832585
T38 (1 1/2") 390 38 2.1 9-11 414832586
Montabert HC 40, HC 50Bench drilling R32 (1 1/4") 445 38 3.5 - 414832587
R38 (1 1/2") 445 38 4 - 414832588
T38 (1 1/2") 445 38 3.8 - 414832589
Montabert HC 40, HC 50Bolting, Drifting R32 (1 1/4") 370 38 3 - 414832590
R38 (1 1/2") 370 38 3.3 - 414832591
T38 (1 1/2") 370 38 3.2 - 414832592
Montabert HC 80, HC 120Bench Drilling T45 (1 3/4") 492 45 5.6 - 414832593
T45 (1 3/4") 590 45 6.4 - 414832594
Montabert HC 80, HC 90, HC 105, HC 120Drifting R32 (1 1/4") 440 38 3.6 - 414832595
R38 (1 1/2") 440 38 3.9 - 414832596
T38 (1 1/2") 440 38 3.9 - 414832597
Montabert HC 80, HC 90, HC 105, HC 120Bench Drilling T38 (1 1/2") 500 38 4.2 - 414832598
Montabert HC 80, HC 90, HC 105, HC 120Drifting T38 (1 1/2") 500 38 4.4 - 414832599
Montabert HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RPBench Drilling T38 (1 1/2") 770 45 8.4 - 414832600
T45 (1 3/4") 770 45 8.6 - 414832601
Montabert HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RPBench Drilling T38 (1 1/2") 670 45 7.2 - 414832602
T45 (1 3/4") 670 45 7.5 - 414832603
Montabert HC 120 RP, HC 150 RP, HC 155 RP, HC 158 RPBench Drilling T45 (1 3/4") 670 51 8.8 - 414832604
T51 (2") 670 51 8.9 - 414832605
Montabert HC 120 RP, HC 150 RPBench Drilling T45 (1 3/4") 770 51 10.2 - 414832606
T51 (2") 770 51 10.3 - 414832607
Montabert HC 160, HC 170Bench Drilling T45 (1 3/4") 805 60 14.8 - 414832608
T51 (2") 805 60 14.9 - 414832609
Montabert HC 200Bench Drilling T51 (2") 840 51 13.2 - 414832610
Montabert HC 200 ABench Drilling T51 (2") 865 60 16.3 - 414832611
