Description

ProDrill Manufacture and supply of  DTH hammer and DTH Bits, DTH pipe ( tube ), DTH sub adapters,  RC hammers, bits, drill rods, spares and equipment, drilling consumables for deep hole water  well  and larger diameter blasting bore hole surface drilling.

DTH Bit-QL60-170 for  deep hole water well and large diameter surface hole drilling

• Code No.: QL60-170
• Diameter: 170mm
• Air Holes No.: 2
• Gauge Buttons: 8*18mm
• Face Buttons: 10*16mm
• Face Design: Double Gauge Row
• Carbide Design: Dome
• Approx. Weight: 27KGS

rock drilling tools manufacturerSuperdrill supplies DTH Drill Bits with QL shank type are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation which have been designed to match all conceivable applications for stone quarrying, water well industries, mining and construction.

Shank type: QL40, QL50, QL60, QL80 ; and DTH Hammer bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-350mm).

Double Gauge Row face
A special design of DTH rock drill bits for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

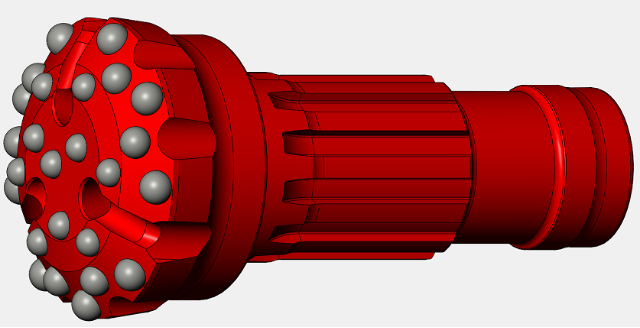

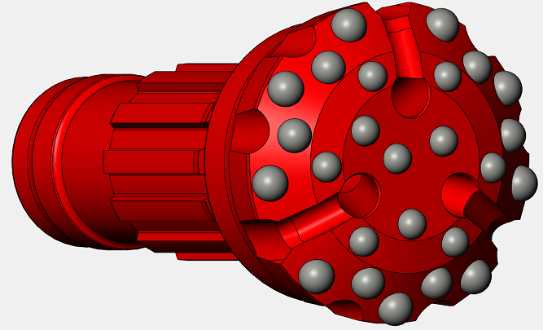

QL shank DTH drill bit with double gauge row buttons face, dome carbide buttons.

ProDrill DTH bit hot sales in Sudibeng Iron Ore, South Africa .,Letseng Mine, Lesontho perfect with Atlas Copco, FLEXROC D60/D65 SmartROC D60/D65, using special designed DTH bit QL60-165, 171mm, DTH drill rod length 5 meters, Max depth 55 meters.With high penetration rate ,and long time life in drilling.

last year, Prodrill CEO Simon visited South Africa’s Sedibeng Iron Ore, and ,Letseng Diamond Mine, Lesontho and other minning areas, pls read  article written by him :
https://mp.weixin.qq.com/s/w6LoBkfTz8zRiY_ZhzB4NQ

ProDrill tools welcomed by PMG Mining，Kumba Mining, Khunani mining , Sishen Mining, Sudibeng Iron Ore…

Take advantage of our experience

Over the years we’ve worked on water monitoring bores, water production bores, dewatering bores and artesian bores which means if you’ve got to drill a water bore, we’ve got the skillset to fulfil the brief. Our purpose built DTH bit ahd DTH hammers and support equipment packages are designed to reduce unwanted downtime which means project slippages will be kept as low as possible

For more details please watch PDF online: DTHhammerbitswithQLshanksCatalogue
