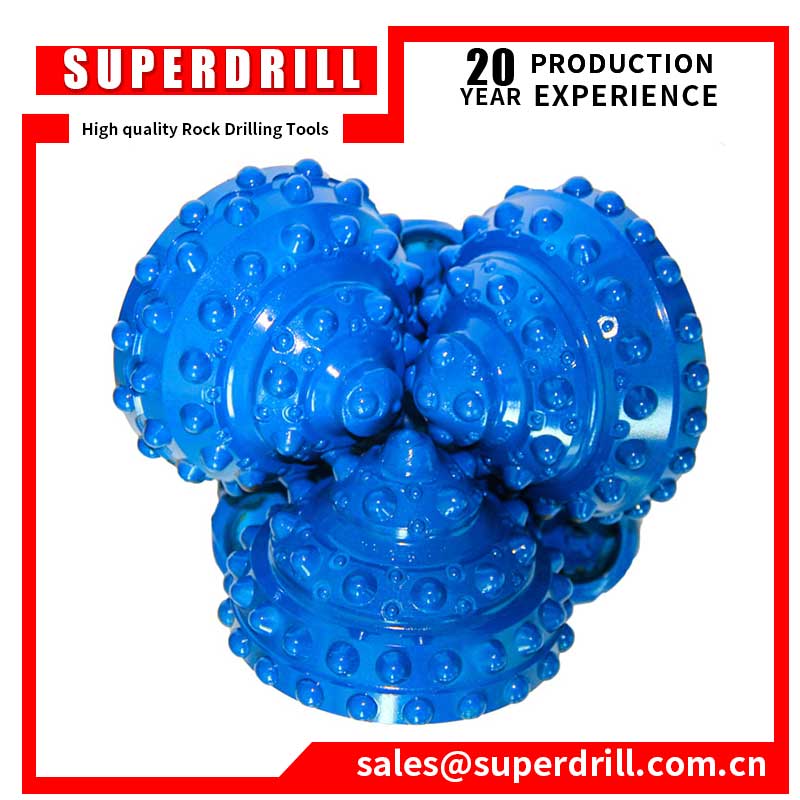

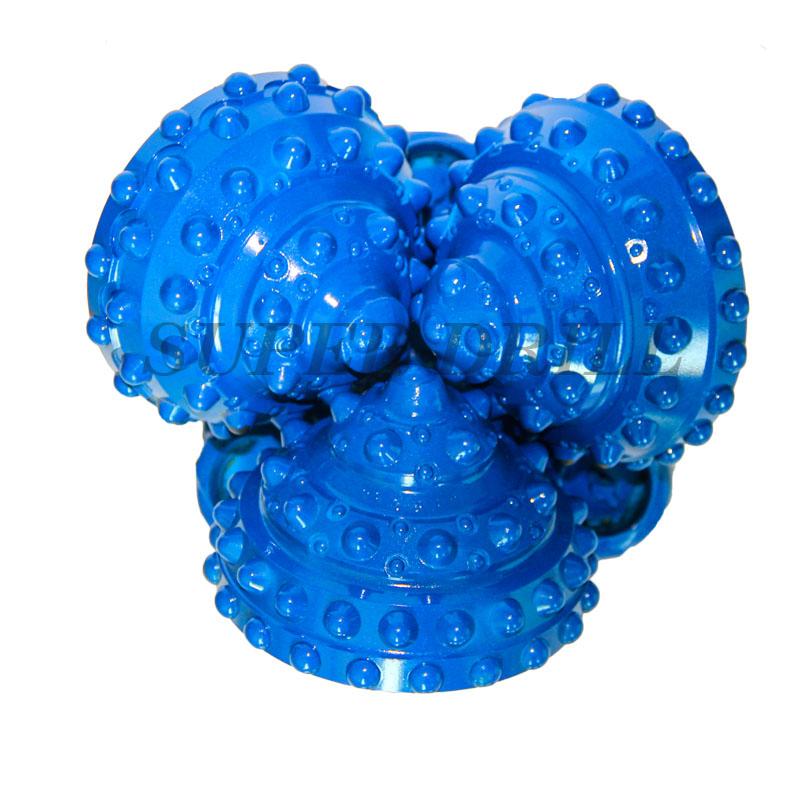

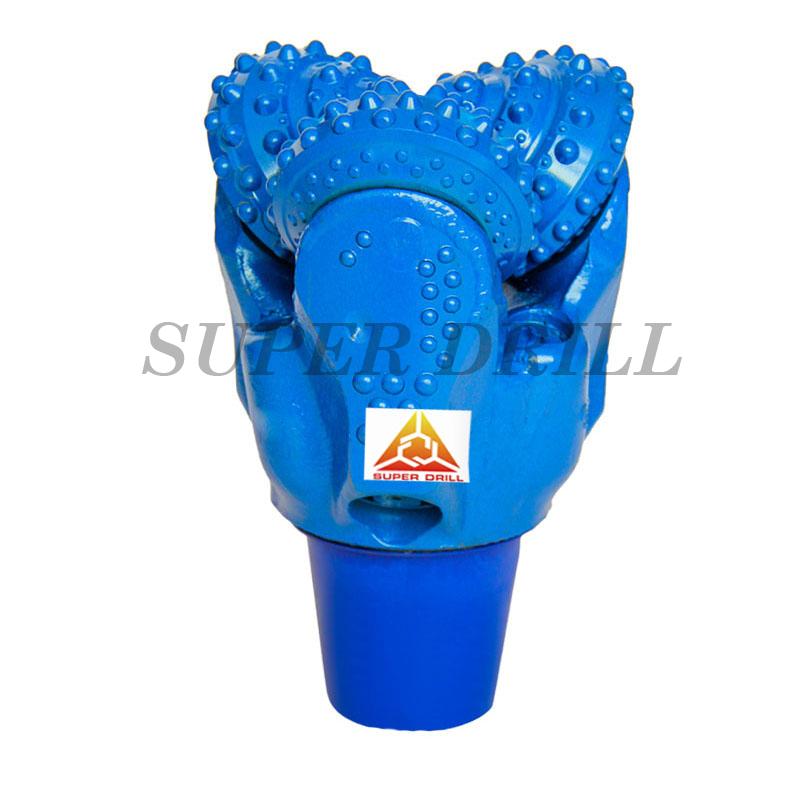

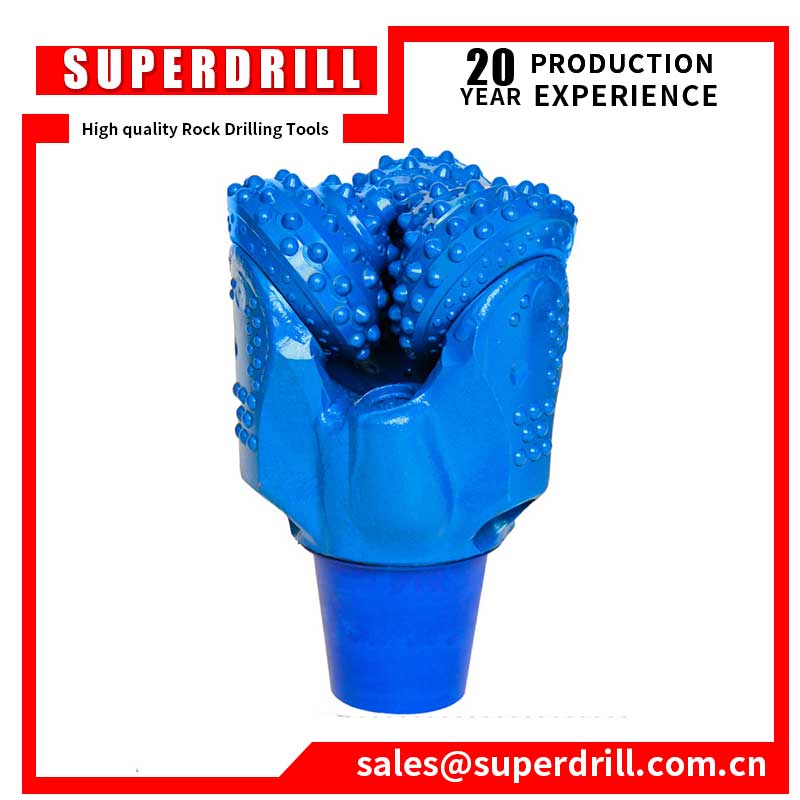

215.9MM IADC637 tci tricone bit

Product Item：007

215.9MM IADC737 tci tricone bit

NO.:SPD-637G

Nozzle Qty:3NZ

Make up Torque(KN.m):16.3~21.7

Category：Tricone bits

Description

Name: 8 1/2" IADC637 tci tricone bit

NO.:SPD-637G
Product description:TCI Tooth Tricone Bit，Elastomer sealed bearing for different applications.
Sizes range: 3 7/8 to 36 and customized according to drawings or requirements.
Certification:API &ISO:9001,compliant with IADC standard.

	Basical Parameter
	Bit Size	8 1/2"(215.9MM)
	IADC Code	637G
	Connection	4 1/2"API reg pin
	Nozzle Qty	3NZ
	Make up Torque(KN.m)	16.3~21.7
	Operating Parameter
	Rotary Speed(rpm)	80~40
	Weight on Bit(KN/MM)	0.5~1.2
	Formation	Hard formation with high compressive strength ,such as limestone,sandstone,dolomite,hard gypsum,marble,etc.
