Description

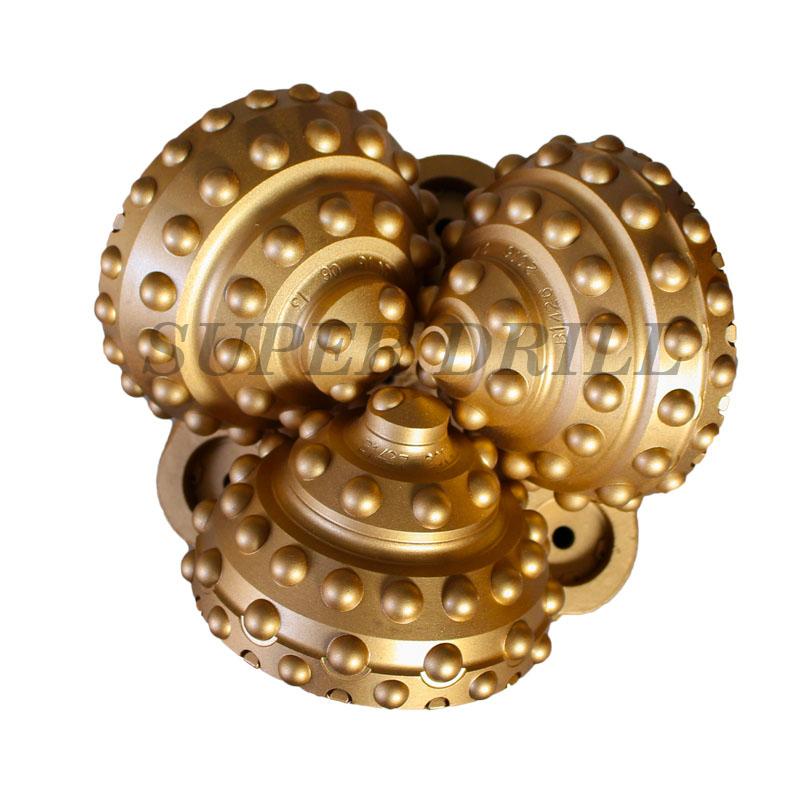

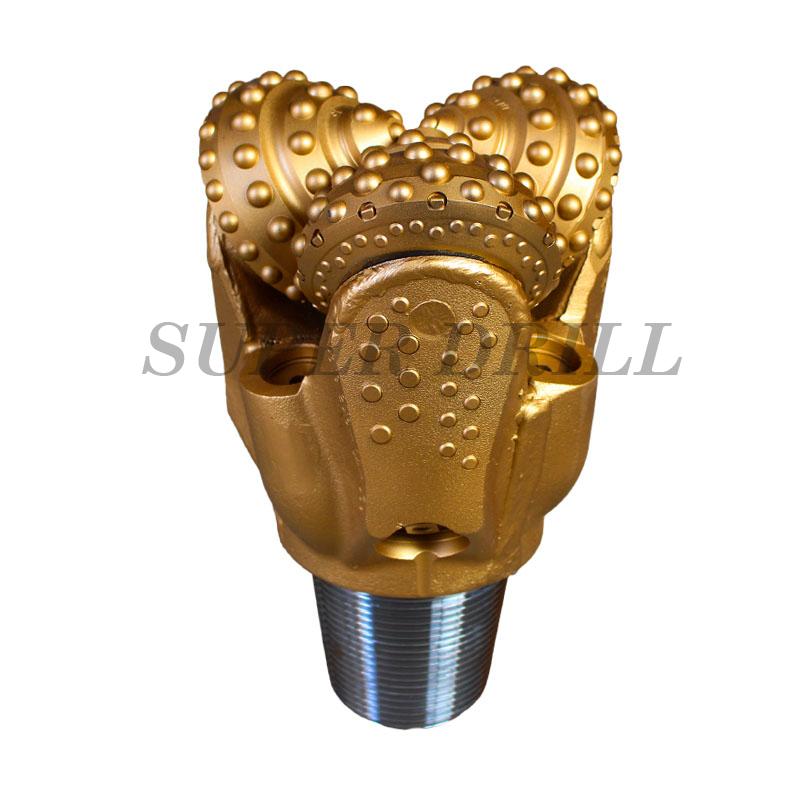

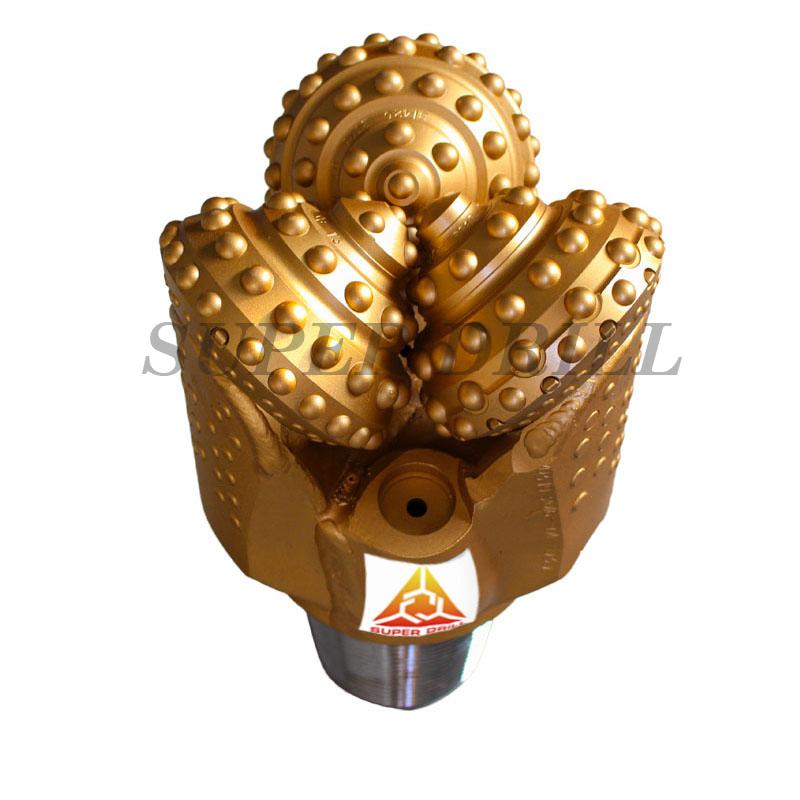

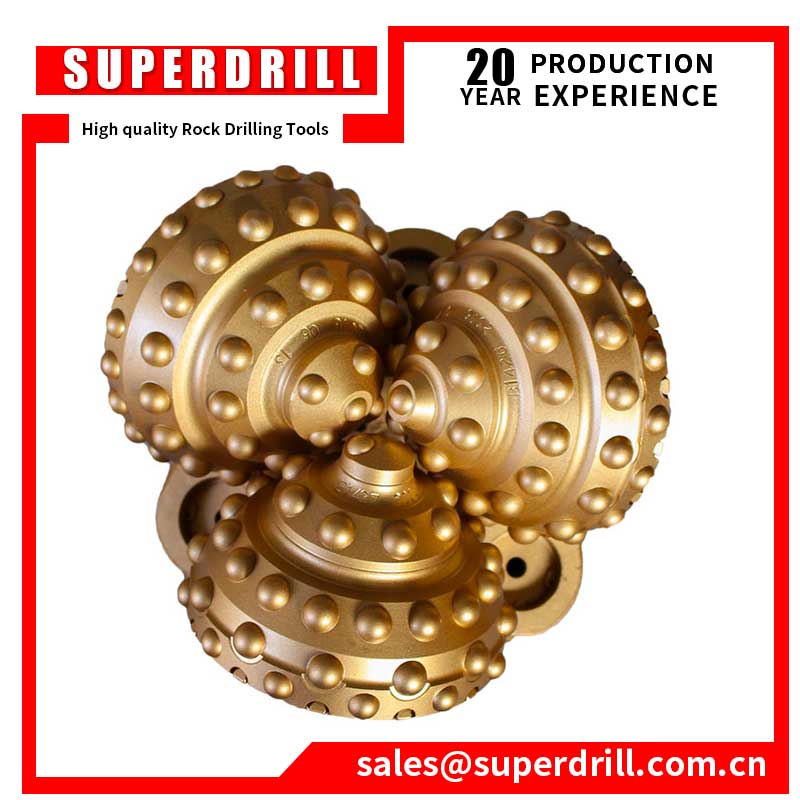

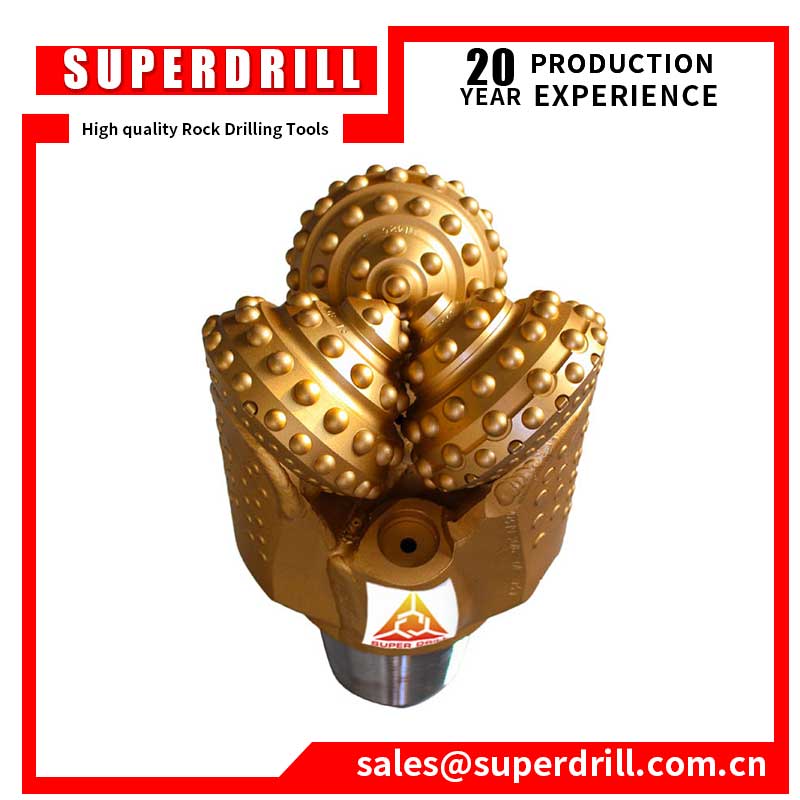

Name: 8 1/2" IADC737 tci tricone bit
NO.:SPD-737G
Product description:TCI Tooth Tricone Bit，Elastomer sealed bearing for different applications.
Sizes range: 3 7/8 to 36 and customized according to drawings or requirements.
Certification:API &ISO:9001,compliant with IADC standard.
|
|
Basical Parameter |
|
|
Bit Size |
8 1/2"(215.9MM) |
|
|
IADC Code |
737G |
|
|
Connection |
4 1/2"API reg pin |
|
|
Nozzle Qty |
3NZ |
|
|
Make up Torque(KN.m) |
16.3~21.7 |
|
|
Operating Parameter |
||
|
Rotary Speed(rpm) |
70~40 |
|
|
Weight on Bit(KN/MM) |
0.7~1.2 |
|
|
Formation |
Hard with high abrasiveness such as hard limestone,dolomite,firm sands,etc |
|
