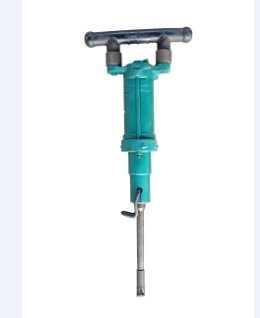

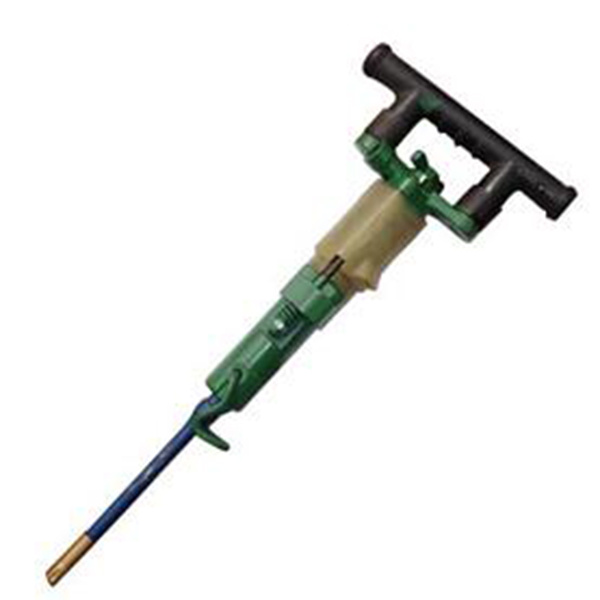

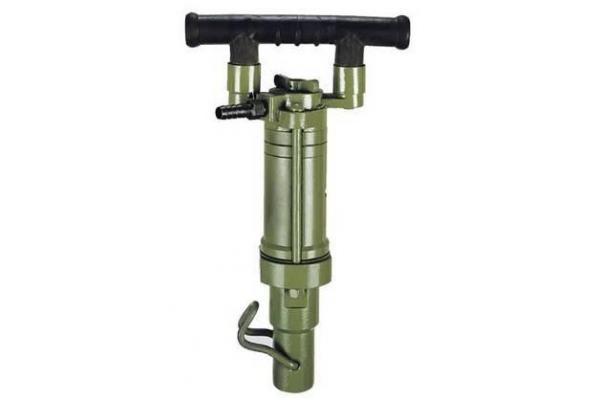

Y6 Hand Held Rock Drills

Description

Prodamo produces three types of portable rock drilling machines, all suitable for both horizontal and vertical drilling in medium-hardness and hard rock, used in open quarries, mining, road construction and others. These machines are also equipped with FY200B lubricating oil, which reduces the automatic friction factor when used. Among these items is the Y6 class which is very suitable for the creation of 22 mm holes in both rock pits, construction or secondary rock demolition. It is also very convenient for drilling in both marble and granite.

Y6 Hand Held<a href=https://www.hbsuperdrill.com/Rock-drills.html target='_blank'> Rock drills</a>-ProDrill

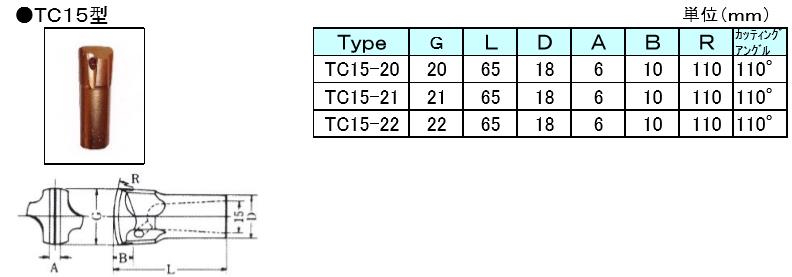

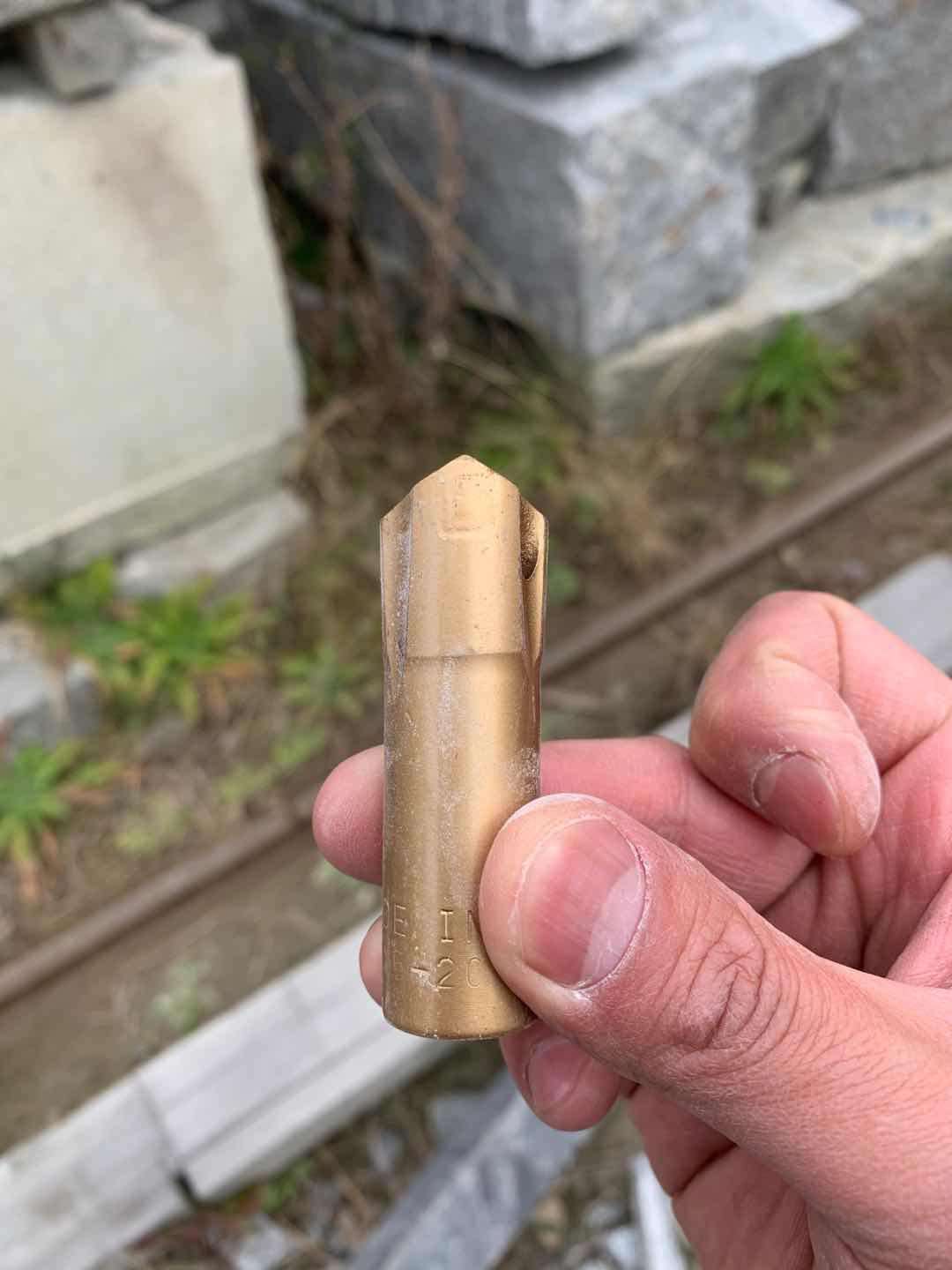

Y6 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone worKing, stone trimming, and 2nd splitting blocks.

Y6 <a href=https://www.hbsuperdrill.com/Hand-Held-Rock-Drill.html target='_blank'>Hand Held Rock Drill</a>s-ProDrill

Product features:

Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Specification:

Model	Y6	Y8	Y10	Y20	Y19A	Y24	Y26	Y28
Weight(kg)	6	6	10	18	19	24	26	26
Air consumption (L/s)	≤9.5	<9.0	≤9	25	43	≤50	≤47
length (mm)	426	428	458	605	600	604	650	661
shank (mm)	15*88	15*88	15*88	22*108	22*108	22*108	22(25)*108	22*108
Bore Dia (mm)	20	20-30	20-30	30-42	30-42	30-42	30-42	34-42
Drill depth (m)	0.5	0.5	0.5	3	5	5	5	5
Impact rate (Hz)	51	51	≥51	34	35	30	27	≥28
Hose connection(mm)	13			16 or19	19	19	19
Air pressure(Mpa)		0.4-0.63	0.2-0.3			0.4	0.4	0.4
