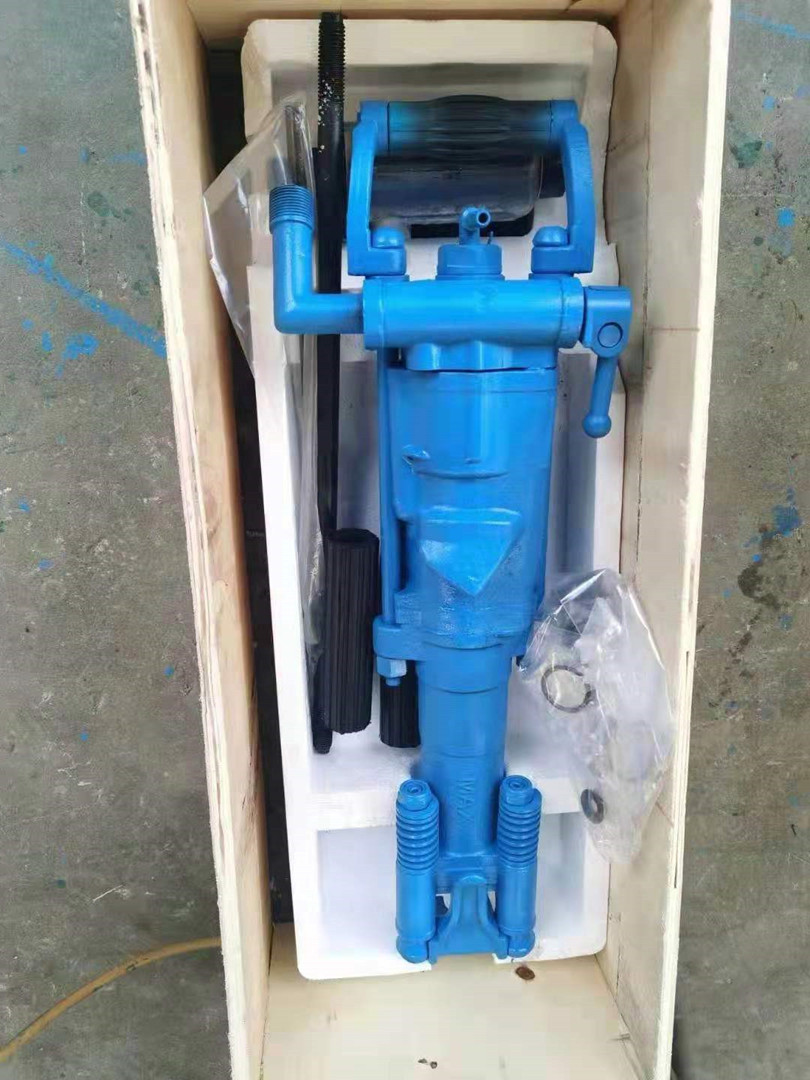

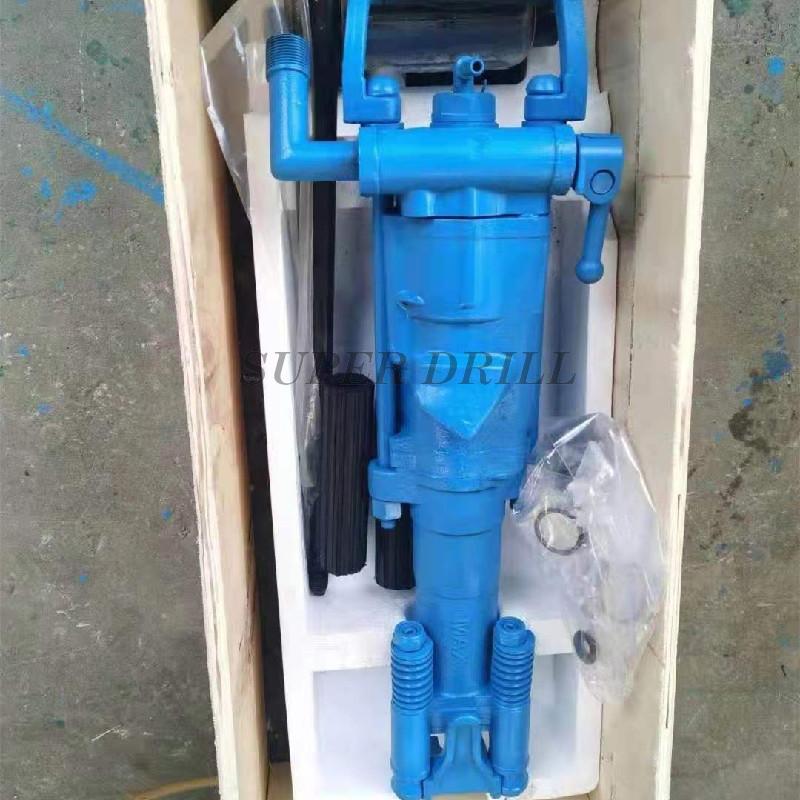

Y20LY Hand Held Rock Drills for quarrying & demolition

Description

rock drilling tools manufacturerSuperdrill offers high quality Y20 Hand held Rock drills, powered by pneumatic drive from air compressor, and used for small-hole drilling such as granite, marble, limestone quarrying. And for small size construction, and demolition work, hole size scope 30mm-40mm, match Tapered drill rods, Tapered Drill Bits, or Integral Drill Rods together for a drilling use. Y20 hand jack hammer is a light-duty drilling tools with stronger and stable drilling performance, and easy to use, simple repair, price is very competitive, so still popular in stone quarry market for most of following countries such as India, Africa, even Saudi Arabia. Now European quarry owners use hydraulic rock drills to replace Air Jack Hammers for quarry drilling holes, or blasting bore holes.

Y20LY <a href=https://www.hbsuperdrill.com/Hand-Held-Rock-Drill.html target='_blank'>Hand Held Rock Drill</a>s for quarrying & demolition-ProDrill Y20LY Hand Held Rock Drills for quarrying & demolition-ProDrill

Y20LY Hand Held Rock Drills for quarrying & demolition-ProDrill

Y20LY型凿岩机及配件单价表　　　单位：元／件
Code	Part No.	Name	名称	Price(RMB)
	Y20LY	Rock Drill（Casting)	凿岩机(铸件）	670.00
1	Y20LY-1.05	Valve cover	阀盖	22.00
2	Y20LY-1.04	Valve	阀	19.00
3	Y20LY-1.03	Valve chest	阀柜	24.00
4	Y20LY-1.02	Ratchet	棘轮	17.00
5	Y20LY-1.09	Rifle bar	螺旋棒	23.00
6	YT24-1.15	Crowned spring	塔形弹簧	0.80
7	YT24-1.07	Ratchet pawl	棘轮爪	1.20
8	Y20LY-1.08	Rifle nut	螺旋母	33.00
9	Y20LY-1.1	Piston	活塞	50.00
10	Y20LY-1.06	Setting pin	定位销	0.80
11	Y20LY-1.11	Cylinder	气缸	150.00
12	Y20LY-1.12	Guide sleeve	导向套	34.00
13	Y20LY-2.02	Rotational sleeve	转动套	55.00
14	Y20LY-2.03	Shank sleeve	钎尾套	16.00
15	Y20LY-2.01	Front head	机头	125.00
16	Y20LY-2.06	Yoke bolt	钎卡螺栓	5.50
17	Y20LY-2.07	Yoke	钎卡	15.50
18	Y20LY-2.05	Yoke spring	钎卡弹簧	1.50
19	GB889-86 M14	I Hex.locKing nut	I型非金属嵌件六角锁紧螺母	1.70
20	GB6172-86 M10	I Hex.thin nut	六角薄螺母	0.70
21	GB93-87 10	Spring Pad	标准型弹簧垫圈	0.50
22	YT24-3.21	Control handle	操纵手把	5.50
23	YT24-3.22	Fixing pin	紧固销	5.80
24	YT24-3.31	handle bolt	把手螺栓	13.00
25	Y24-3.29	Rubber handle	胶皮手把	3.30
26	GB848-85 16	Pad	垫圈	0.60
27	GB889-86 M16	I Hex.locking nut	I型非金属嵌件六角锁紧螺母	1.10
28	Y20LY-3.23	Water valve	注水阀体	9.20
29	YT25-3.35	Pad	垫	1.70
30	YT25-3.09	Water tube sleeve	水针套	0.50
31	Y20LY-3.04	Water tube	水针	1.10
32	FS13-11	Rubber pad	胶垫	0.60
33	Y20LY-3.08	Back head	柄体	115.00
34	Y20LY-3.07	Big seal sleeve	大密封套	0.60
35	GB6175-86 M14	I Hex.locking nut	I型六角锁紧螺母	0.80
36	GB93-87 M14	Spring pad	垫圈	0.50
37	Y20LY-3.02	Side bolt	长螺杆	6.00
38	Y20LY-3.27	Left Handle	左手把	11.00
39	YT25-3.20	Spring	弹簧	0.50
40	YT25-3.21	Setting pin	定位销	0.80
41	Y20LY-3.03	Control valve	操纵阀	18.00
42	GB1235-79	28*3.1 O- rubber seal ring	O型密封圈	0.50
43	YT24-3.30	Seal ring	密封圈	0.50
44	YT24-3.19	Steel retaining ring	钢丝卡环	0.70
45	GB1235-76	22×2.4 O- rubber seal ring	O型密封圈	0.40
46	YT24-3.24	Steel retaining ring	钢丝卡环	0.70
47	Y20LY-3.11	Air connection tube	气管弯	14.00
48	Y20LY-3.18	Water connection tube	水管弯	6.50
49	19-16	Pipe connector	管接套	10.50
50	19-01	Wing nut	蝶型螺母
51	19-04	Conical pipe connector	锥形胶管接套
52	ZBJ15001	ф38 Hoop	ф38喉箍	1.30
53	YO18-3.08	Rubber handle	胶把	4.50
54	Y20LY-3.27	Right handle	右手把	6.50
