Description
Product Description
T38- 64mm 76mm T51-102mm

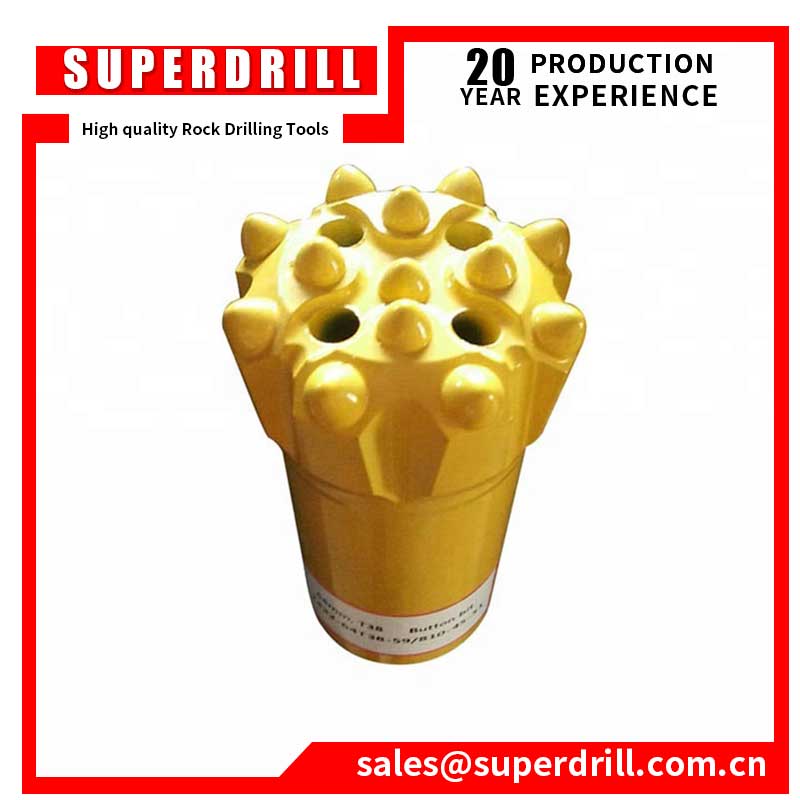

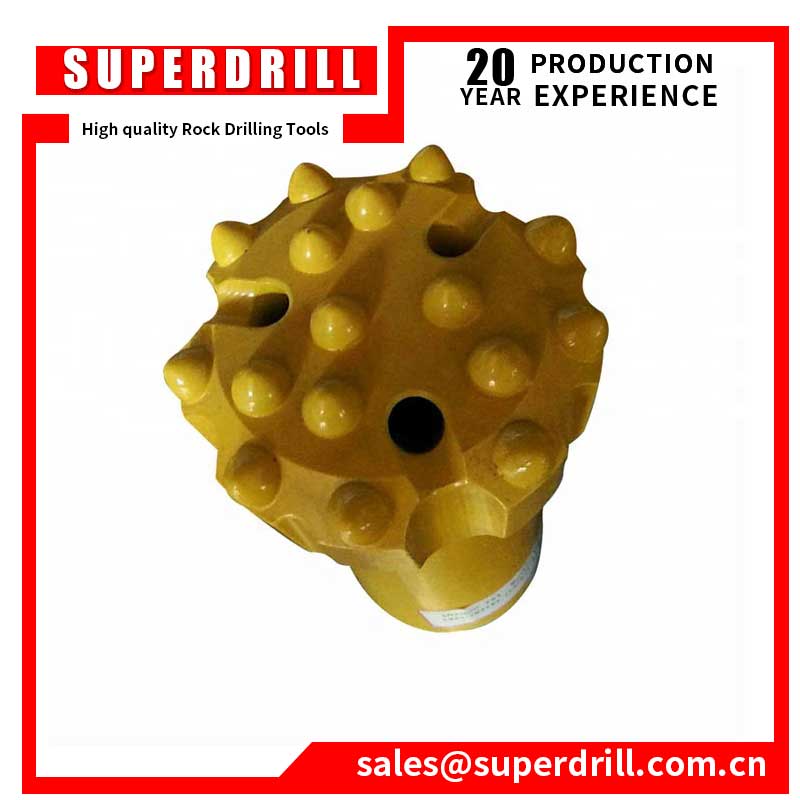

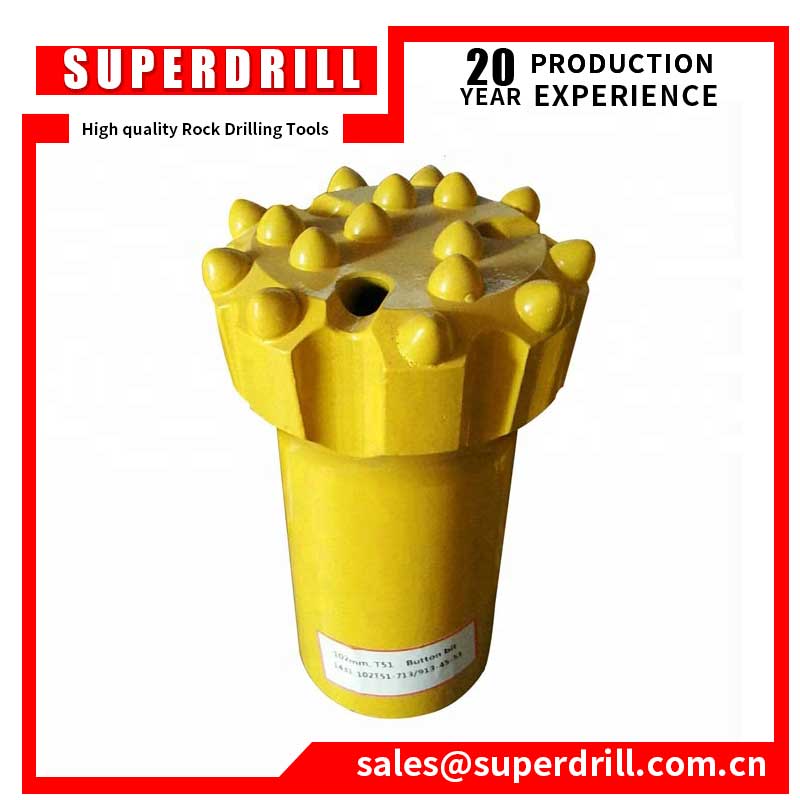

atlas copco button bit sharpener retrac button bit
| Diameter | No x button diameter | Flushing hole | Weight approx kg | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | |
| Spherical buttons | |||||||
| 64 | 2 1/2 | 4 x 10 | 8 x 10 | 30° | 2 | - | 2.2 |
| 64 | 2 1/2 | 3 x 10 | 6 x 11 | 35° | 3 | - | 2.2 |
| 70 | 2 3/4 | 4 x 10 | 8 x 11 | 40° | 2 | - | 2.4 |
| 70 | 2 3/4 | 3 x 10 | 6 x 13 | 35° | 3 | - | 2.4 |
| 70 | 2 3/4 | 4 x 10 | 8 x 11 | 35° | 4 | - | 2.4 |
| 76 | 3 | 4 x 11 | 8 x 11 | 40° | 2 | - | 3.3 |
| 76 | 3 | 4 x 11 | 8 x 11 | 35° | 4 | - | 3.3 |
| 76 | 3 | 4 x 11 | 8 x 12 | 35° | 4 | - | 3.3 |
| 89 | 3 1/2 | 4 x 13 | 8 x 13 | 40° | 2 | - | 4.8 |
| 89 | 3 1/2 | 5 x 13 | 8 x 13 | 35° | 2 | - | 4.8 |
| 89 | 3 1/2 | 6 x 11 | 8 x 12 | 35° | 2 | - | 4.8 |
| 89 | 3 1/2 | 4 x 11 | 8 x 13 | 35° | 4 | - | 4.8 |
| 89 | 3 1/2 | 4 x 13 | 8 x 13 | 35° | 4 | - | 4.8 |
