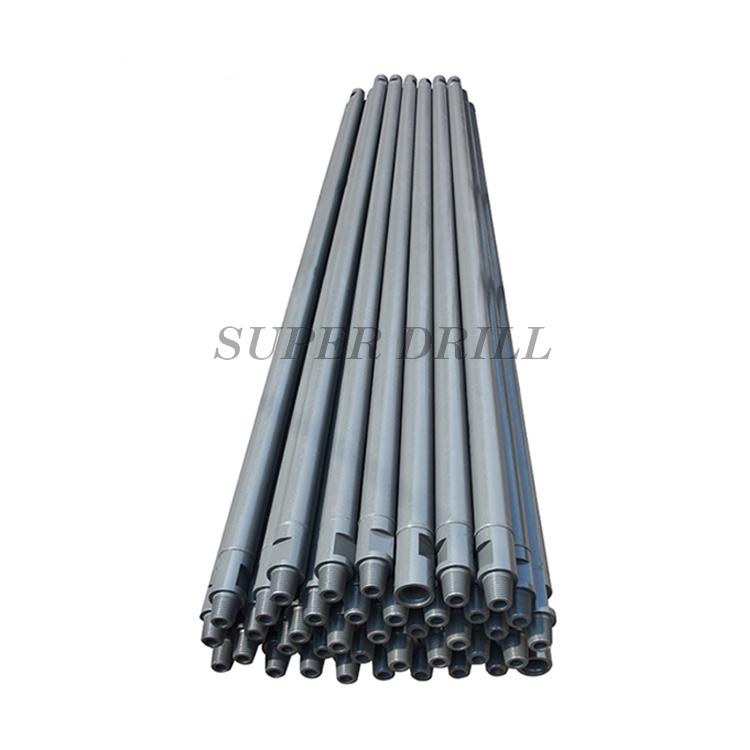

Water Well Drill rod API 2 7/8

Product Item：1000

Model Number: 89mm *3m 76mm*3m

Application: water well

Thread: API Standard

Type: Drill Pipe

Category：DTH pipe

Water Well Drill rod API 2 7/8" IF API 2 3/8" IF 89mm 2M DTH drill rod

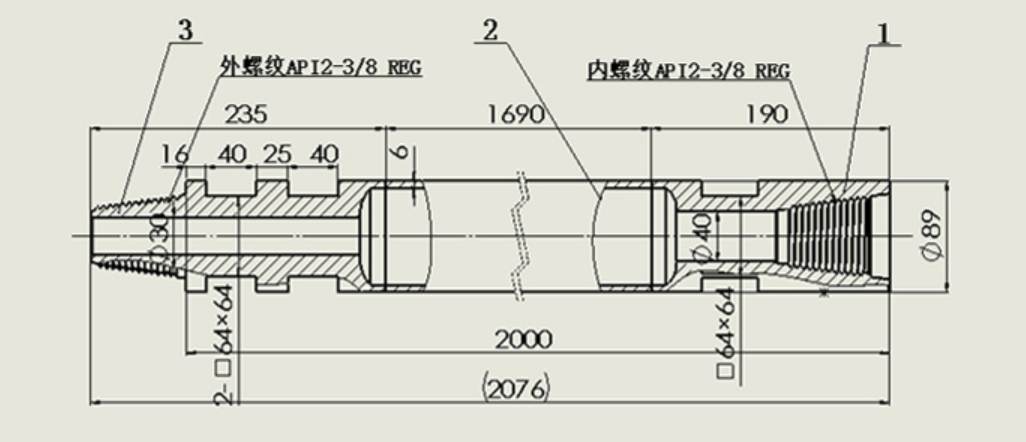

89Type drill pipe(Double buckle)
Diameter(mm)	Length(mm)	Thread model	Weight(kg)	Remarks
89	1500	API 2 3/8" IF	28	Nitrogen treatment Jumping-up
89	2000	API 2 3/8" IF	34
89	3000	API 2 3/8" IF	46
89	6000	API 2 3/8" IF	88

102Type drill pipe(Single buckle)
Diameter(mm)	Length(mm)	Thread model	Weight(kg)	Remarks
102	1500	API 2 7/8" IF	37	Nitrogen treatment Jumping-up
102	2000	API 2 7/8" IF	46
102	3000	API 2 7/8" IF	64
102	6000	API 2 7/8" IF	118

102Type drill pipe(Double buckle)
Diameter(mm)	Length(mm)	Thread model	Weight(kg)	Remarks
102	1500	API 2 7/8" IF	38	Nitrogen treatment Jumping-up
102	2000	API 2 7/8" IF	47
102	3000	API 2 7/8" IF	65
102	6000	API 2 7/8" IF	119
