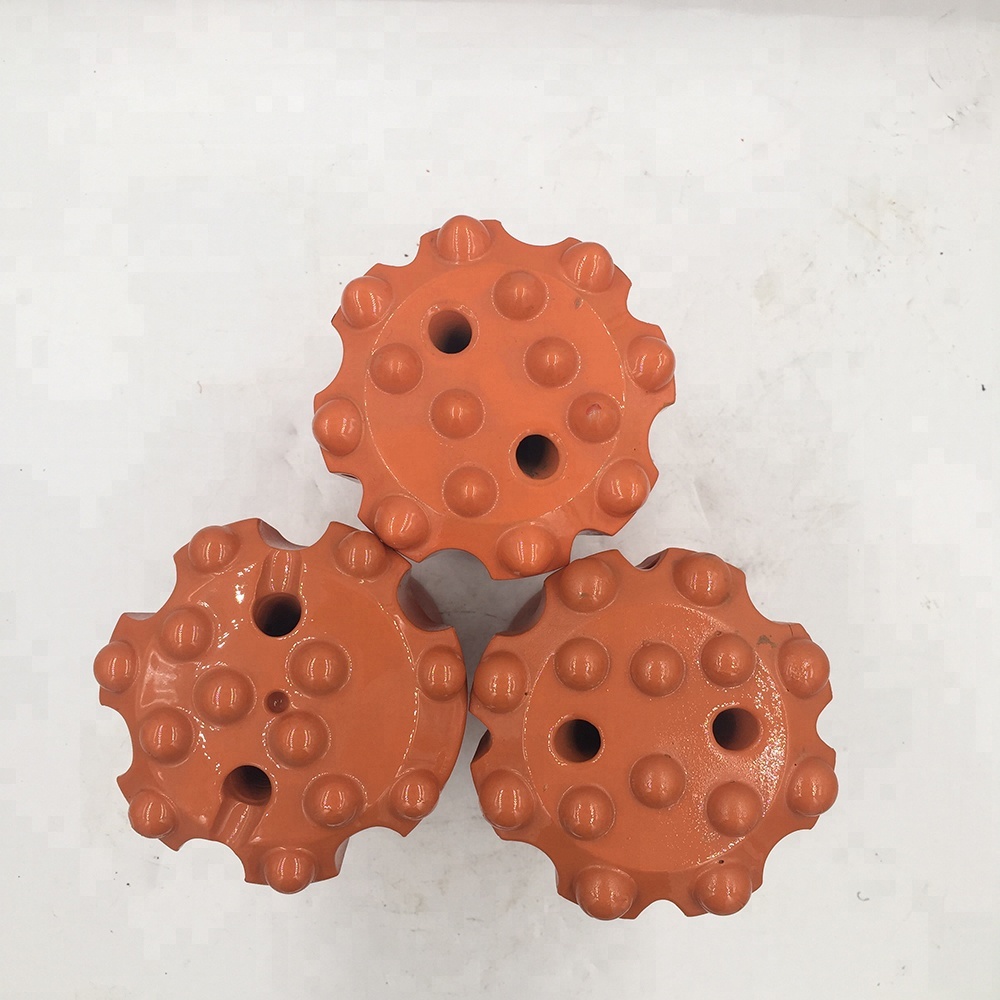

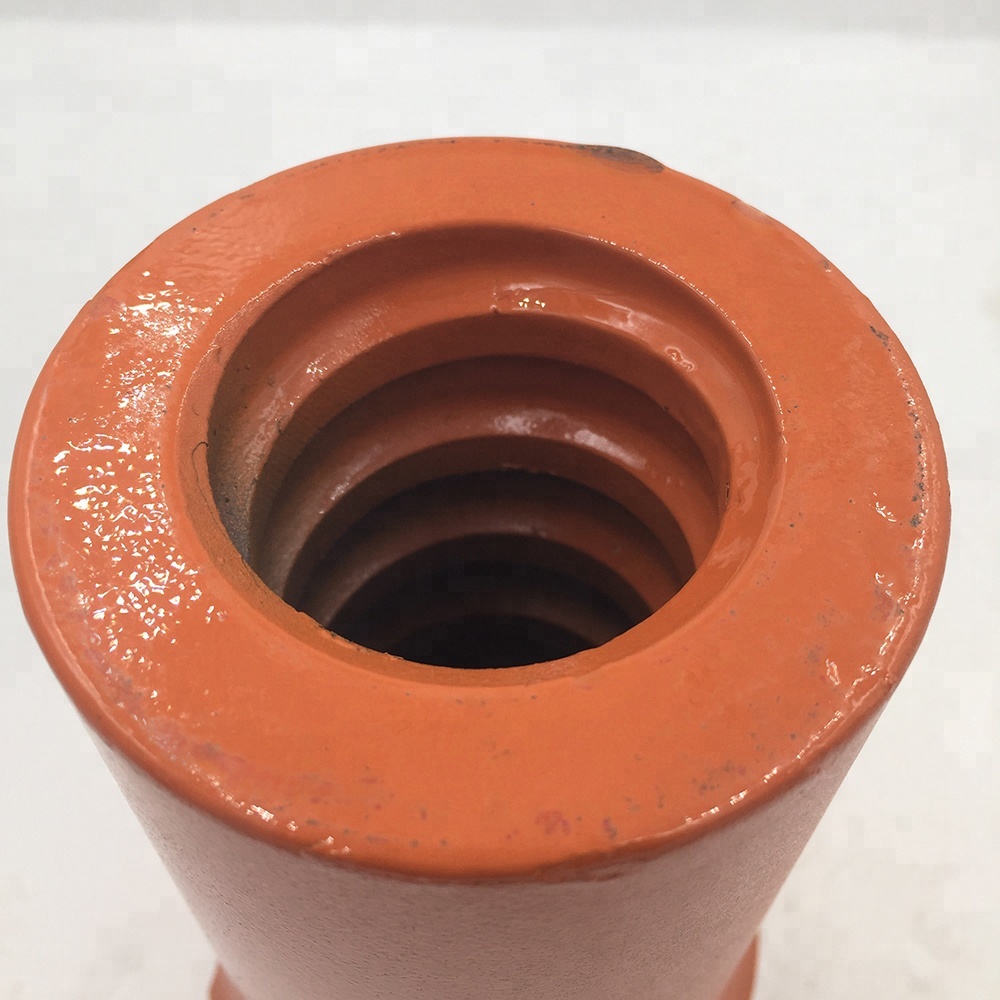

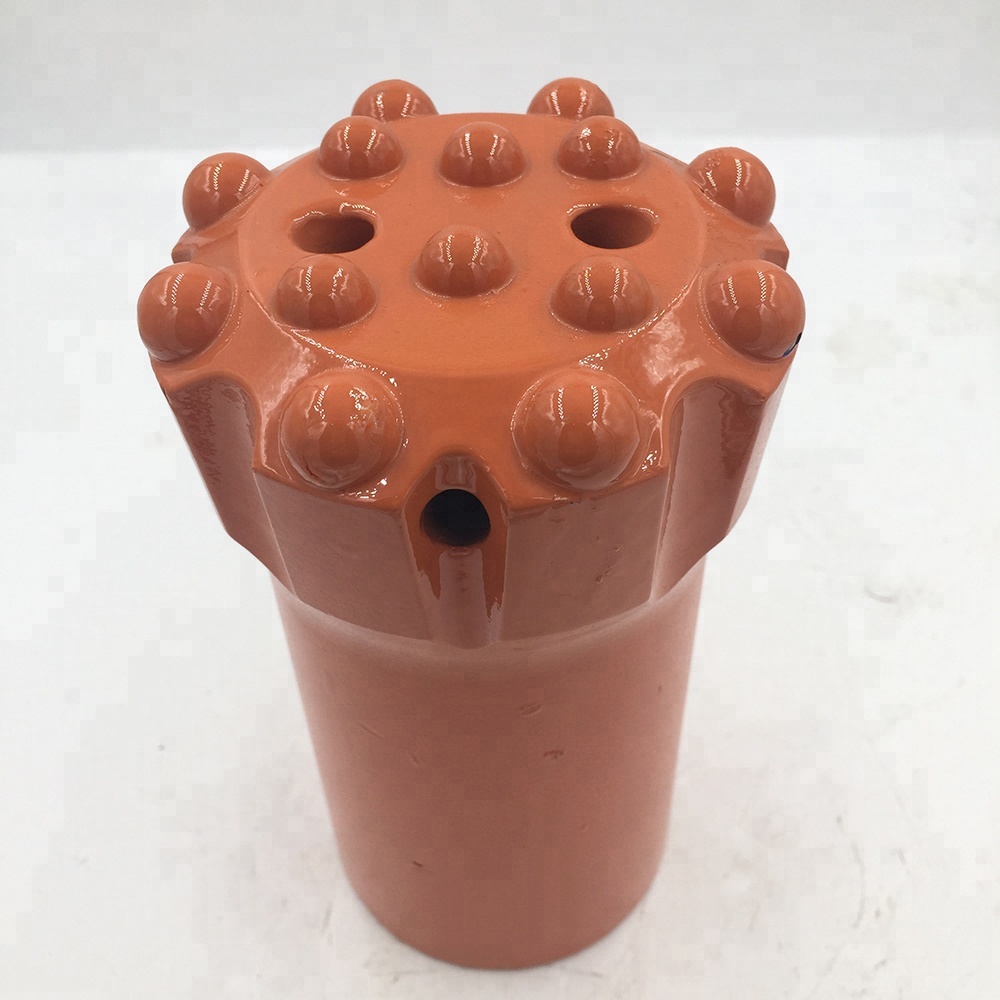

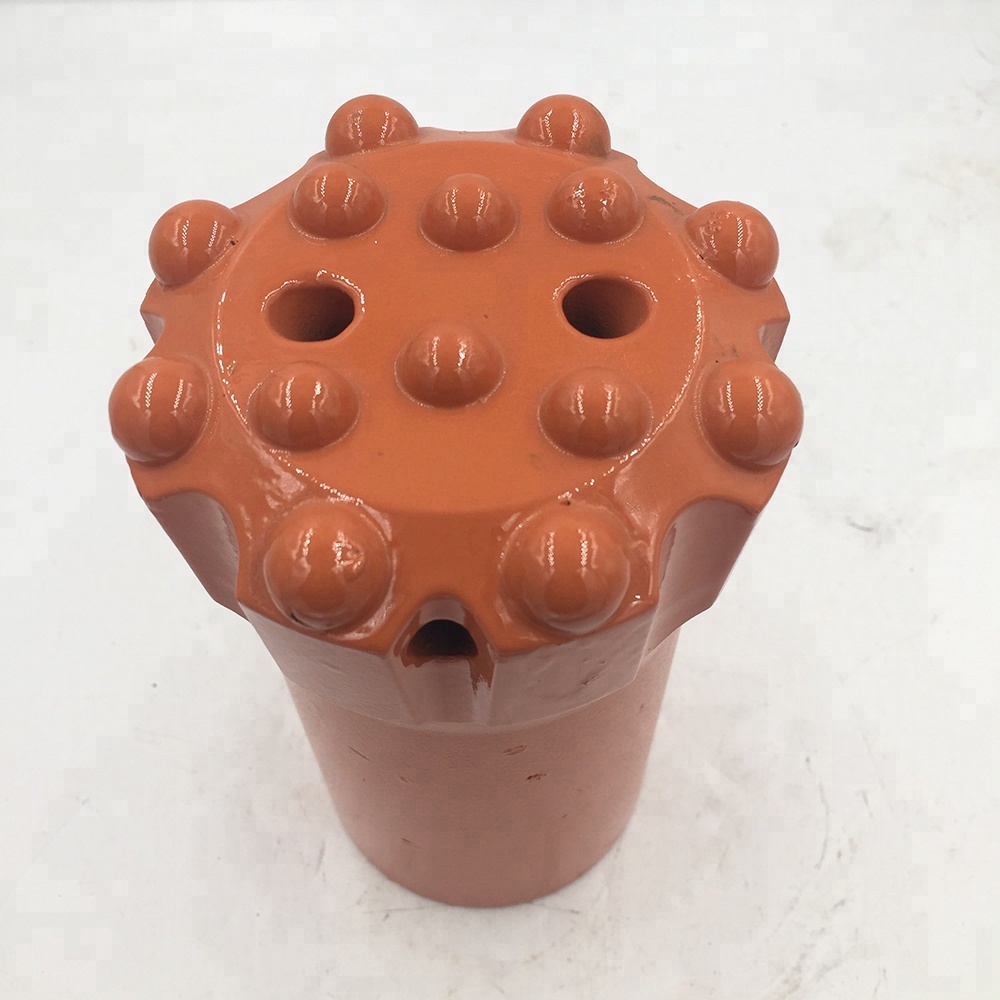

T45 Button bits, normal skirt

Diameter

T.C  buttons

Flushing hole

Angle

Part Number

Weight

mm

inch

Gauge x mm

Front x mm

Side

Front

Gauge

Kg

76

3

6x12

4x11

0

2

40°

FF76T45B642

2.39

76

3

6x13

3x12,1x11

0

3

35°

DC76T45B643

2.41

76

3

8x12

4x12

0

2

35°

FF76T45B842

2.52

76

3

8x12

4x11,1x11

0

4

35°

DC76T45B854

2.48

76

3

8x12

5x11

0

2

35°

FF76T45B852

2.44

89

31/2

8x13

4x13

0

2

35°

FF89T45B842

3.52

89

31/2

8x13

4x11,1x11

1

4

35°

DC89T45B854

3.48

89

31/2

8x13

4x11,2x9

1

4

35°

DC89T45B864

3.62

89

31/2

8x14

5x12

0

2

35°

FF89T45B852

3.68

89

31/2

8x13

6x12

0

2

35°

FF89T45B862

3.72

89

31/2

9x12

6x10

1

3

35°

FF89T45B863

3.74

102

4

8x15

4x15

0

2

35°

FF102T45B842

5.54

102

4

8x14

4x12,2x12

1

4

35°

DC102T45B864

5.48

102

4

8x14

6x12

0

2

35°

FF102T45B862

4.85

102

4

9x13

8x13

1

3

35°

FF102T45B983

5.25

115

41/2

8x15

4x13,2x13

1

4

35°

DC115T45B864

6.68

115

41/2

8x15

6x15

1

2

35°

FF115T45B862

6.84

115

41/2

8x15

7x14

1

2

35°

FF115T45B872

6.92

115

41/2

9x14

8x14

1

2

35°

FF115T45B982

6.89

127

5

8x16

7x14

1

2

35°

FF127T45B872

9.72

127

5

9x16

8x14

1

3

35°

FF127T45B983

10.14
