button bits and taper bits taper shank mining tungsten carbides rock drill tool bit

Product Item：60131743320

Model Number:LH

Type:Core Drill Bit

Material:Tungsten Carbide

Use:Button Rock Drill Bit

Product Introduction

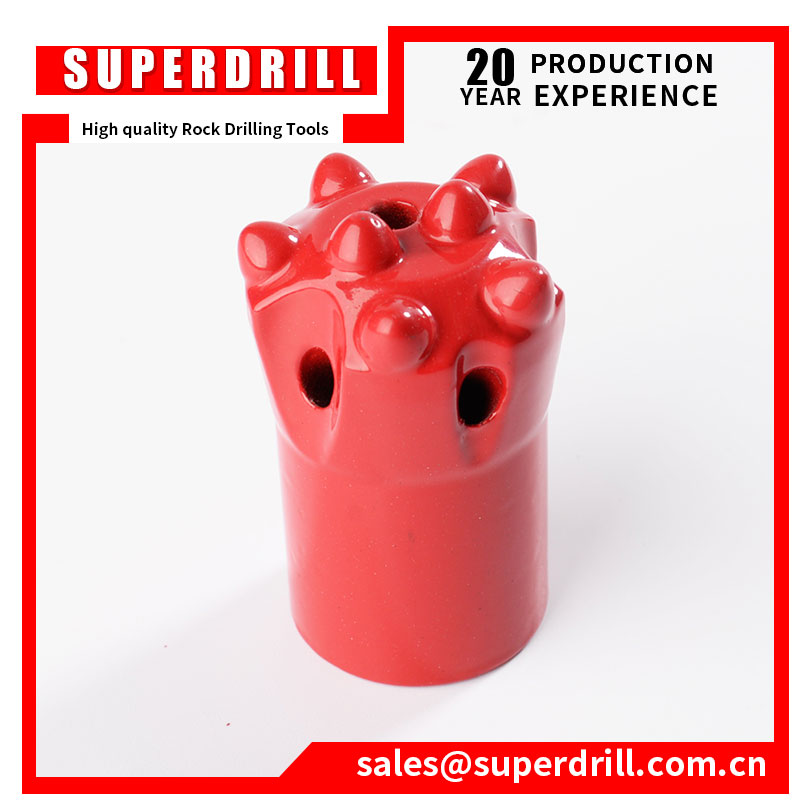

1.With carbide buttons hot pressed on bits bodies, tapered button bits have a very good drilling

performance and long life time. Different diameters and taper degrees are available to suit different

applications in mining, quarrying etc. We can supply long skirt and short skirt Tapered Button Bits.

2.Comparing with Tapered chisel bits and tapered cross bits, button bits has higher technology, much

longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the

users.

3.Tapered equipment affords drillers the ability to change drilling bits whilst still using the same

drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper

sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will

prevent the bit from spinning.

4 • Suitable for small hole range

• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

Technology Parameters

Tapered drilling tools Types	Diameter (mm)	Taper Angle (Degree)	Skirt	Weight (kg)

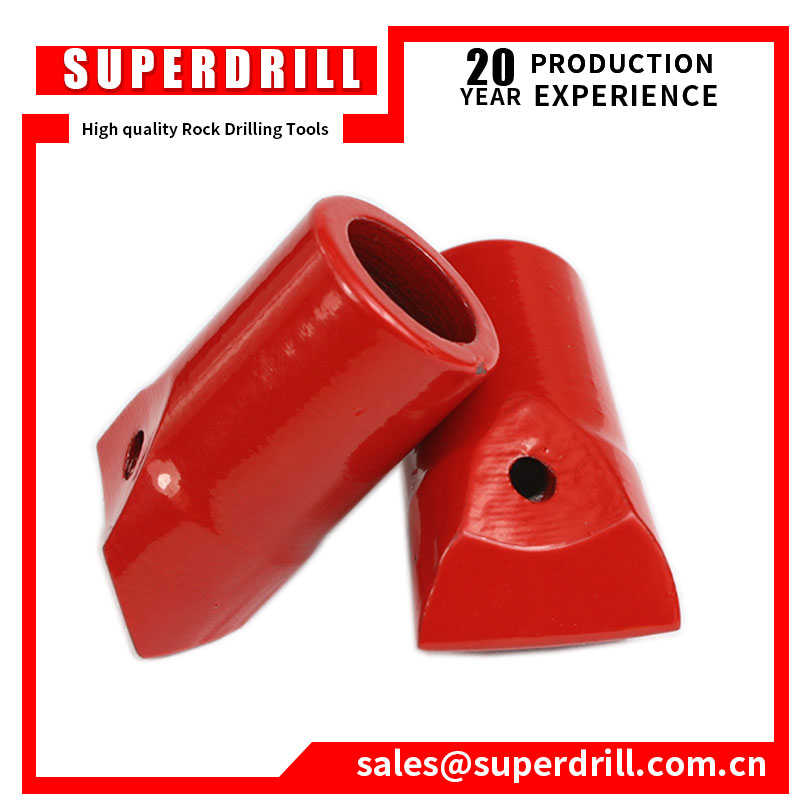

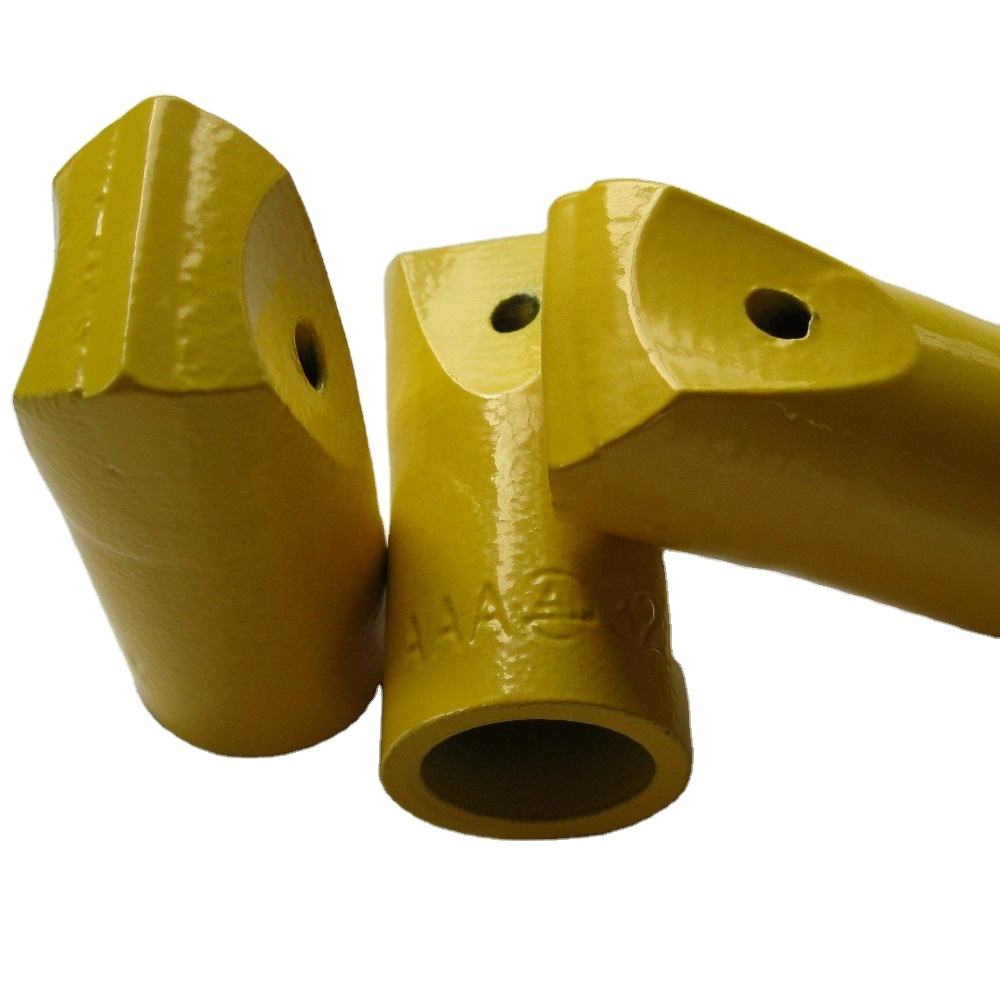

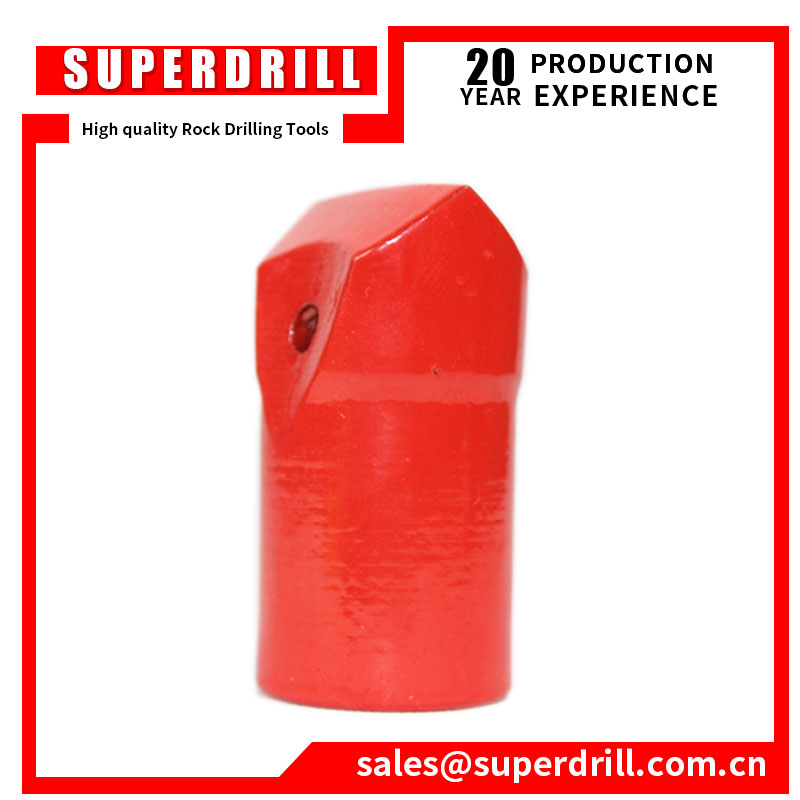

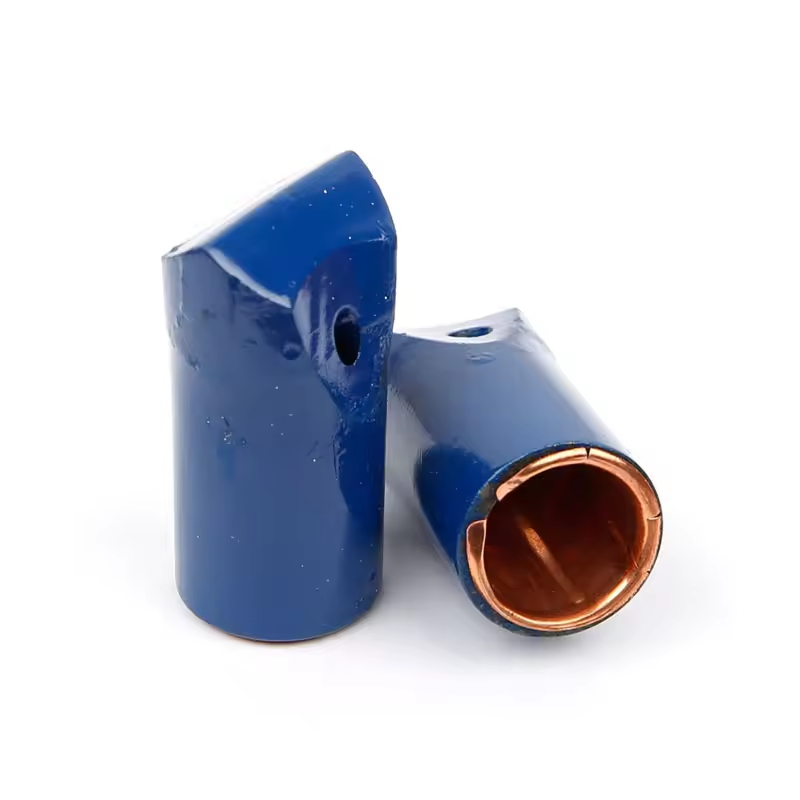

Tapered chisel bits	20-60mm	4°,6°,7°,11°,12°	Normal, Length	0.15 - 0.45

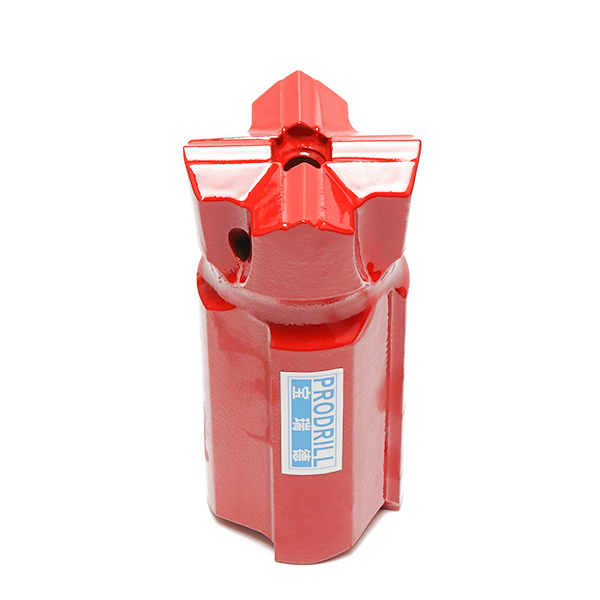

Tapered cross bits	32-60mm		Normal, Length	0.18 - 0.7
Tapered button bits	30-55mm		Normal, Length	0.2 - 0.5
