Description

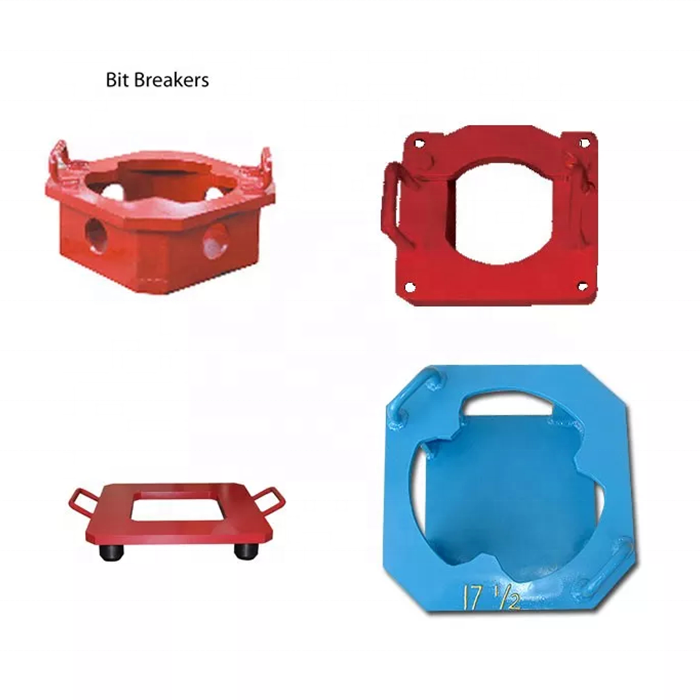

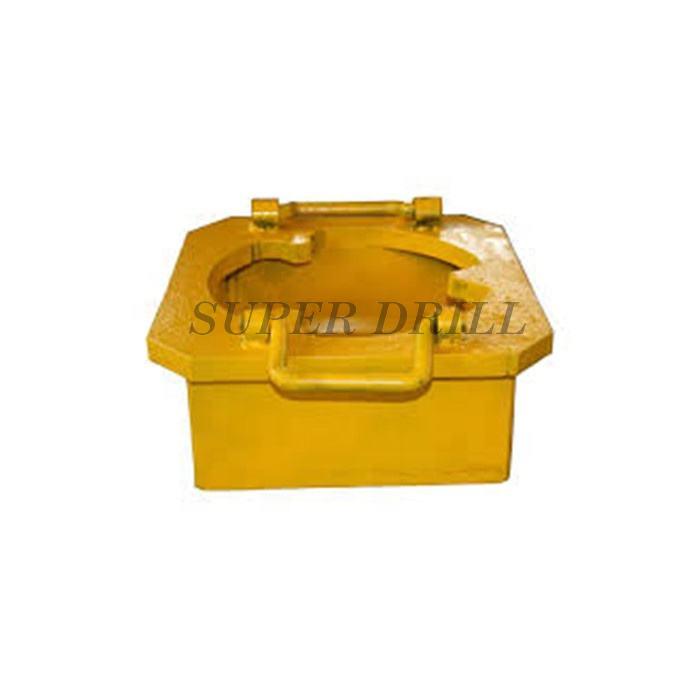

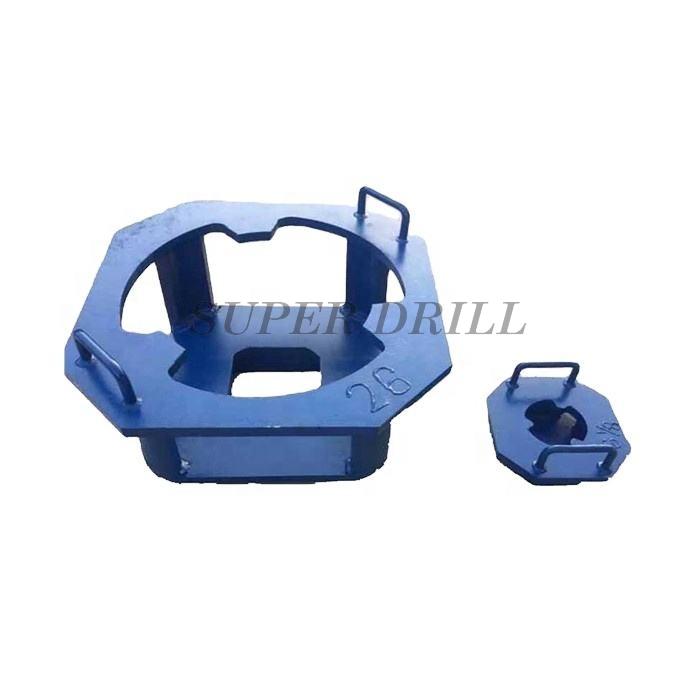

We are a professional Bit Breaker manufacturer offering top-of-the-line equipment for oil well drilling and repairing operations. Our Bit Breakers are designed to make up or break out the drilling bit with ease and efficiency.
Bit Breakers includes the following key points:
- Bit Breakers are primarily used to screw on or off a rock bit to the bottom of the drill string, ensuring smooth operation.
- The equipment also serves the purpose of preventing the rock bit from dropping into the well hole, thus enhancing safety measures.
- Despite its crucial role, the price of Bit Breakers is affordable, maKing it a cost-effective solution for drilling operations.
- Operating the Bit Breaker is simple and straightforward. Place the Bit Breaker on the well hole, and then position the rock bit onto it. Twist the tum plate to screw on or off the bit effortlessly.
-
When it comes to standard size tricone bit breakers, we offer a range of options to suit different drilling requirements. From 4 5/8 inches to 7 7/9 inches, our Bit Breakers cover a wide range of sizes to cater to various drilling scenarios. Rest assured, our Bit Breakers are manufactured to the highest standards of quality and reliability.
Standard size of tricone bit breaker
|
|||
inch
|
mm
|
inch
|
mm
|
4 5/8
|
117.5
|
8 1/2
|
215.9
|
4 3/4
|
120.5
|
8 3/4
|
222.2
|
5 1/4
|
133.3
|
9 1/2
|
241.3
|
5 1/2
|
139.7
|
9 5/8
|
244.5
|
5 5/8
|
142.9
|
9 7/8
|
250.8
|
5 3/4
|
146.1
|
10 5/8
|
269.9
|
5 7/8
|
149.2
|
11 5/8
|
295.3
|
6
|
152.4
|
12 1/4
|
311.1
|
6 1/4
|
158.8
|
13 5/8
|
346.1
|
6 1/2
|
165.1
|
14 3/4
|
374.6
|
6 3/4
|
171.4
|
15 1/2
|
393.7
|
7 1/2
|
190.5
|
16
|
406.4
|
7 5/8
|
193.7
|
17 1/2
|
444.5
|
7 7/9
|
200
|
26
|
660.4
|

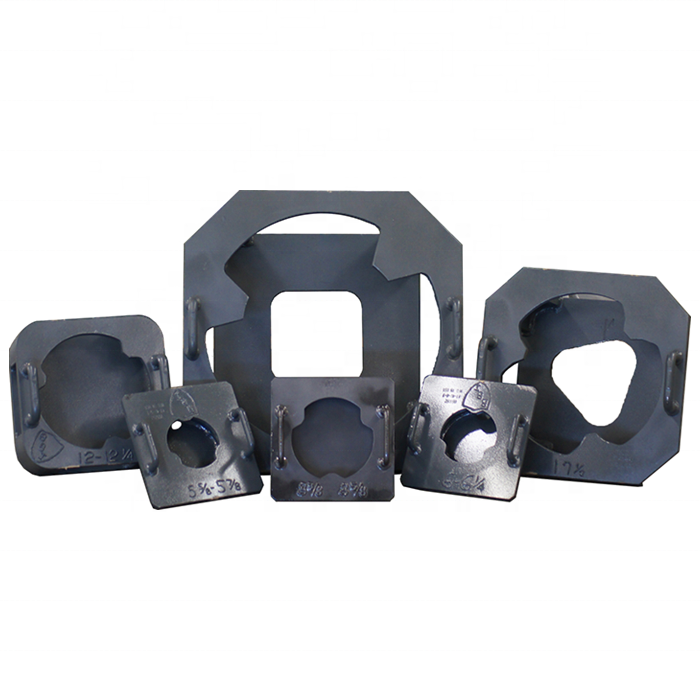

![Bit Breaker for <a href=https://www.hbsuperdrill.com/Tricone-bits.html target='_blank'>Tricone bits</a> Bit Breaker for tricone bits](/Uploads/image/20240709/20240709160324_82164.png)
