auger drill attachment for excavators

Product Item：1011040

Warranty:18 months

Brand Name:SUPERDRILL

Application:digging hole

Category：Splitting & Demolition

Description

auger drill attachment for excavators are designed to be a perfect fit for small excavators between 1T and 5T. These versatile machines can be mounted on various hydraulic excavators, mini excavators, and other carriers, maKing them an excellent choice for a wide range of applications.

auger drill attachment for excavators

Description of theauger drill attachment for excavators

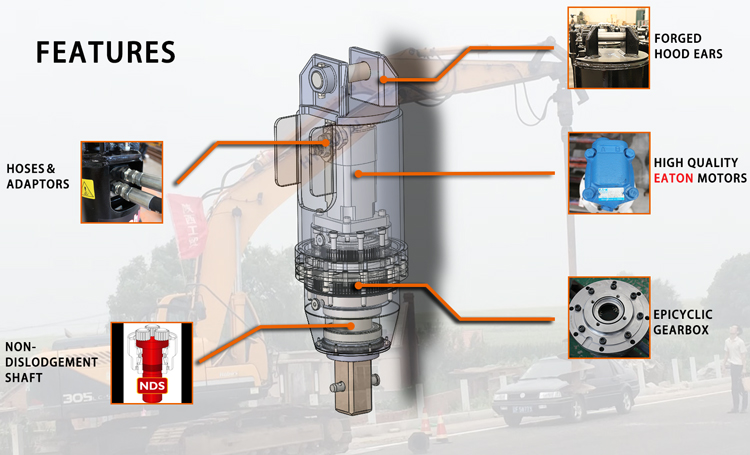

auger drill attachment for excavatorsis equipped with several features that ensure maximum performance, safety, and reliability. Some of the key features include:

Forged Hood Ears: Standard on all models, these forged hood ears provide extra safety and stability.
High-Quality Hydraulic Motors: EATON motors provide stable and high torque power output, with a failure rate of only 0.2%.
Epicyclic Gearbox: This unique gearbox amplifies torque, ensuring efficiency and reliability.
Non-Dislodgement Shaft: The single-piece drive shaft is designed to stay in place, ensuring a safer work environment.
Hoses and Adaptors: All models come standard with high-quality hoses and adaptors.

auger drill attachment for excavators pecifications

Here are the specifications for each model in the series:

Model	2000	2500	3000	3500	4500
Adaptive Weight (T)	1-2.5	1.5-3	2-3.5	2.5-4.5	4.5-7
Oil Pressure Range (Bar)	205	205	240	240	240
Torque Range (N.m)	1871	2432	2877	3614	4218
Oil Flow Range (L/min)	23-53	30-61	30-61	30-68	38-76
Speed Range (rmp)	40-92	40-82	40-81	32-72	32-64
Hub Option	65mm round, 2'' hex	65mm round, 2'' hex	65mm round, 2'' hex	65mm round, 2'' hex	65mm round, 2'' hex
Height (mm)	595	595	700	700	700
