Description

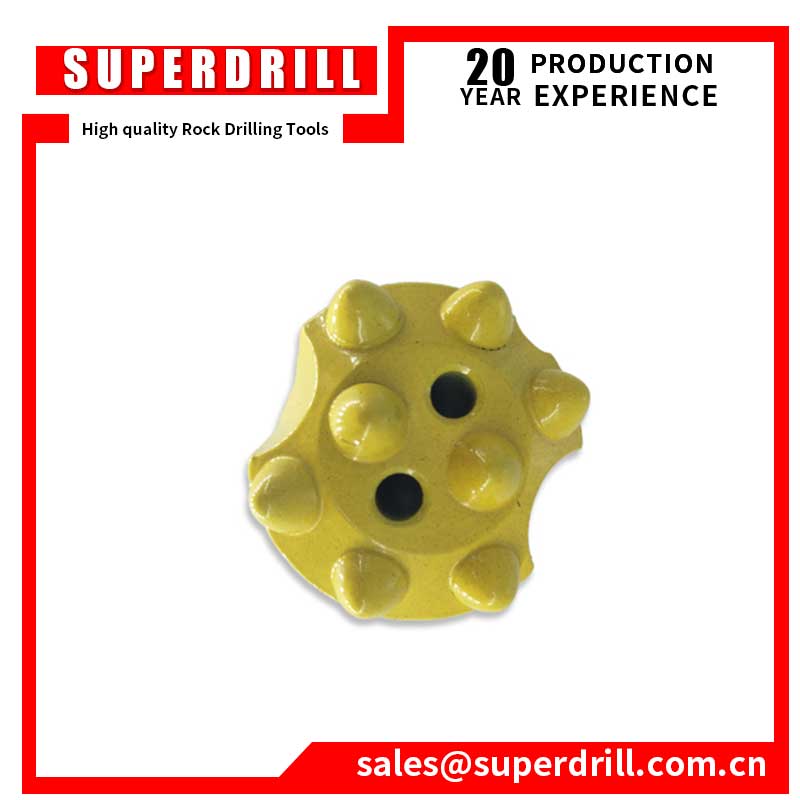

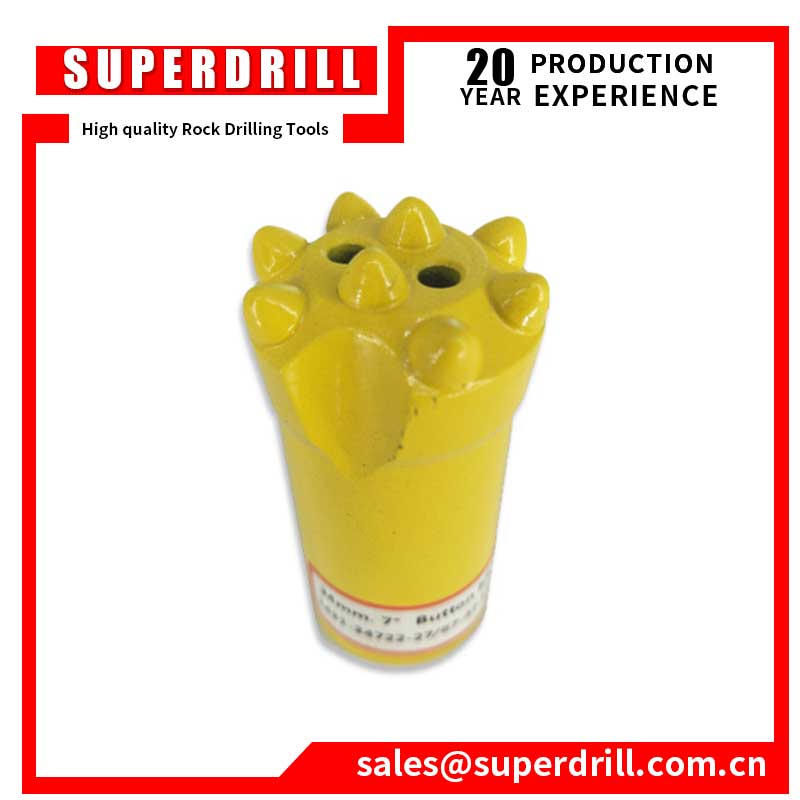

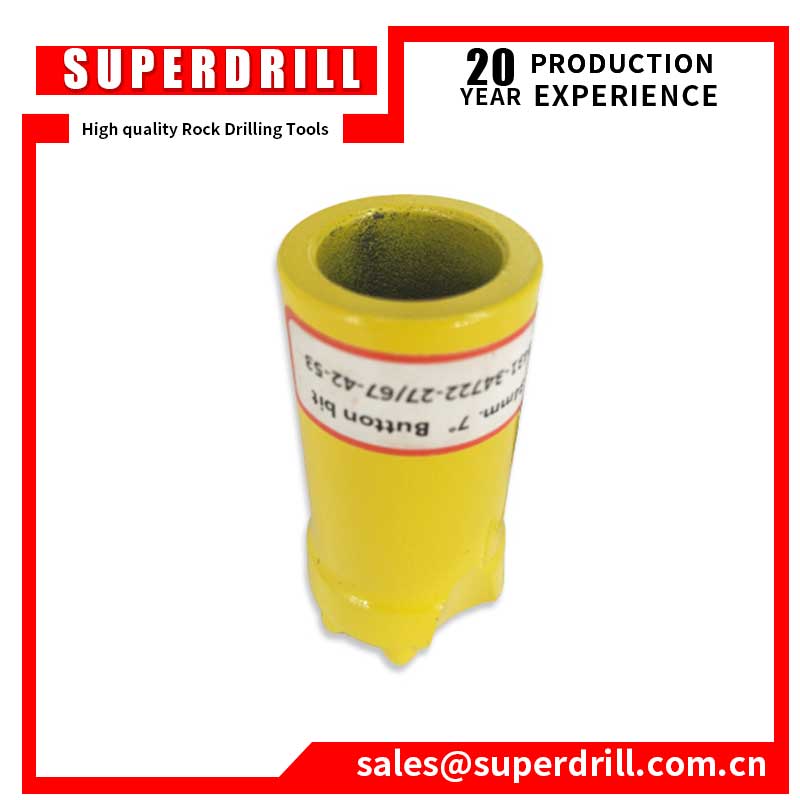

Feature of the thread button bit:
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
The main informations of Taper button rock drill bit
| Name | Taper button rock drill bit |
| Material | Steel + Carbide |
| Type | Chisel / Cross /Button bit |
| Application | Mining, Quarrying, Ground engineering ,Tunnel |
| Advantages |
1. Top quality with factory price 2. Delivery on time 3.Good after-service |
| Certificate | ISO9001 / CE |

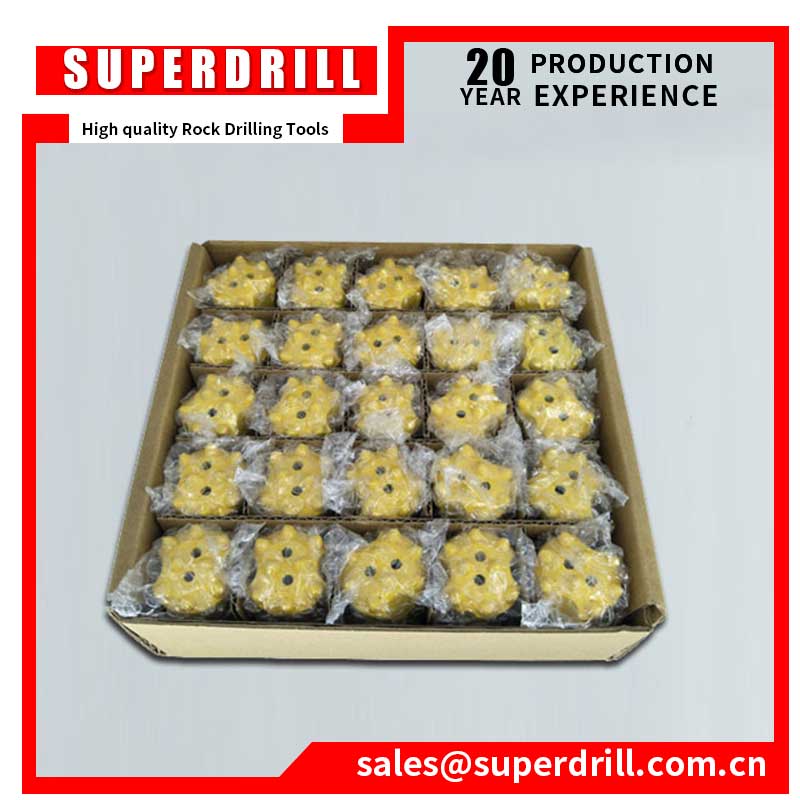

| Package | Inner package with plastic bags ,outer package with wooden case or carton |
| Delivery | 5 days if in stock and 25-30 days for production |
| Payment Terms | T/T/ Western Union/ MoneyGram / L/C |
| MOQ | As your request |
| Thread Type | dia | tip size(mm) | flushing holes | weight (kg) | ||
| mm | gauge | front | side | front | ||
|
R22 R25 R28 SR28 |
41 | 5*9 | 2*8 | 2 | 1 | 0.6 |
| 42 | 5*9 | 2*8 | 2 | 1 | 0.6 | |
| 43 | 5*9 | 2*9 | 2 | 1 | 0.6 | |
| 43 | 5*9 | 2*8 | 2 | 1 | 0.6 | |
| 45 | 5*9 | 2*9 | 2 | 1 | 0.7 | |
| 48 | 5*10 | 2*9 | 2 | 1 | 0.78 | |
| 51 | 5*11 | 2*10 | 2 | 1 | 1.1 | |
| 57 | 5*12 | 2*10 | 2 | 1 | 1.3 | |
| R32 | 41 | 4*9 | 2*8 | 1 | 1 | 0.54 |
| 43 | 4*9 | 2*9 | 1 | 1 | 0.55 | |
| 45 | 4*10 | 2*9 | 1 | 1 | 0.6 | |
| T38 | 57 | 5*11 | 3*10 | 1 | 1 | 1.6 |
| 64 | 5*12 | 3*11 | 1 | 1 | 1.6 | |
| 76 | 5*14 | 3*12 | 1 | 2 | 2.4 | |
| T45 | 70 | 6*11 | 4*10 | 0 | 2 | 2.4 |
| 76 | 6*13 | 4*10 | 0 | 2 | 2.6 | |
| 89 | 8*12 | 5*12 | 2 | 2 | 4.5 | |
| 102 | 8*13 | 6*12 | 2 | 2 | 5 | |
| 115 | 8*14 | 6*13 | 2 | 2 | 6.8 | |
| T51 | 89 | 8*12 | 5*12 | 2 | 2 | 4.9 |
| 102 | 8*13 | 6*12 | 2 | 2 | 5.8 | |
| 115 | 8*14 | 6*13 | 2 | 2 | 6.8 | |
| 127 | 8*14 | 6*14 | 2 | 2 | 7.5 | |
