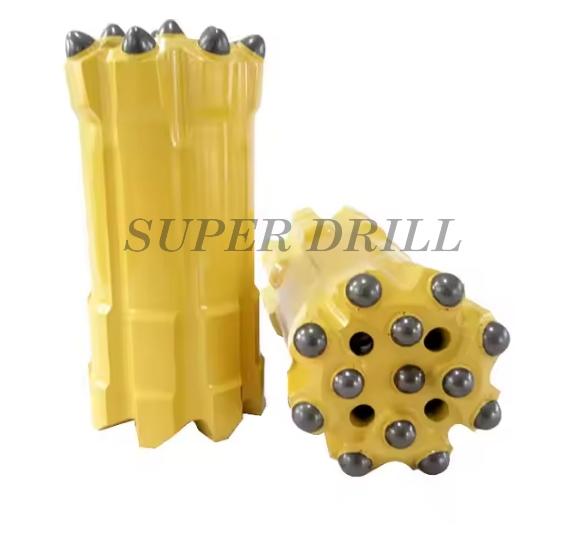

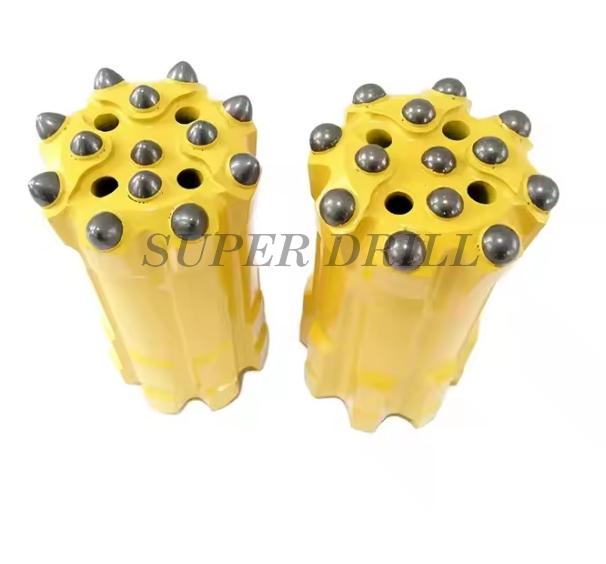

Atlas Copco T60 Button Bit

Description

Atlas Copco T60 button bits are high-performance drilling tools designed for rock drilling, mining, and tunneling applications. These bits are available in spherical and ballistic button configurations, offering excellent penetration rates and durability. Made from high-quality alloy steel and tungsten carbide, our button bits ensure maximum drilling efficiency and wear resistance.

At hbsuperdrill, we specialize in manufacturing Atlas Copco T60 button bits with a diameter range from 102 mm to 152 mm, compatible with various thread types. Additionally, we support customized button bits to meet specific drilling requirements.

Product Specifications

1. Product No: 90515472 (Spherical Button Bit)

Thread Type: T60
Diameter: 102 mm (4 inch)
Number of Buttons: 16
Button Size: 8 × 14.7 mm (Gauge), 4 × 14.7 mm, 4 × 11 mm (Centre)
Gauge Button Angle: 35°
Flushing Holes: Side – None, Centre – 2
Weight: 8.0 kg

2. Product No: 90516351 (Spherical Button Bit)

Thread Type: T60
Diameter: 102 mm (4 inch)
Number of Buttons: 13
Button Size: 8 × 14.5 mm (Gauge), 4 × 12.7 mm, 1 × 12.7 mm (Centre)
Gauge Button Angle: 35°
Flushing Holes: Side – None, Centre – 4
Weight: 7.4 kg

3. Product No: 90515470 (Spherical Button Bit)

Thread Type: T60
Diameter: 115 mm (4½ inch)
Number of Buttons: 16
Button Size: 8 × 14.5 mm (Gauge), 4 × 14.5 mm, 4 × 12.7 mm (Centre)
Gauge Button Angle: 35°
Flushing Holes: Side – None, Centre – 2
Weight: 9.0 kg

4. Product No: 90515478 (Ballistic Button Bit)

Thread Type: T60
Diameter: 102 mm (4 inch)
Number of Buttons: 13
Button Size: 8 × 14.5 mm (Gauge), 4 × 12.7 mm, 1 × 12.7 mm (Centre)
Gauge Button Angle: 35°
Flushing Holes: Side – None, Centre – 4
Weight: 7.4 kg

Why Choose Our T60 Button Bits?

✔ Premium Quality: Made from high-strength alloy steel and tungsten carbide for maximum durability.
✔ Superior Drilling Performance: Available in spherical and ballistic button designs for different drilling conditions.
✔ Customizable Options: We support custom T60 button bit production to meet various drilling needs.
✔ Wide Diameter Range: Available in 102 mm to 152 mm for different applications.
✔ Reliable Manufacturer: hbsuperdrill is a trusted provider of Atlas Copco-compatible T60 button bits for mining, construction, and quarrying.
