Description
Details：
1. Feature and use:

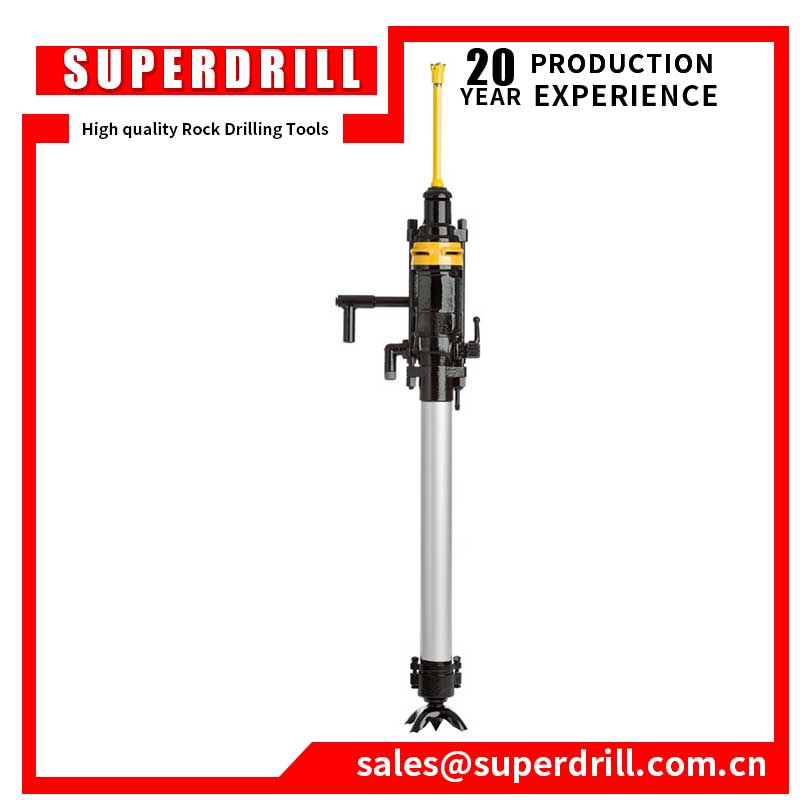

YSP45 is suitable for upward drilling. It widely used in underground mining, tunnel, shaft sinKing and excavate the patio drilling operations, drilling into 60 degrees to 90 degrees upward direction of the hole, It can also be used to anchor installation.
2. parameter:
|
Model |
YSP45 |
||
|
Weight (kg) |
44 |
||
|
Dimension (mm) |
1420*390*160 |
||
|
Cylinder Diameter (mm0 |
95 |
||
|
Piston Stroke (mm) |
47 |
||
|
Air Leg Stroke (mm) |
750 |
||
|
Air leg Cylinder (mm) |
74 |
||
|
Working Pressure (MPa) |
0.4 |
0.5 |
0.63 |
|
Air Consumption (L/s) |
≤80 |
≤83 |
≤113.3 |
|
Impact Energy (J) |
≥57 |
≥70 |
≥73.5 |
|
Impact Frequency (HZ) |
≥42 |
≥45 |
≥46 |
|
Air Pipe Diameter (mm) |
25 |
||
|
Water Pipe Diameter (mm) |
13 |
||
|
Bore Diameter (mm) |
34~45 |
||
|
Shank Specification (mm) |
H22/25*108±1 |
||
