Description

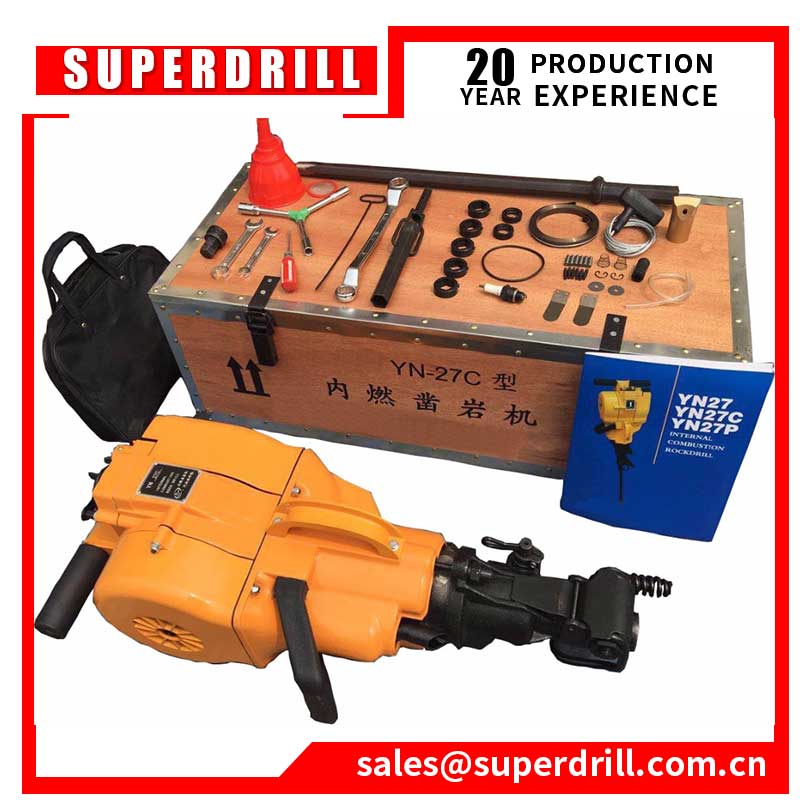

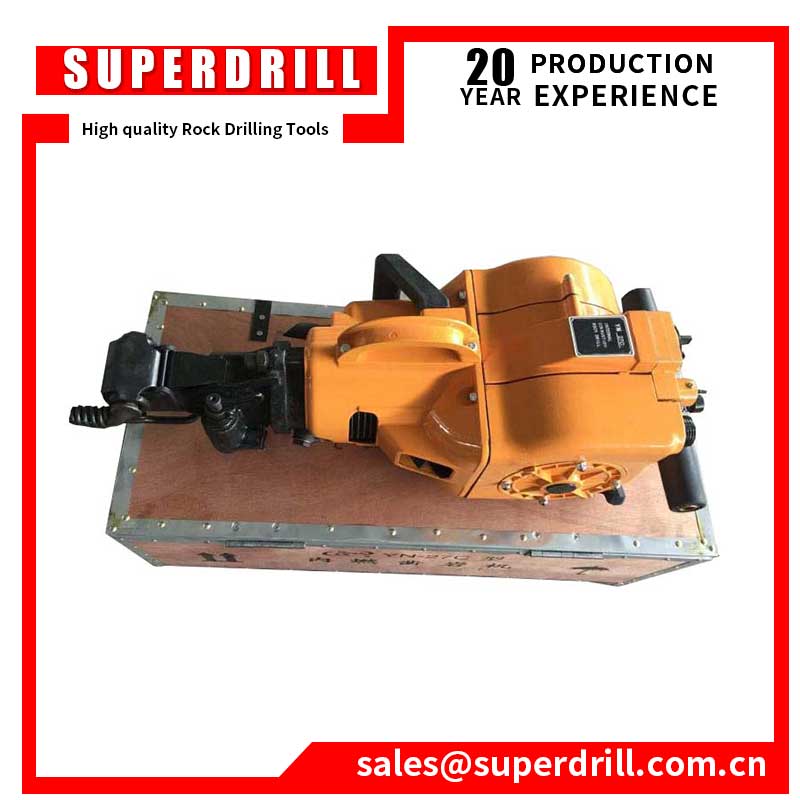

YN27C Pionjar Rock Breaker Hammer/Gasolin
Details:
Characteristic
Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head.
The machine has the characteristics of easy operation, time saving, labor saving and fast drilling as well as high efficiency, etc. It is now reached the first level of the same kind products and all of its parts are interchangeable with international homogeneous products.
Applications
YN27C has functions of drill hole, cleavage, bruising, tamping and chiseling. It is widely used in mine, road construction, quarrying, national defense works, etc.
YN27C gasoline rock drill is a high efficient drill machine. It adapt to outside situations where there is no water, no electronic power and no air compressor. It can be used as a tool for breaKing, percussive drilling, tamping splitting or ramming.
Weight |
27kg |
Displacement of engine piston |
180cm³ |
Diameter of engine piston |
Φ58mm |
Stroke of engine piston |
70mm |
Rotating speed of engine |
≥2450R/min |
Rotating speed of drilling rod |
≥250R/min |
Oil consumption |
≤0.12L/min |
Tank capacity |
1.14L |
Max. drilling depth |
6m |
Shank size |
Hex22x108mm |
