Description
Details：
1. Feature and use:

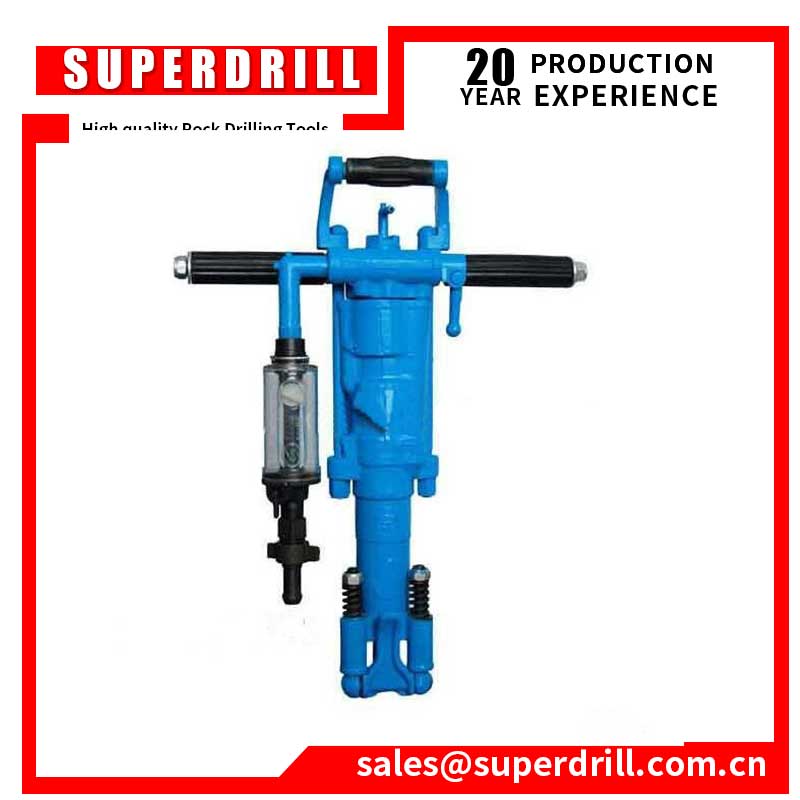

Y24 is a tough, reliable Jack Hammer suitable for drilling most small holes where the angle of the hole is straight downwards. It can be adapted for either air or water flushing and can be used in stitch hole drilling and block splitting in the dimensional stone industry and in occasional blast hole drilling on construction site.
2. Parameter:
|
Model |
Y24 |
||
|
Weight (kg) |
24 |
||
|
Length (mm) |
604 |
||
|
Cylinder Diameter (mm) |
70 |
||
|
Piston Stroke (mm) |
70 |
||
|
WorKing Pressure (MPa) |
0.63 |
0.5 |
0.4 |
|
Air Consumption (L/s) |
≤55 |
||
|
Impact Frequency (J) |
≥27 |
||
|
Air Pipe Diameter (mm) |
19 |
||
|
Water Pipe Diameter (mm) |
13 |
||
|
Bore Diameter (mm) |
30~42 |
||
|
Suitable for max depth (m) |
5 |
||
|
Working Temperature (℃) |
-30~50 |
||
|
Shank Specification (mm) |
H22*108±1 |
||
