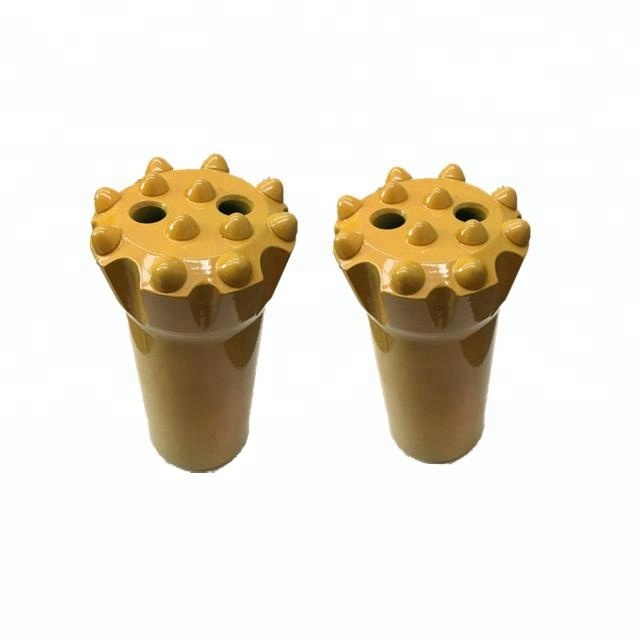

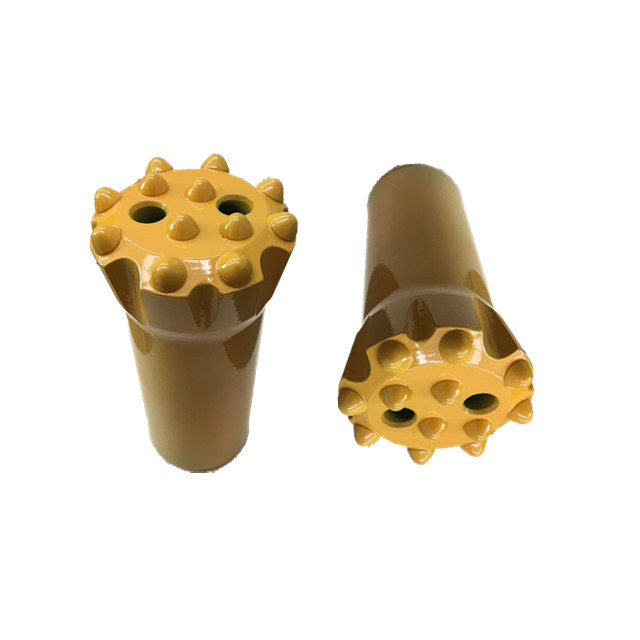

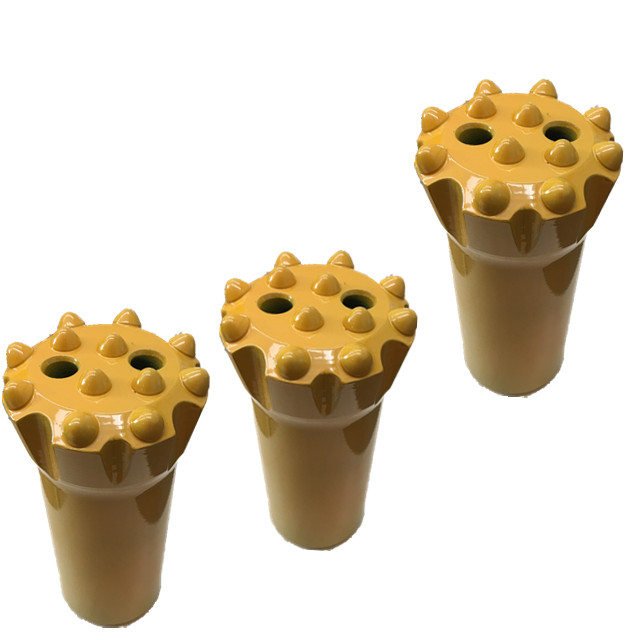

Wholesale 34mm Carbide Tips Taper Button Bits

HomeProductsThread Button bitsR25 Thread Button BitWholesale 34mm Carbide Tips Taper Button
Wholesale 34mm Carbide Tips Taper Button BitsWholesale 34mm Carbide Tips Taper Button BitsWholesale 34mm Carbide Tips Taper Button Bits

Wholesale 34mm Carbide Tips Taper Button Bits

  • Product Item：60685676862
  • Model Number:drill bit, R22, R25, R28, R32, R35,R38, T38, T45 ,T51,ST58, T60
  • Type:Drill Bit, ballistic button bit
  • Material:Carbon Steel, Tungsten Carbide
  • Use:Coal Mining, Coal mining, quarry, etc.
  • Category：R25 Thread Button Bit

    • Sent E-mail Inquiry

    Description


    Name rock drill bits
    Brand Ruilong Drilling
    Size ¢25mm~¢127mm
    Application Soft rock, loose-medium rock, hard rock and any other special formations
    Button bit face design flat face, dome face, drop center face
    Thread R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60


    Specifications of rock drill bits

    Diameter NO*Button Dia Gauge Flushing Approx's Part No.
    Dia Front Gauge Buttons Hole Weight
    mm inch EA EA Angle Front Side kg
    32 1 1/4 2*7 3*8 35 1*6 2*4 0.2 Q532-722
    33 1 19/64 2*7 4*7 40 1*5 1*5 0.2 Q633-722
    33 1 19/64 2*7 5*7 35 2*4 1*4 0.2 Q733-722
    34 1 11/32 2*7 4*7 40 1*5 1*5 0.29 Q634-722
    35 1 3/8 2*7 5*7 35 1*5 1*5 0.22 Q735-722
    36 1 27/64 1*8 3*9 40 1*6 1*6 0.3 Q436-722
    36 1 27/64 2*7 4*7 40 1*6 1*6 0.35 Q636-722
    36 1 27/64 2*7 5*8 35 1*6 1*5 0.3 Q736-722
    38 1 1/2 1*9 3*9 40 1*6 1*6 0.35 Q438-722
    38 1 1/2 2*8 4*8 40 1*6 1*6 0.35 Q638-722
    38 1 1/2 2*7 5*8 35 1*6 1*5 0.35 Q738-722
    38 1 1/2 2*7 5*9 40 2*4 1*4 0.35 Q738-722A
    40 1 37/64 1*9 3*9 40 1*6 1*6 0.35 Q440-722
    40 1 37/64 2*7 5*9 35 1*6 1*5 0.35 Q740-722
    41 1 5/8 2*7 5*9 35 1*6 1*5 0.35 Q741-722
    42 1 21/32 1*9 3*9 30 1*6 1*6 0.35 Q741-722
    42 1 5/8 2*7 5*9 35 1*6 1*5 0.35 Q442-722

    Ps: Special design is available upon your requirement.
