Tapered drill rod

HomeProductsSmall Hole Drilling ToolsTapered Drill RodTapered drill rod
Tapered drill rodTapered drill rod

Tapered drill rod

  • Product Item:001
  • Taper degree a=4° 6° 7° 11° 12°
  • Socket inside diameter d=15, 19, 22, 25
  • Shank Dimension:83,108,159 MM
  • Name:Tapered drill rod
  • Category:Tapered Drill Rod

  • Attachment Sent E-mail Inquiry

    Description

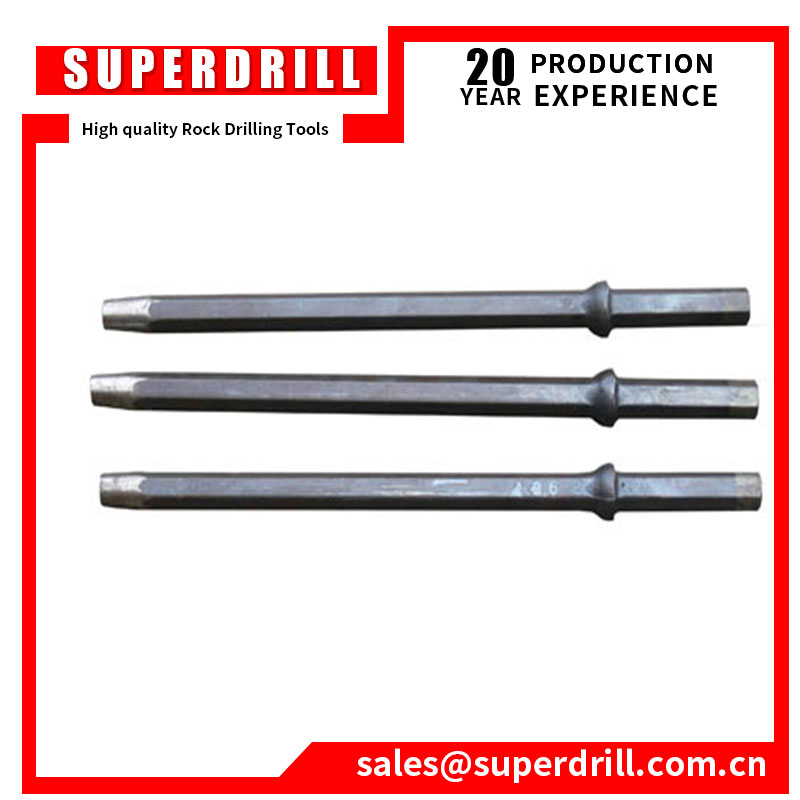

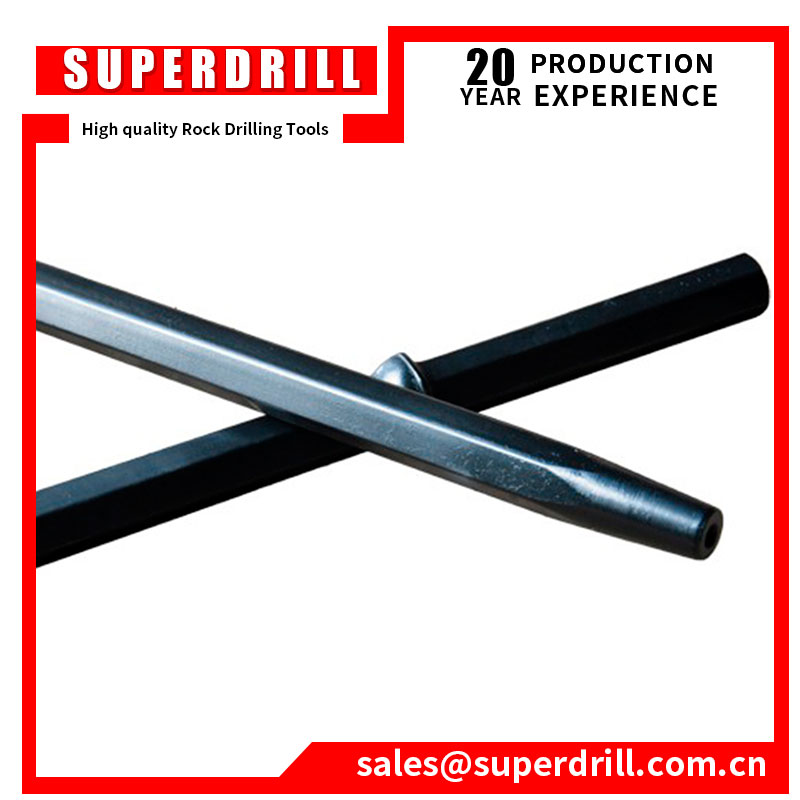

    Tapered drill rod

    There are two standard steel hex diameters - 22mm or 25mm. And Our tapered bit and rods come in a variety of taper angles(6 degree, 7 degree, 11 degree, 12 degree)

    SUPERDRILL tapered rods are available with high-frequency or fully carburized heat treatments.

    Taper Angle:6°,7°,11°,12°

    Socket Diameter:H19,H22,H25 MM

    Shank Dimension:83,108,159 MM

    Taper Drill rods

    Shank Style

    Rod Length

    Taper Degree

    mm

    inch

    Hex 22*108mm

    500-8000

    1′8″~ 26′2″

    6°,7°,11°,12°

    Hex 25*108mm

    500-8000

    1′8″~ 26′2″

    6°,7°,11°,12°

    Hex 25*159mm

    500-8000

    1′8″~ 26′2″

    6°,7°,11°,12°

    Order Guide:

    Shank Types + Taper Degree + Rod Length

    Advantage

    1,Apply Boring Method processing as same as internationally well-known brand

    2,Entire heat-treatment ensuring the excellent quality

    3,Accurate dimension of taper degree perfectly matches the bit

    4,Very cost-effective

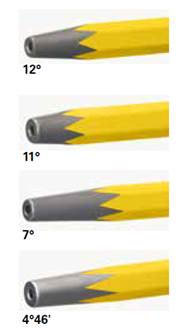

    Why There are many different Taper?

    Different taper angles are used for different rock formations and rock drills. A wide taper angle is normally used when drilling with high impact hydraulic rock drills in medium hard to hard and abrasive rock formations. Taper angles of 11°and 12° are common on modern rigs.

    A narrow taper angle of 7°is used for low impact rock drills and softer rock formations. This angle can also be used if you have spinning problems when using 11° or 12° equipment.

    In addition, a 4°46' angle is ideal for soft rock when you’re using pneumatic or hydraulic drill rigs – to prevent bits from spinning or becoming detached.

    Tapered drill rod


    For more details please watch PDF online:Tapered drill rod Catalogue
