T38 T45 T51 Rock Drill Coupling Sleeve

HomeProductsTop Hammer Drilling Tools Coupling sleevesT38 T45 T51 Rock Drill Coupling Sleeve

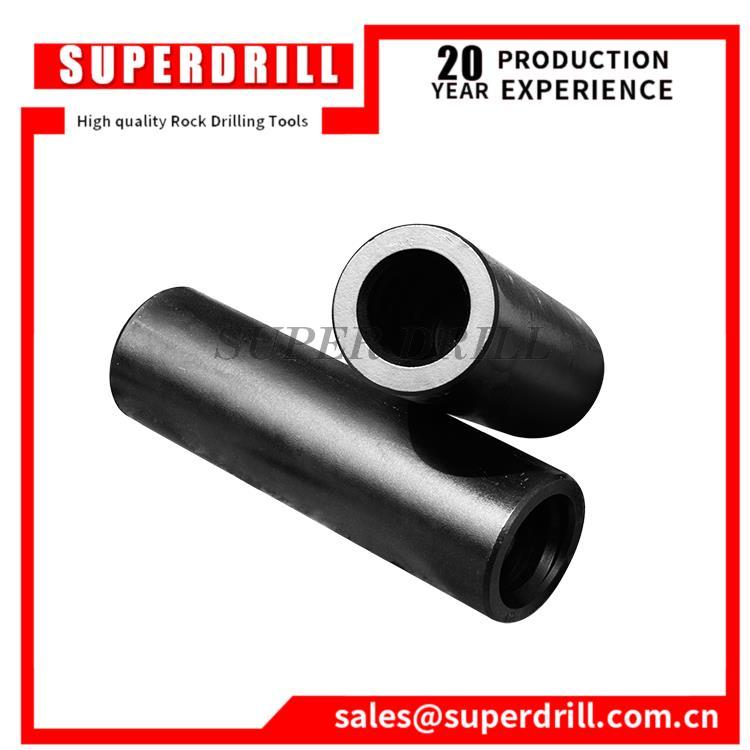

T38 T45 T51 Rock Drill Coupling Sleeve

  • Brand Name:bestlink
  • Material:High Manganese Steel
  • Use:Ore Mining
  • Category:Coupling sleeves

  • Sent E-mail Inquiry

    Description

    rrcoupling sleever

    Because of different applications, we need different lengths of drill stems, so couplings sleeves are used for connecting Extension Rods. There are semi-bridge couplings and full bridge couplings, the only difference between them is that semi-bridge couplings have a middle stop at the middle of couplings. Usually couplings two ends are the same couplings, like R25, R32,R38,T45, T51, etc .While sometime people need crossover couplings to work, for example, one end is R32 and another end is R38, but basically all couplings are female threads at the two ends.

    r

    r

    rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr
    Connection Length diameter Connection
    D1D2
    mmmm
    R2210032R22
    R3216048R32
    R3217055R32
    R2516037R25
    R3817055R38
    T3819055T38
    T4521064T45
    T5122575T51
    T3818555T38
    r

    r

    r

    r

    r

    r

    r

    r

    r

    r

    r

    r

    r

    r
