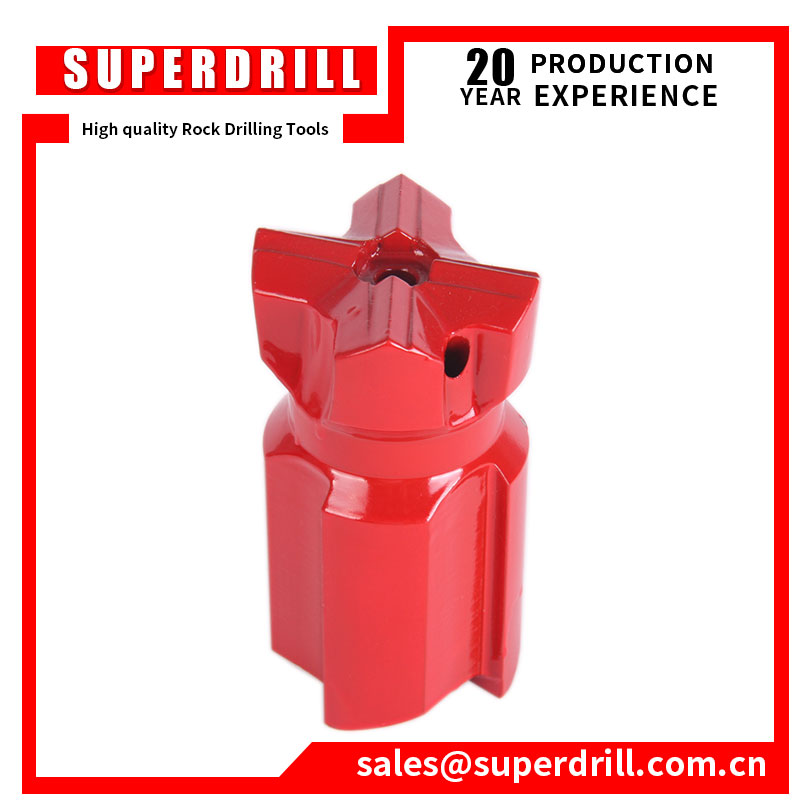

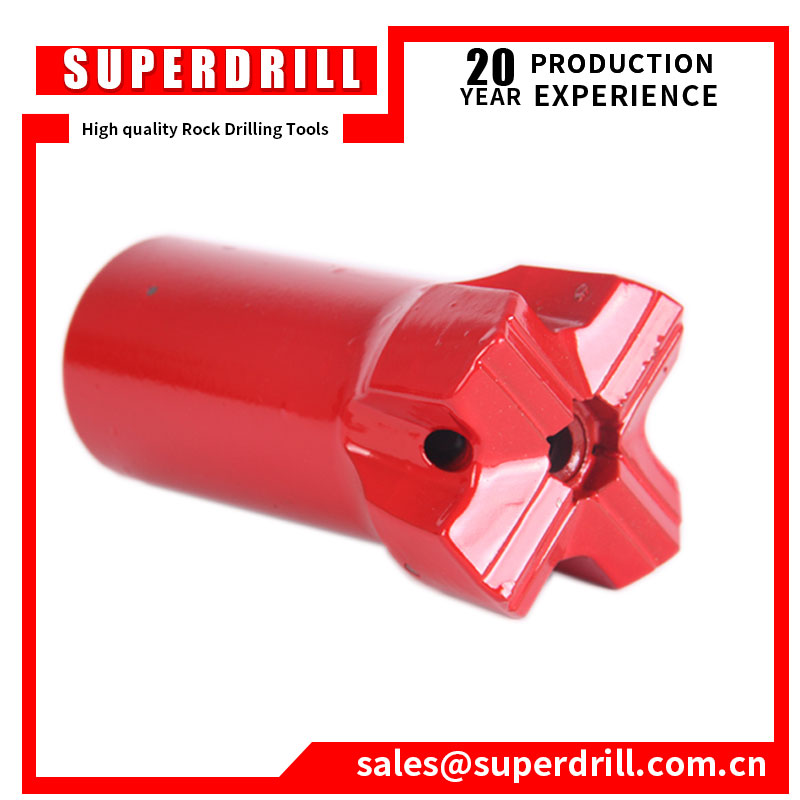

T38-102mm Thread Cross bits

Product Item：113

Thread type:R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60

Diameter:33mm-152mm

Button bit shape:Spherical and Ballistic

Face shape:Flat shape and Drop-center shape

Category：T38 Thread Button Bit

Description

T38-102mm Thread Cross bits

SUPERDRILL offers a complete selection of Top Hammer Drilling Tools to meet all of your drilling needs, which are suitable for any type of drilling application in mining, tunneling, construction and quarry work.

With the top quality of alloy steels and the best carbides, we produce all Top Hammer Drilling Tools by hot press technology and multiple heat-treated process to extend the product life for maximum wear and performance in the toughest of drilling conditions.

In the recent 20 years, Thread Button Bit series development very fast, it is accompanied by hydraulic rock drill hole quickly save industry to improve the drilling speed and drilling auxiliary worKing hours.

Our products are suitable for powerful percussive drills and top hammers with high speed drifter, such as Atlas Copco 282 rocket boomer, Atlas Copco 352 rocket boomer jumbo, AtlasCopcoD7roc, Furukawa HCR 1200, Tamrock, and Ingesoll Rand ECM660.

The products are widely used in bench and production drilling, extensional drilling.

Specification of T38 Drill Bits , kindly check below:

Thread type: T38

Head diameters: 57mm ~ 115mm

Face designs; Flat Face, Drop Center, Uni-face;

Carbide shape: Dome, Ballistic , Semi-Ballistic,

Skirt designs: Standard, retrac, straight retrac

Application: Bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

Notes:

Special sizes may be available upon request.

How to order?
Button Bit:Diameter + Thread + Skirt Shape + Face Design + Insert Configuration

Choosing The Right Carbide

The larger the volume of the Carbide, the more aggressive the Bit. The more aggressive Carbides assist movement of the chips away from the face as there is more room for airflow on the face of the Bit. These more aggressive Bits help to break out larger chips, which increases the penetration rate. The greater volume of Carbide can lead to longer Bit life.

Button Shape	Applicatio
Spherical	Spherical Carbides for use in medium to hard rock, with fractured or seamy applications.
Semi-ballistic	Semi-ballistic shaped, more aggressive than the Spherical Carbides, for soft to medium consistent rock.
Ballistic	Bullet shaped, very aggressive fast penetration in soft to medium consistent rock.
